PP 25 E - Poulan String Trimmer (2009-01) Cutting Equipment Parts Diagram

String Trimmer

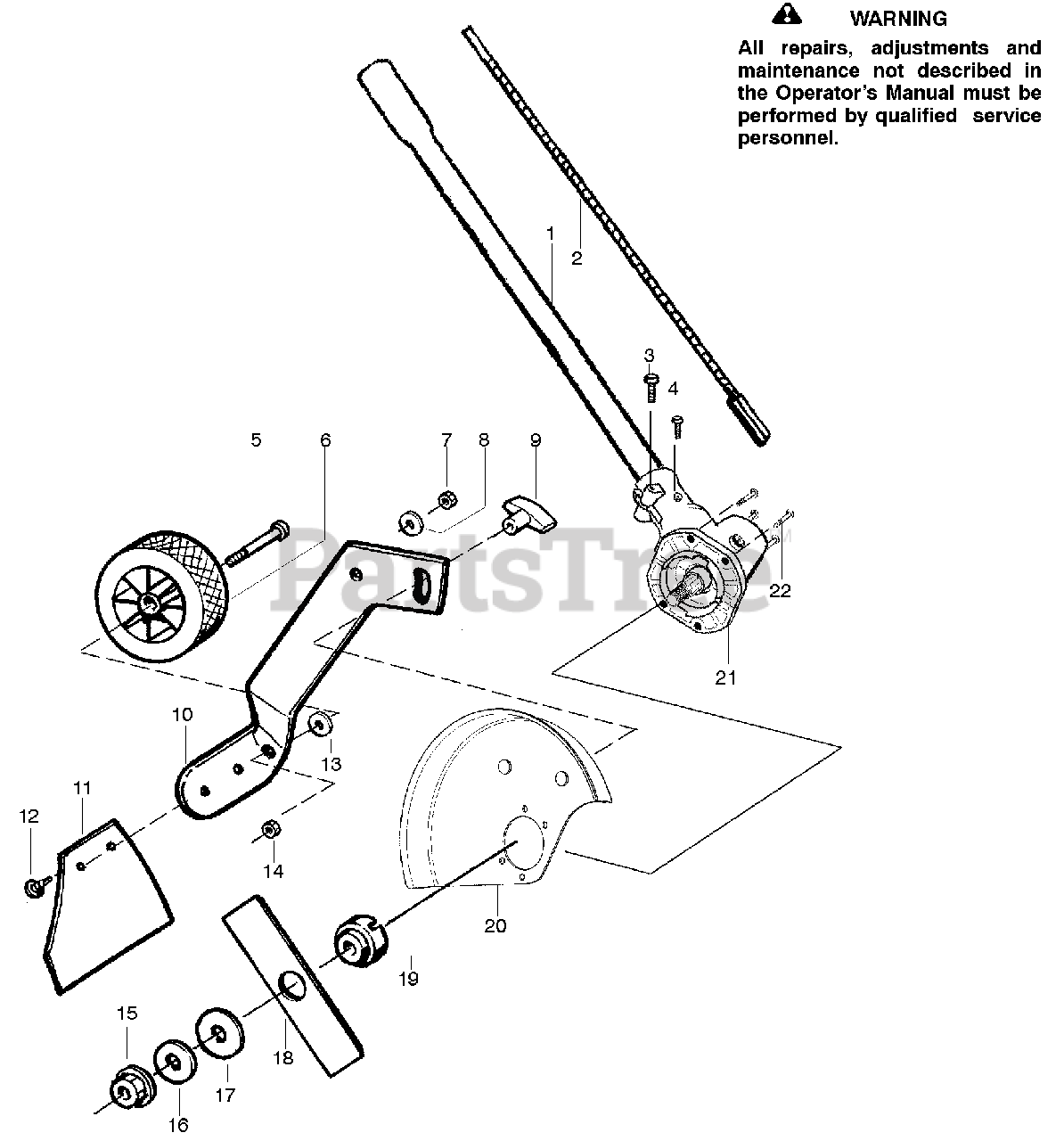

Cutting Equipment Parts Diagram

  • Title

1

Electrolux/AYP 545003364

Kit-Assy. Driveshaft

$27.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 530096183

Flexshaft-Split boom

$

$

Not available

3

Electrolux/AYP 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

4

Electrolux/AYP 530015775

Screw-Alignment

$6.49

$

In Stock, only 2 left!

0

5

Electrolux/AYP 530015981

Bolt-Shoulder Axle

$4.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 530095125

Wheel-4" (rubber)

$

$

Not available

7

Electrolux/AYP 530015515

Locknut

$4.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 530092062

Washer

$3.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 530092059

Knob

$9.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530053009

Bracket-Adj. Wheel

$13.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 530071251

Kit-Mud Flap

Note: (incl.#12)

$7.49

$

In Stock, only 1 left!

0

12

Electrolux/AYP 530053012

Fastener-Mud Flap

$3.99

$

In Stock, only 1 left!

0

13

Electrolux/AYP 530092062

Washer

$3.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 530015515

Locknut

$4.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 530015793

Nut-Flange (L.H.)

$6.49

$

In Stock, Qty 5

0

16

Electrolux/AYP 530016240

Washer-Belleville

$6.49

$

In Stock, only 1 left!

0

17

Electrolux/AYP 530015792

Washer-Flat

$5.99

$

In Stock, only 2 left!

0

18

Electrolux/AYP 952711625

Accy-7.5" Blade

$

$

Not available

19

Electrolux/AYP 530054623

Dustcup

$10.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 530071930

Kit-Edger Guard

$21.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 530071586

Kit-Gearbox

$

$

Not available

22

Electrolux/AYP 530016312

Screw

$6.49

$

In Stock, only 3 left!

0

23

Electrolux/AYP 530150031

Hanger-Attachment

Note: Not Shown

$4.99

$

In Stock, only 4 left!

0

24

Electrolux/AYP 545005908

Decal-Shaft Warning

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 545074501

Decal-Guard Warning

Note: Not Shown

$

$

Not available
