PP 25 E - Poulan Pro String Trimmer Handle & Shaft Assembly Parts Diagram

String Trimmer

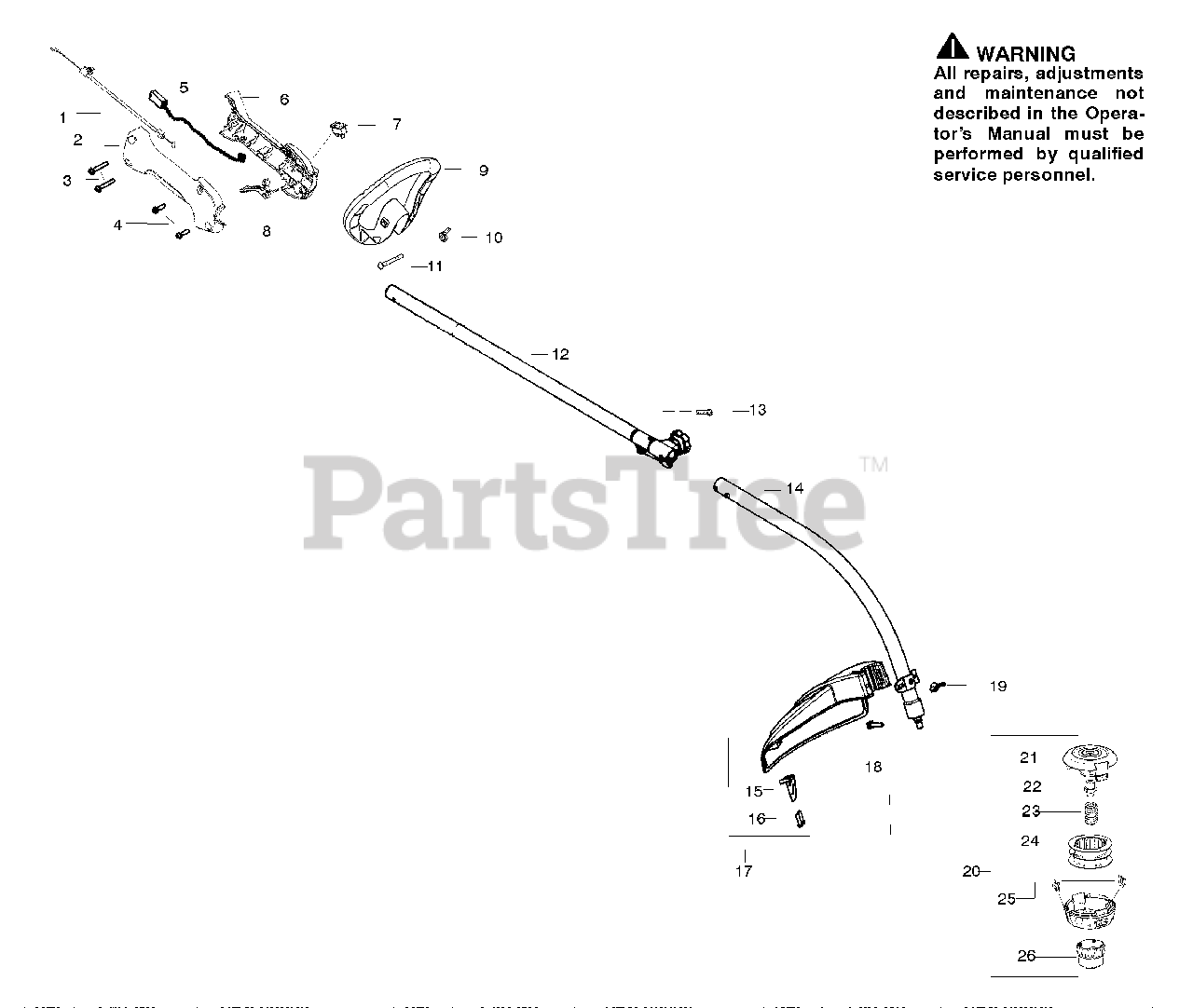

Handle & Shaft Assembly Parts Diagram

  • Title

1

Poulan 530059759

Assy-Throttle Cable

$

$

Not available

2

Poulan 530057541

Hsg.-Throttle

Note: (RH)

$12.99

$

In Stock, only 3 left!

0

3

Poulan 530016406

Screw

$6.49

$

Usually ships in 3-10 days

0

4

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 12

0

5

Poulan 530054183

Assy.-Wire

$8.99

$

In Stock, only 2 left!

0

6

Poulan 530059760

Hsg. Throttle

Note: (LH)

$9.99

$

In Stock, Qty 7

0

7

Poulan 530069572

Kit-Switch

$9.49

$

In Stock, only 2 left!

0

8

Poulan 545077601

Trigger-Throttle
(Superseded to 530049107)

$

$

Not available

9

Poulan 530058583

Assy-Handle-Assist

Note: (Incl. 10,11)

$6.99

$

Usually ships in 3-10 days

0

10

Poulan 530016152

Wingnut
(Superseded to 530401992)

$3.49

$

In Stock, Qty 19

0

11

Poulan 530015786

Bolt

$5.99

$

In Stock, only 4 left!

0

12

Poulan 530071791

Kit-Upper Shaft
(Superseded to 575260201)

Note: (Incl. flex, clamp & 13)

$39.99

$

In Stock, only 1 left!

0

13

Poulan 530016344

Screw

$6.49

$

Usually ships in 3-10 days

0

14

Poulan 530071788

Kit-Lower Shaft

$68.99

$

In Stock, only 2 left!

0

15

Poulan 530052286

Limiter-Line

$

$

Not available

16

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 12

0

17

Poulan 530071802

Kit-Shield Assy.

Note: (Incl. 15,16,18,19)

$

$

Not available

18

Poulan 530015820

Bolt

$4.99

$

In Stock, Qty 9

0

19

Poulan 530016152

Wingnut
(Superseded to 530401992)

$3.49

$

In Stock, Qty 19

0

20

Poulan 952701717

Accy-TNG7
(Superseded to 590267601)

Note: (Incl. 21, 22,23,24,25,26)

$39.99

$

In Stock, only 2 left!

0

21

Poulan 537419303

Housing

$11.99

$

Usually ships in 3-10 days

0

22

Poulan 537419901

Adapter

$17.99

$

In Stock, only 4 left!

0

23

Poulan 537338801

Spring

$6.49

$

In Stock, Qty 11

0

24

Poulan 545080801

Assy-Wound Spool

$

$

Not available

25

Poulan 545003365

Kit-Cover and Eyelet

$9.49

$

In Stock, Qty 8

0

26

Poulan 537419601

Knob

$6.99

$

In Stock, Qty 20+

0

Poulan 545186849

Operator Manual

Note: Not Shown

$

$

Not available

Poulan 545209101

Decal-Shaft Warning

Note: Not Shown

$

$

Not available

Poulan 545167703

Decal-Upper Shaft

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0
