PP 25 CFA (967185601) - Poulan Pro String Trimmer (2013-07) ENGINE Parts Diagram

String Trimmer

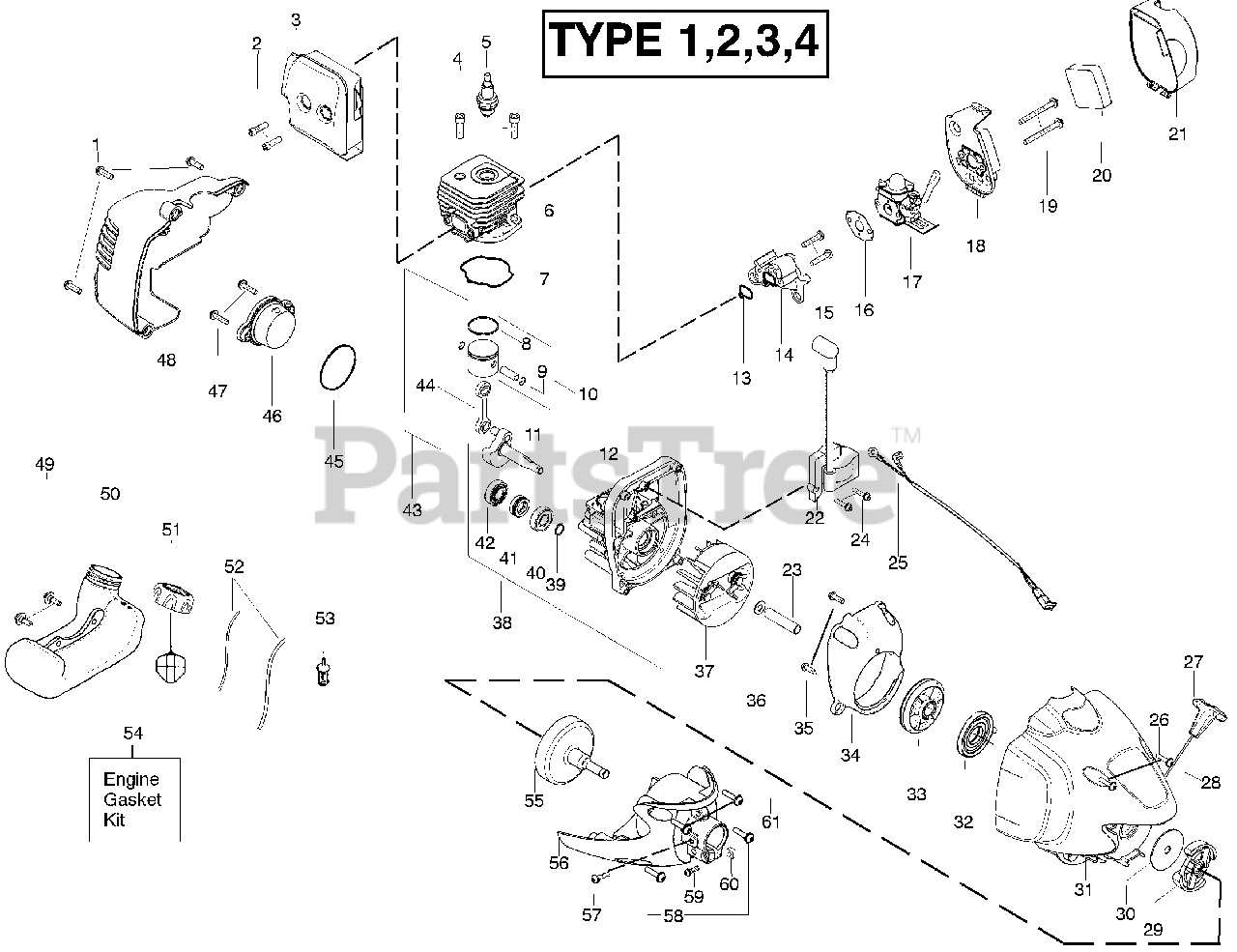

ENGINE Parts Diagram

  • Title

$4.99

$

In Stock, Qty 8

0

2

Poulan 530058982

BOLT MUFFLER

$4.99

$

In Stock, Qty 7

0

3

Poulan 545227901

ASSY MUFFLER SHIELD

Note: INCL 2

$43.99

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, Qty 7

0

5

Poulan 952030249

PLUG-SPARK (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

6

Poulan 530012541

CYLINDER MACHINED 25CC LO

$31.99

$

In Stock, only 1 left!

0

7

Poulan 000000000

Note: ref 54

$

$

Not available

8

Poulan 545154001

RING PISTON

$4.99

$

In Stock, only 2 left!

0

9

Poulan 530015162

WRIST PIN RET.

$6.49

$

In Stock, only 1 left!

0

10

Poulan 530071833

PISTON KIT

Note: INCL 8 9

$37.99

$

Usually ships in 3-10 days

0

11

Poulan 530012579

ASSY CRANKSHAFT
(Superseded to 545145802)

$28.99

$

Usually ships in 3-10 days

0

12

Poulan 530012582

ASSY CRANKCASE

$37.99

$

Usually ships in 3-10 days

0

13

Poulan 000000000

Note: ref 54

$

$

Not available

14

Poulan 530057547

ADAPTOR CARBURETOR

$10.99

$

Usually ships in 3-10 days

0

15

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 000000000

Note: ref 54

$

$

Not available

17

Poulan 530071811

KIT CARB ASSY

$50.99

$

Usually ships in 3-10 days

0

18

Poulan 545077501

BASE AIR BOX PP GOLD

$9.49

$

In Stock, only 1 left!

0

19

$4.99

$

In Stock, only 1 left!

0

20

Poulan 530036575

AIR FILTER

$5.99

$

In Stock, only 2 left!

0

21

Poulan 530057545

COVER AIR BOX FE

$6.99

$

In Stock, only 4 left!

0

22

Poulan 530039229

%MODULE IGNITION
(Superseded to 501092801)

$24.99

$

Usually ships in 3-10 days

0

23

Poulan 530059758

SPACER FLYWHEEL

$5.99

$

Usually ships in 3-10 days

0

24

$6.49

$

In Stock, only 4 left!

0

25

Poulan 530047278

LEAD WIRE ASSEMBLY

$10.99

$

In Stock, only 1 left!

0

26

$8.99

$

In Stock, only 1 left!

0

27

Poulan 530054834

HANDLE STARTER BLK

$4.99

$

In Stock, only 1 left!

0

28

Poulan 545050409

KIT ROPE

$7.49

$

In Stock, only 3 left!

0

29

Poulan 530055122

ASSEMBLY CLUTCH

$20.99

$

In Stock, Qty 5

0

30

Poulan 530094189

WASHER-CLUTCH

$6.99

$

In Stock, only 1 left!

0

$

$

Currently unavailable

32

Poulan 545054901

SPRING STARTER SA
(Superseded to 545008014)

$10.99

$

In Stock, only 1 left!

0

33

Poulan 545050407

KIT STARTER PULLEY

$13.99

$

In Stock, only 3 left!

0

34

Poulan 545080601

BAFFLE FAN

$9.99

$

In Stock, only 1 left!

0

35

$4.99

$

In Stock, Qty 8

0

36

Poulan 530016463

WASHER CLUTCH

$6.99

$

In Stock, only 3 left!

0

37

Poulan 530039243

ASSY FLYWHEEL
(Superseded to 577235901)

$14.99

$

In Stock, only 1 left!

0

38

Poulan 530071951

ASSY CRANKCASE & CRANKSHAFT
(Superseded to 545102101)

Note: INCL 11 12 39

$22.35

$

Usually ships in 3-10 days

0

39

Poulan 530015941

RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

40

Poulan 530055728

OUTER BEARING

$9.99

$

Usually ships in 3-10 days

0

$7.49

$

In Stock, only 1 left!

0

42

Poulan 530032125

BEARING
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

43

Poulan 530071785

PISTON KIT

Note: INCL 10 44

$47.99

$

Usually ships in 3-10 days

0

44

Poulan 530049817

CONNECTING ROD ASSY

$13.99

$

Usually ships in 3-10 days

0

45

Poulan 000000000

Note: REF 46 54

$

$

Not available

46

Poulan 530057954

ASSY REAR PLUG

Note: INCL 45

$5.99

$

In Stock, only 1 left!

0

47

$8.99

$

In Stock, only 1 left!

0

48

Poulan 530057539

SHROUD REAR BLACK

$13.99

$

Usually ships in 3-10 days

0

49

Poulan 530016445

SCREW FUEL TANK RETAINER

$6.49

$

Usually ships in 3-10 days

0

$

$

Not available

51

Poulan 578931603

FUEL CAP ASSY
(Superseded to 578931604)

$8.99

$

In Stock, only 2 left!

0

52

Poulan 581900801

KIT LINE FUEL LOW PERM .188

$

$

Not available

53

Poulan 577167201

Pre-Flushed Fuel Pick-up Assembly

$7.99

$

Usually ships in 3-10 days

0

54

Poulan 530071750

KIT GASKET 25CC

Note: INCL 7 13 16 45

$

$

Not available

55

Poulan 530150247

ASSY CLUTCH DRUM W/ADPT

$28.99

$

Usually ships in 3-10 days

0

56

Poulan 545077301

ASSY CLUTCH COVER

Note: INCL 59 60

$20.99

$

Usually ships in 3-10 days

0

57

$5.99

$

In Stock, Qty 10

0

58

Poulan 530015772

SCREW-10-24 X 1" (TAP.)

$3.99

$

In Stock, only 2 left!

0

59

Poulan 530016381

SCREW 12-24 X 5/8

$3.49

$

Usually ships in 3-10 days

0

60

Poulan 530016382

NUT SQUARE 12-24

$6.99

$

Usually ships in 3-10 days

0

61

$6.49

$

In Stock, Qty 16

0
