PP 24KA54 (960420193-00) - Poulan Lawn Tractor (2016-05) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

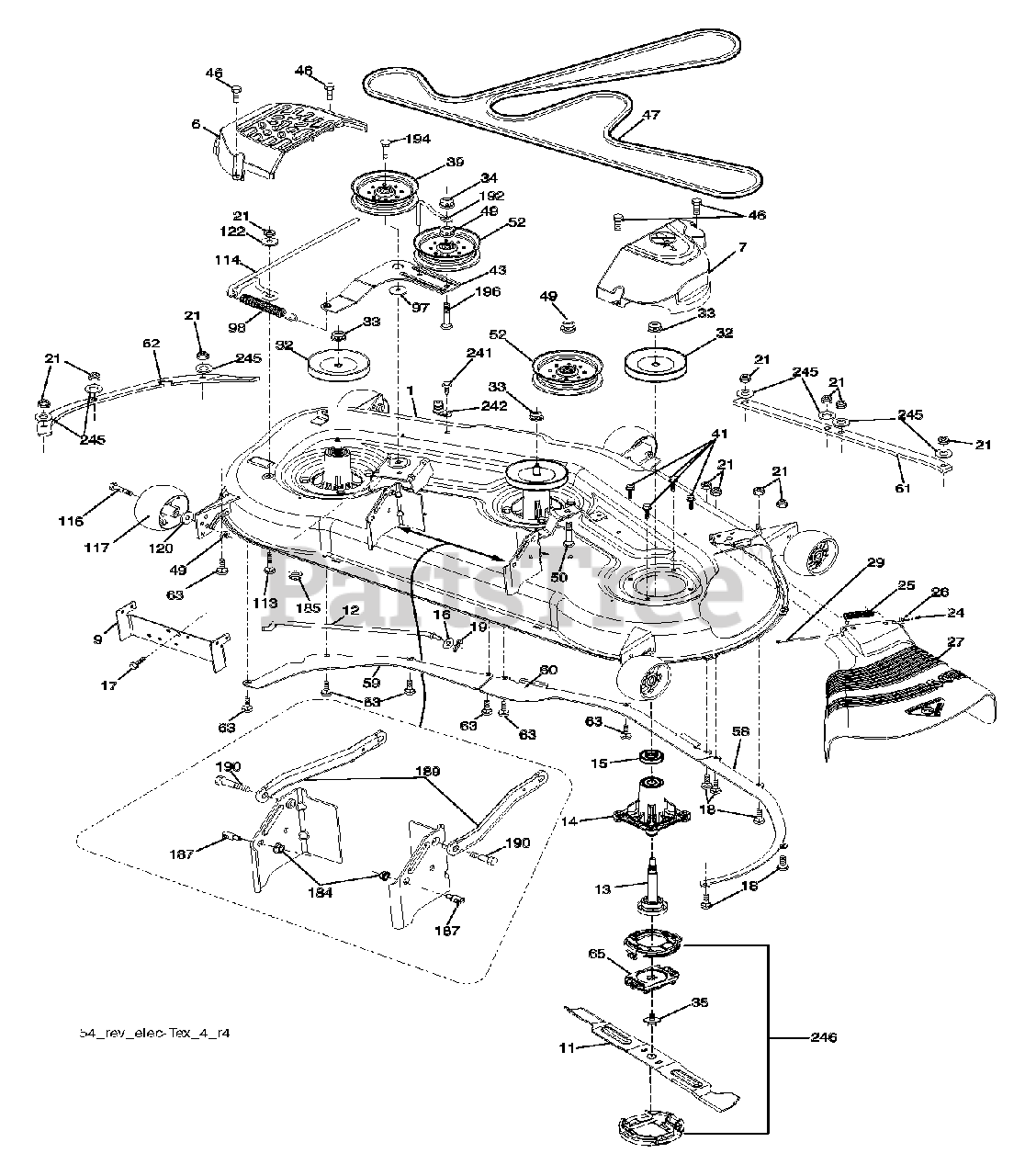

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Poulan 587834801

DECK.SVC.54"
(Superseded to 532199198)

$626.99

$

Usually ships in 3-10 days

0

6

Poulan 532196066

COVER.MANDREL.LH.54"20

$34.99

$

In Stock, only 1 left!

0

7

Poulan 532197181

COVER.MANDREL.RH.54.20

$47.99

$

In Stock, only 1 left!

0

9

Poulan 583970702

TORQUE STRAP PNT BLACK
(Superseded to 589333402)

$26.99

$

Usually ships in 3-10 days

0

11

Poulan 581101101

Mower Blade, 54" Bagging

$28.99

$

In Stock, Qty 5

0

12

Poulan 532404851

ROD.ANTI.SWAY.48/54"K4

$26.99

$

In Stock, only 2 left!

0

13

Poulan 580862101

(Superseded to 587126105)

$53.99

$

In Stock, Qty 18

0

14

Poulan 581204301

Mandrel Housing, Rev Tall GRSBL
(Superseded to 580862601)

$44.99

$

Usually ships in 3-10 days

0

15

Poulan 585323901

Extended Mandrel Bearing, Top

$14.99

$

In Stock, only 2 left!

0

16

Poulan 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

17

Poulan 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

18

Poulan 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Poulan 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

24

Poulan 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Poulan 532178102

SPRING, TORSION
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

26

Poulan 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 532188938

(Superseded to 532187257)

$80.99

$

In Stock, Qty 8

0

29

Poulan 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

32

Poulan 532153535

PULLEY/MANDREL
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Poulan 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

34

Poulan 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

35

Poulan 584309301

Screw, 7/16 X 20 X 1"

$3.99

$

In Stock, only 2 left!

0

39

Poulan 532197380

PULLEY.IDLER.4.50/HUB SPECIAL
(Superseded to 532196104)

$43.99

$

In Stock, Qty 14

0

41

Poulan 584953901

Hex Washer Head Bolt, .313-18 X 1.19

$4.99

$

In Stock, Qty 16

0

43

Poulan 532196065

ARM.IDLER

$15.99

$

Usually ships in 3-10 days

0

46

Poulan 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

47

Poulan 587686701

Deck Drive Belt, 54"

$62.99

$

In Stock, Qty 6

0

49

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

50

Poulan 872110616

BOLT
(Superseded to 596136301)

$3.99

$

Usually ships in 3-10 days

0

52

Poulan 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$39.99

$

In Stock, Qty 14

0

58

Poulan 532187342

BAFFLE.RIGHT.54"

$12.99

$

Usually ships in 3-10 days

0

59

Poulan 532187344

BAFFLE.LEFT.54"

$

$

Not available

60

Poulan 532187607

BAFFLE CENTER 54" MOWER

$22.99

$

In Stock, only 1 left!

0

61

Poulan 585322605

Front Bolt Reinforcement Plate, 54" X 431

$20.99

$

In Stock, only 1 left!

0

62

Poulan 585322805

Side Bolt Reinforcement Plate, 54" X 431

$

$

Not available

63

Poulan 872110510

BOLT.CARRIAGE.5/16-18

$7.49

$

In Stock, Qty 20+

0

65

Poulan 580954003

Blade Holder, Revolution

$205.99

$

In Stock, Qty 5

0

97

Poulan 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

98

Poulan 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 7

0

113

Poulan 872110508

BOLT CRT

$4.99

$

Usually ships in 3-10 days

0

114

Poulan 532187556

ROD TENSION RELIEF

$24.99

$

In Stock, only 1 left!

0

116

Poulan 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Poulan 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

120

Poulan 819132012

WASHER

$1.99

$

Usually ships in 3-10 days

0

122

Poulan 532187557

BUSHING.RELIEF.TENSION

$9.49

$

In Stock, only 1 left!

0

184

Poulan 739005000

$

$

Currently unavailable

185

Poulan 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 12

0

187

Poulan 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

189

Poulan 532195185

ARM.SUSPENSION.MOWER

$18.99

$

Usually ships in 3-10 days

0

190

Poulan 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

192

Poulan 532198468

KEEPER.BELT.IDLER.54"T

$17.99

$

Usually ships in 3-10 days

0

194

Poulan 874490736

BOLT.HEX.WASHER.HEAD.7/16-24X

$13.99

$

In Stock, only 4 left!

0

196

Poulan 872140620

BOLT
(Superseded to 596337801)

$5.99

$

In Stock, Qty 11

0

241

Poulan 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 2 left!

0

242

Poulan 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 17

0

245

Poulan 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

246

Poulan 586638501

Revolution Assembly Cap, Upper

$34.99

$

In Stock, only 2 left!

0

--

Poulan 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 6

0

--

Poulan 587126103

MANDREL.INT.SPACER.GRSABLE.REV
(Superseded to 587126108)

$44.99

$

Usually ships in 3-10 days

0

--

Poulan 586448901

DECK.ASM SVC.54B.E.HDHP.5GW.TX

$1709.99

$

Usually ships in 3-10 days

0
