PP 24H50A - Poulan Pro Lawn Tractor Wheels & Tires Parts Diagram

Lawn Tractor

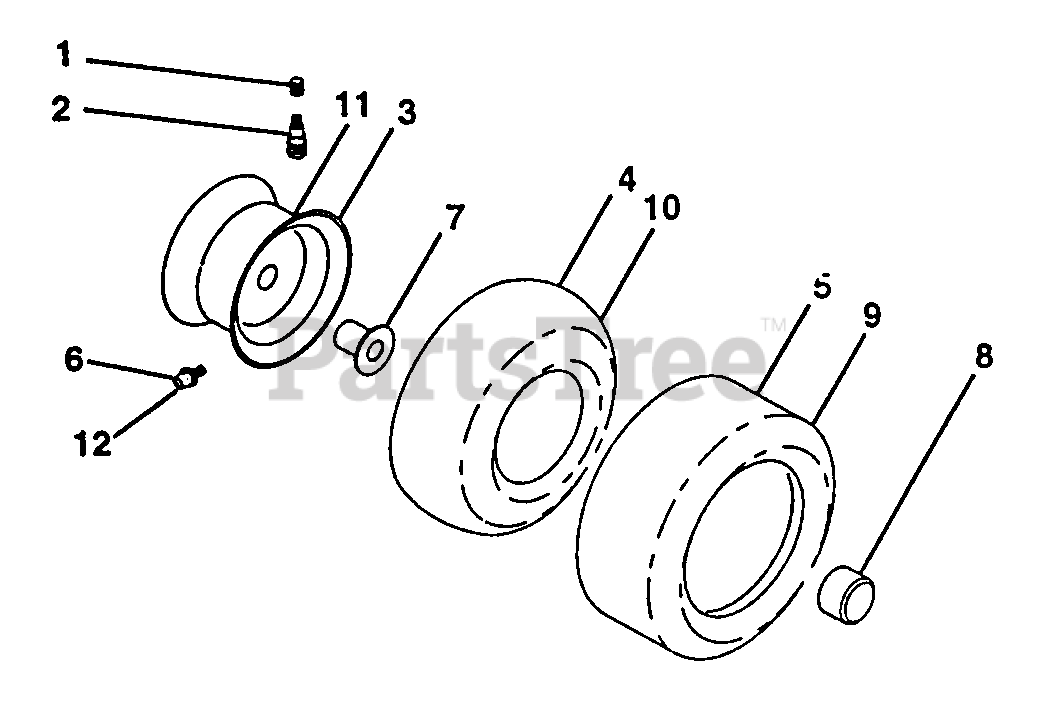

Wheels & Tires Parts Diagram

  • Title

1

Poulan 59192

Cap, Valve, Tire
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

2

Poulan 65139

Stem, Valve
(Superseded to 532065139)

$9.99

$

In Stock, only 1 left!

0

3

Poulan 106228X417

Rim Assembly, Front
(Superseded to 532148736)

$157.99

$

In Stock, only 2 left!

0

4

Poulan 8134H

Tube, Front
(Superseded to 532008134)

Note: (Service Item Only)

$66.99

$

Usually ships in 3-10 days

0

5

Poulan 106230X

Tire, Front (AYP part number)

$

$

Not available

6

Poulan 278H

Fitting, Grease
(Superseded to 532000278)

$6.99

$

Usually ships in 3-10 days

0

7

Poulan 9040H

Bearing, Flange
(Superseded to 532009040)

Note: (Front Wheel Only)

$7.99

$

In Stock, Qty 20+

0

8

Poulan 104757X

Cap, Hub (AYP part number)
(Superseded to 532104757)

$4.99

$

In Stock, Qty 20+

0

9

Poulan 105588X

Tire, Rear (AYP part number)

$

$

Not available

10

Poulan 7154J

Tube, Rear
(Superseded to 532007154)

Note: (Service Item Only)

$80.99

$

Usually ships in 3-10 days

0

11

Poulan 106277X417

Rim Assembly, Rear
(Superseded to 532106277)

$227.99

$

Usually ships in 3-10 days

0

12

Poulan 6856M

Fitting, Grease
(Superseded to 532124860)

$6.99

$

In Stock, only 2 left!

0

Poulan 144334

Sealant, Tire
(Superseded to 532144334)

Note: (10 oz. Tube)

$

$

Not available
