PP 24H50A - Poulan Pro Lawn Tractor Mower Deck Parts Diagram

Lawn Tractor

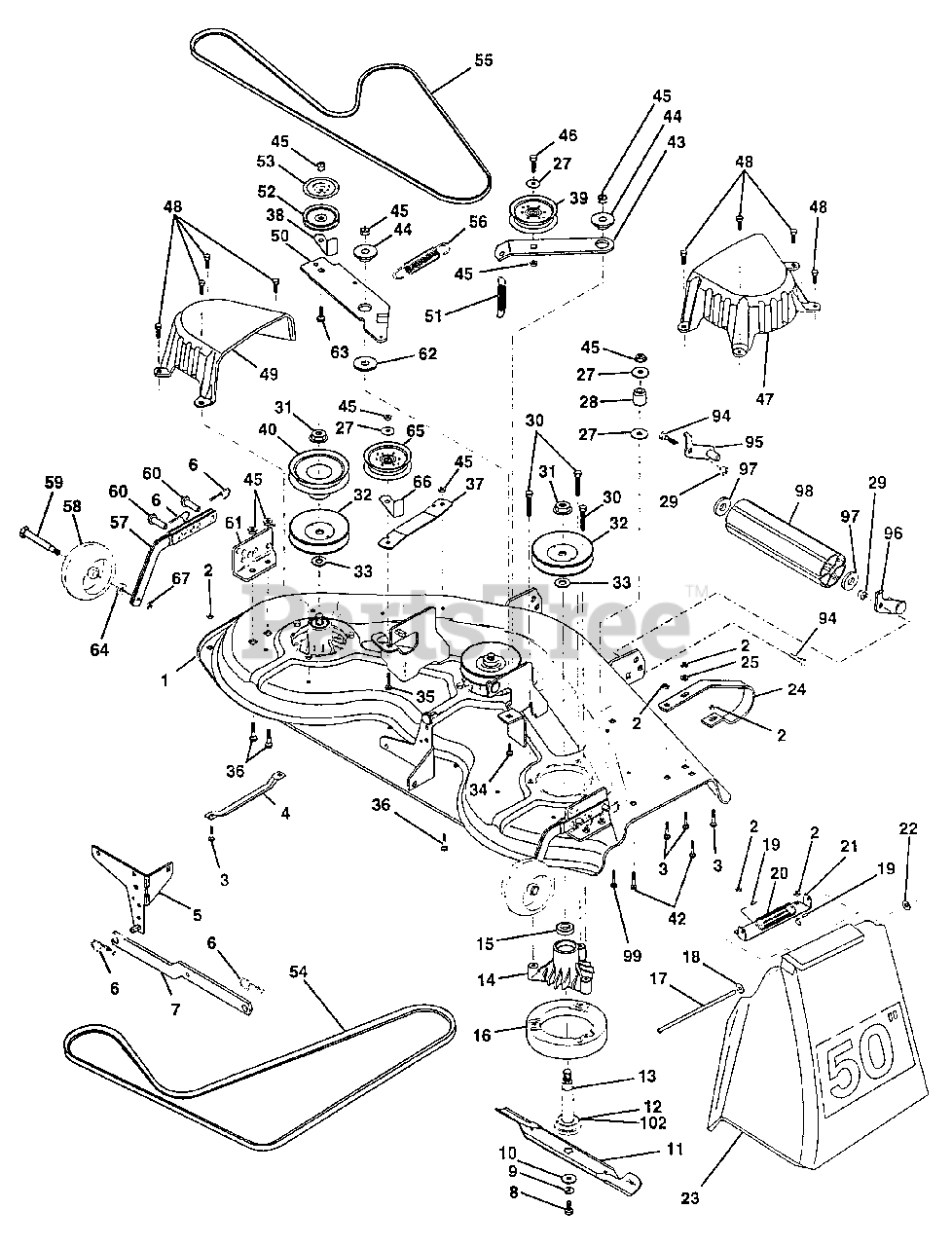

Mower Deck Parts Diagram

  • Title

1

Poulan 156990

Deck Asm., Mower 50" Vented (AYP part number)
(Superseded to 532185382)

$

$

Not available

2

Poulan 73680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

3

Poulan 72110506

Bolt, Carriage 5/16-18 x 3/4

$7.49

$

In Stock, Qty 20+

0

4

Poulan 7631J

Runner, Mower LH
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

5

Poulan 138457

Bracket Asm., Sway Bar

$11.99

$

Usually ships in 3-10 days

0

6

Poulan 4939M

Retainer, Spring (AYP part number)

$

$

Not available

7

Poulan 130832

Arm Suspension, Rear (AYP part number)

$

$

Not available

8

Poulan 850857

Bolt 3/8-24 x 1.25 Gr. 8 Patched
(Superseded to 532850857)

$4.99

$

In Stock, only 1 left!

0

9

Poulan 10030600

Washer, Lock Hvy 3/8 Unplated (AYP part number)

$

$

Not available

10

Poulan 140296

Washer, Hard Blade Mower Vented
(Superseded to 532140296)

$6.99

$

In Stock, only 2 left!

0

11

Poulan 137380

Blade
(Superseded to 532137380)

Note: (3 Required)

$22.99

$

In Stock, only 3 left!

0

12

Poulan 129895

Bearing, Ball #6204 (Mandrel)
(Superseded to 532129895)

$17.99

$

In Stock, only 2 left!

0

13

Poulan 137553

Shaft Asm., W/Lower Brg
(Superseded to 532137553)

Note: (Includes Key No. 12)

$37.99

$

In Stock, only 1 left!

0

14

Poulan 137152

Housing, Mandrel 50" Vent
(Superseded to 532137152)

$40.99

$

In Stock, only 1 left!

0

15

Poulan 110485X

Bearing, Ball Mandrel
(Superseded to 532110485)

$13.99

$

In Stock, Qty 11

0

16

Poulan 140329

Stripper, Mower Vented (AYP part number)
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

17

Poulan 106735X

Rod, Hinge
(Superseded to 532106735)

$10.99

$

In Stock, only 1 left!

0

18

Poulan 19111016

Washer 11/32 x 5/8 x 16 Ga.
(Superseded to 819111016)

$3.99

$

In Stock, Qty 20+

0

19

Poulan 105304X

Spring, Torsion Deflector
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

20

Poulan 123713X

Spring, Torsion Deflector
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

21

Poulan 137607

Bracket, Deflector
(Superseded to 532137607)

$6.49

$

In Stock, only 2 left!

0

22

Poulan 110452X

Nut, Push
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 110509X

Shield, Deflector Mower
(Superseded to 532110509)

$

$

Not available

24

Poulan 136320

Runner, RH
(Superseded to 532136320)

$

$

Not available

25

Poulan 19111216

Washer 11/32 x 3/4 x 16 Ga.

$0.99

$

Usually ships in 3-10 days

0

27

Poulan 19131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

28

Poulan 132823

Spacer, Spring Stop Idler (AYP part number)

$

$

Not available

29

Poulan 73800600

Nut, Lock Hex W/Wsh 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

30

Poulan 157722

Screw Thd Rolling Washer Head (AYP part number)
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Poulan 137266

Nut, Flg Top Lock Cntr 9/16
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

32

Poulan 153535

Pulley, Mandrel (AYP part number)
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Poulan 129963

Washer, Spacer Mower Vented (AYP part number)
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

34

Poulan 72140610

Bolt, Carriage 3/8-16 x 1-1/4
(Superseded to 595901101)

$4.99

$

Usually ships in 3-10 days

0

35

Poulan 72110616

Bolt, Carriage 3/8-16 x 2
(Superseded to 872110616)

$3.99

$

Usually ships in 3-10 days

0

36

Poulan 72110608

Bolt, Carriage 3/8-16 x 1 Gr. 5
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 137166

Stiffener, Arm Idler
(Superseded to 532137166)

$6.49

$

Usually ships in 3-10 days

0

38

Poulan 156085

Keeper, Belt Idler (AYP part number)
(Superseded to 597024901)

$4.99

$

Usually ships in 3-10 days

0

39

Poulan 131494

Pulley, Idler Flat (AYP part number)
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

40

Poulan 136572

Pulley, Driven
(Superseded to 532136572)

$

$

Not available

42

Poulan 72140506

Bolt, Carriage 5/16-18 Unc x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

43

Poulan 136460

Arm, Idler Secondary
(Superseded to 532136460)

$

$

Not available

44

Poulan 122052X

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

45

Poulan 73680600

Nut, Crownlock 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

46

Poulan 74760628

Bolt, Fin Hex 3/8-16 Unc x 1-3/4

$2.99

$

Usually ships in 3-10 days

0

47

Poulan 137200

Cover, Mandrel RH
(Superseded to 532137200)

$

$

Not available

48

Poulan 137729

Screw, Thd Roll 1/4-20 x 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 19

0

49

Poulan 136574

Cover, Mandrel LH
(Superseded to 532136574)

$

$

Not available

50

Poulan 137272

Arm, Idler Primary
(Superseded to 532137272)

$6.49

$

Usually ships in 3-10 days

0

51

Poulan 137273

Spring, Secondary
(Superseded to 532137273)

$7.99

$

In Stock, Qty 5

0

52

Poulan 139245

Pulley, Idler V Groove
(Superseded to 532139245)

$37.99

$

In Stock, only 1 left!

0

53

Poulan 137789

Shield, Idler
(Superseded to 532137789)

$

$

Not available

54

Poulan 139573

V-Belt, Mower Primary
(Superseded to 532139573)

$51.99

$

In Stock, only 1 left!

0

55

Poulan 144959

V-Belt, Mower Secondary
(Superseded to 532144959)

$43.99

$

In Stock, Qty 20+

0

56

Poulan 138687

Spring, Primary
(Superseded to 532138687)

$

$

Not available

57

Poulan 136577

Bar Asm., Wheel Gauge
(Superseded to 532136577)

$

$

Not available

58

Poulan 133957

Wheel, Gauge
(Superseded to 532133957)

$13.99

$

In Stock, Qty 18

0

59

Poulan 137644

Bolt, Shoulder (AYP part number)
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

60

Poulan 139031

Pin, Clevis
(Superseded to 532139031)

$6.49

$

Usually ships in 3-10 days

0

61

Poulan 136573

Bracket, Wheel Gauge
(Superseded to 532136573)

$6.49

$

Usually ships in 3-10 days

0

62

Poulan 133943

Washer Hardened (AYP part number)
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

63

Poulan 72110612

Bolt Carriage 3/8-16 x 1-1/2
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0

64

Poulan 19121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

65

Poulan 151831

Pulley Idler Flat Mower (AYP part number)
(Superseded to 532173981)

$44.99

$

In Stock, only 1 left!

0

66

Poulan 156009

Keeper, Belt Idler 50" Vent
(Superseded to 532156009)

$7.49

$

In Stock, only 1 left!

0

67

Poulan 73930600

Nut, Center Lock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

94

Poulan 74760616

Bolt H 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

95

Poulan 132274

Bracket, Asm. Noseroller LH (AYP part number)
(Superseded to 532175746)

$9.49

$

In Stock, Qty 6

0

96

Poulan 132273

Bracket, Asm. Noseroller RH (AYP part number)
(Superseded to 532175747)

$10.99

$

Usually ships in 3-10 days

0

97

Poulan 19171416

Washer 17/32 x 7/8 x 16 Ga.
(Superseded to 819171416)

$4.99

$

In Stock, Qty 8

0

98

Poulan 132264

Roller, Nose (AYP part number)

$

$

Not available

99

Poulan 72110614

Bolt, Carriage 3/8-16 x 1-3/4 Gr. 5
(Superseded to 872110614)

$4.99

$

In Stock, only 1 left!

0

102

Poulan 153390

Washer Felt
(Superseded to 532153390)

$6.49

$

In Stock, only 3 left!

0

Poulan 143651

Mandrel Asm
(Superseded to 532143651)

Note: (Includes Key Nos. 8-10, 12-15, 31 and 33)

$102.99

$

In Stock, only 4 left!

0

Poulan 158330

Mower Asm Service (AYP part number)
(Superseded to 532181689)

Note: (Std. Deck - Order separately all Nose Roller and all Gauge Wheel components)

$1092.99

$

Usually ships in 3-10 days

0
