PP 24H50A - Poulan Pro Lawn Tractor Chassis And Enclosures Parts Diagram

Lawn Tractor

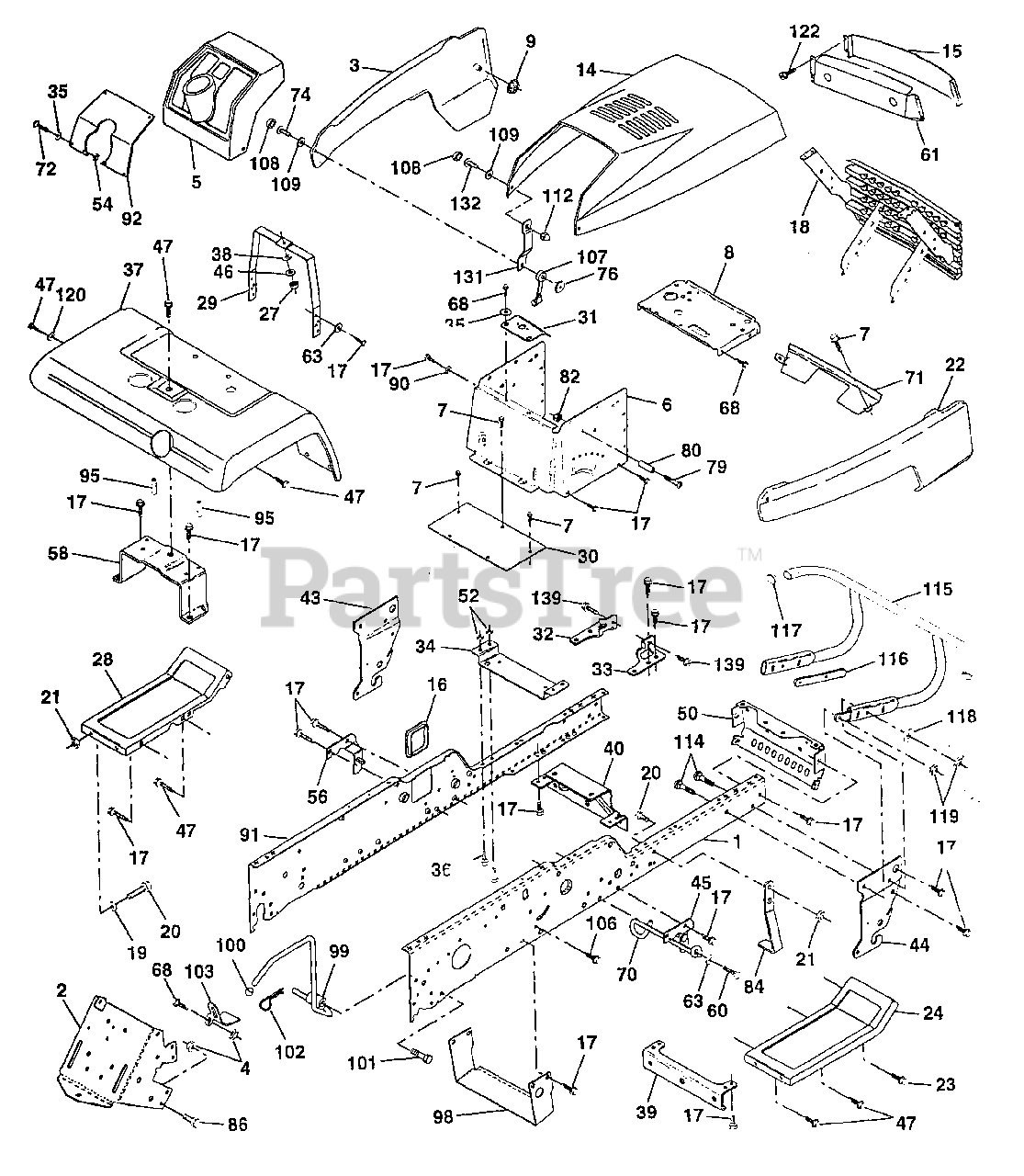

Chassis And Enclosures Parts Diagram

  • Title
1

Poulan 150253

Rail, Frame RH (AYP part number)
(Superseded to 532180375)

$56.99

$

Usually ships in 3-10 days

0

2

Poulan 140506

Drawbar, Gt (AYP part number)
(Superseded to 175282)

$

$

Not available

3

Poulan 150302X428

Panel Asm., Side LH

$

$

Not available

4

Poulan 73800700

Nut, Lock Hex 7/16 Unc
(Superseded to 873800700)

$4.99

$

Usually ships in 3-10 days

0

5

Poulan 140398

Dash, Plastic Black
(Superseded to 584445901)

$21.99

$

Usually ships in 3-10 days

0

6

Poulan 157882

Dash, 1PCS, Lower

$

$

Not available

7

Poulan 17720408

Screw, Thd Cut 1/4-20 x 1/2
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

8

Poulan 145166

Support, Battery (AYP part number)

$

$

Not available

9

Poulan 108067X

Nut, Pal

$

$

Not available

14

Poulan 150301X428

Hood Asm., Pnt

$

$

Not available

15

Poulan 146459

Lens, Headlight Bar
(Superseded to 582966101)

$

$

Not available

16

Poulan 121794X

Cover, Access

$

$

Not available

17

Poulan 17490612

Screw, Thdrol 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

18

Poulan 150198

Grille

$

$

Not available

19

Poulan 19131312

Washer 13/32 x 13/16 x 12Ga
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

20

Poulan 74760616

Bolt, Fin Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

21

Poulan 73680600

Nut, Crownlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

22

Poulan 150303X428

Panel Asm., Side RH (AYP part number)
(Superseded to 167237X428)

$

$

Not available

23

Poulan 17490616

Screw Thdrol 3/8-16 x 1
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0

24

Poulan 145243X505

Footrest, RH (AYP part number)
(Superseded to 532181193)

$

$

Not available

27

Poulan 73220400

Nut, Fin Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

28

Poulan 145244X505

Footrest, LH (AYP part number)
(Superseded to 532181164)

$43.99

$

Usually ships in 3-10 days

0

29

Poulan 145205

Bracket, Support Dash

$6.99

$

Usually ships in 3-10 days

0

30

Poulan 145052

Saddle

$3.49

$

Usually ships in 3-10 days

0

31

Poulan 161419

Bracket Supt 1-pc Vgt Steering

$3.99

$

Usually ships in 3-10 days

0

32

Poulan 161327

Bracket Asm., Frame Pivot Lh
(Superseded to 532161327)

$7.49

$

In Stock, only 4 left!

0

33

Poulan 161326

Bracket Asm., Frame Pivot Rh
(Superseded to 532161326)

$6.49

$

In Stock, only 1 left!

0

34

Poulan 142131

Bracket, Engine Support Rear
(Superseded to 532142131)

$6.49

$

Usually ships in 3-10 days

0

35

Poulan 19111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

36

Poulan 74780512

Bolt, Fin Hex 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

37

Poulan 140002X505

Fender, Pnt.
(Superseded to 167270X505)

$91.99

$

Usually ships in 3-10 days

0

38

Poulan 10040400

Washer, Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

39

Poulan 136961

Bracket, Axle Front (AYP part number)
(Superseded to 532175278)

$

$

Not available

40

Poulan 156111

Bracket, Support Axle/Engine
(Superseded to 532156111)

$9.49

$

Usually ships in 3-10 days

0

43

Poulan 136939

Bracket, Spnsn Front Lh
(Superseded to 532136939)

$

$

Not available

44

Poulan 136940

Bracket, Spnsn Front Rh
(Superseded to 532136940)

$

$

Not available

45

Poulan 154913

Bracket Asm., Susp Chassis Rh
(Superseded to 532154913)

$

$

Not available

46

Poulan 19091216

Washer 9/32 x 3/4 x 16 Ga.
(Superseded to 819091216)

$4.99

$

Usually ships in 3-10 days

0

47

Poulan 17490608

Screw Thdrol 3/8-16 x 1/2
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

50

Poulan 152728

Bracket, Chassis Front

$

$

Not available

52

Poulan 73680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

54

Poulan 73510500

Nut 5/16-18

$2.99

$

Usually ships in 3-10 days

0

56

Poulan 154914

Bracket Asm., Susp Chassis Lh
(Superseded to 532154914)

$

$

Not available

58

Poulan 137113

Bracket Asm., Fender
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

60

Poulan 17490620

Screw Thdrol 3/8-16 x 1-1/4
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

61

Poulan 147717X417

Beze. Asem.
(Superseded to 583678801)

$

$

Not available

63

Poulan 19131614

Washer 13/32 x 1 x 14 Ga. (AYP part number)
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

68

Poulan 17490508

Screw, Thdrol 5/16-18 x 1/2
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

70

Poulan 137159

Guide, Belt Mid Span (AYP part number)
(Superseded to 532177679)

$9.99

$

Usually ships in 3-10 days

0

71

Poulan 144916X428

Strap, Grille

$

$

Not available

72

Poulan 74180512

Screw, Mach Trhd 5/16-18 x 3/4
(Superseded to 874180512)

$

$

Not available

74

Poulan 74191008

Screw, Machine #10-24
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

76

Poulan 2029J

Nut, Weld #10-24
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

79

Poulan 74981020

Screw, Machine #10-24 x 1/4
(Superseded to 874981024)

$9.99

$

In Stock, Qty 9

0

80

Poulan 7206J

Spacer, Split
(Superseded to 532007206)

$7.49

$

In Stock, Qty 6

0

82

Poulan 73731000

Nut #10-24

$2.49

$

Usually ships in 3-10 days

0

84

Poulan 142992

Stop, Over Center Mower
(Superseded to 532142992)

$6.49

$

Usually ships in 3-10 days

0

86

Poulan 74760716

Bolt, Fin Hex 7/16-14 Unc x 1 (AYP part number)
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

90

Poulan 11050600

Washer, Lock External Tooth 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

91

Poulan 156586

Rail, Frame Lh (AYP part number)
(Superseded to 532180374)

$56.99

$

Usually ships in 3-10 days

0

92

Poulan 166332X011

Plate, Silkscreen Dash

$3.49

$

Usually ships in 3-10 days

0

95

Poulan 105531X

Push Nut, Nylon
(Superseded to 532105531)

$2.99

$

Usually ships in 3-10 days

0

98

Poulan 140503

Bracket Chassis Skid (AYP part number)
(Superseded to 175847)

$

$

Not available

99

Poulan 140871

Rod Asm. Bypass
(Superseded to 532140871)

$

$

Not available

100

Poulan 124236X

Cap Brake Parking Red

$

$

Not available

101

Poulan 17490628

Screw Thdrol. 3/8-16 x 1-3/4
(Superseded to 817490628)

$3.49

$

Usually ships in 3-10 days

0

102

Poulan 4497H

Retainer Spring 1"
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

103

Poulan 142273

Bracket Lock Bypass

$2.49

$

Usually ships in 3-10 days

0

106

Poulan 138776

Screw Thdrol Hex Head Zinc (AYP part number)
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

107

Poulan 109808X

Latch, Chute Blk
(Superseded to 532109808)

$6.99

$

In Stock, Qty 14

0

108

Poulan 110356X

Cap, Snap Black
(Superseded to 532110356)

$3.99

$

Usually ships in 3-10 days

0

109

Poulan 110357X

Cap, Washer Snap Nat

$

$

Not available

112

Poulan 60867

Nut, Acorn, Hex #10-24

$

$

Not available

114

Poulan 72140610

Bolt, Carriage 3/8-16 x 1-1/4
(Superseded to 595901101)

$4.99

$

Usually ships in 3-10 days

0

115

Poulan 150300

Bumper Asm.
(Superseded to 170311)

$

$

Not available

116

Poulan 141461

Bracket Extension Bumper (AYP part number)
(Superseded to 170310)

$2.99

$

Usually ships in 3-10 days

0

117

Poulan 143679

Plug, Plastic
(Superseded to 532143679)

$2.99

$

Usually ships in 3-10 days

0

118

Poulan 19131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

119

Poulan 73680600

Nut, Crownlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

120

Poulan 19131616

Washer 13/32 x 1 x 16 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

122

Poulan 161464

Screw Hex Wshd 8-18 x 7/8
(Superseded to 532161464)

$

$

Not available

131

Poulan 150195

Bracket Support Hood/Panel YP

$

$

Not available

132

Poulan 74291006

Screw Truss Hd #10-24 x 3/8
(Superseded to 874291006)

$2.99

$

Usually ships in 3-10 days

0

139

Poulan 161330

Bolt Shoulder 5/16-18 TT
(Superseded to 532179032)

$5.99

$

Usually ships in 3-10 days

0

Poulan 8022J

Plug, Hole

$

$

Not available
