PP 236 C - Poulan Pro Chainsaw INTERNAL POWER UNIT & GUIDE BAR Parts Diagram

Chainsaw

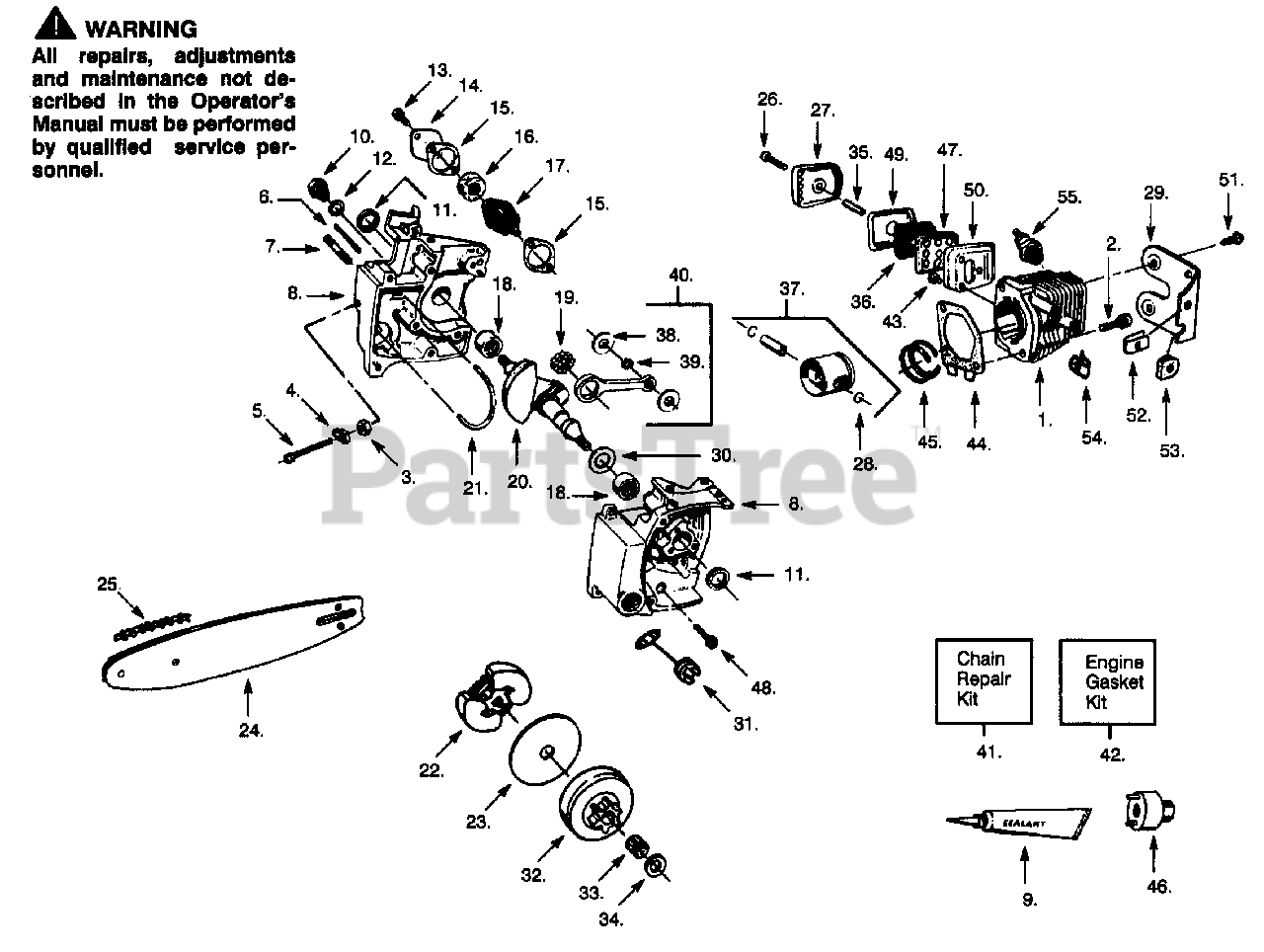

INTERNAL POWER UNIT & GUIDE BAR Parts Diagram

  • Title

1

Poulan 530012312

Cylinder

$78.99

$

Usually ships in 3-10 days

0

2

Poulan 530015239

Screw

$2.49

$

Usually ships in 3-10 days

0

3

Poulan 530015135

Locknut

$1.99

$

In Stock, Qty 7

0

4

Poulan 530023492

Bar Adjust Pin

$

$

Not available

5

Poulan 530016115

Screw

$2.49

$

In Stock, only 1 left!

0

6

Poulan 530036450

Oil Tank Vent Pin

$

$

Not available

7

Poulan 530015719

Bar Mounting Stud

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 530014742

Crankcase Ass'y.

Note: (Incl. 3-7,10,11,&18)

$

$

Not available

9

Poulan 530030054

Crankcase Sealant

$

$

Not available

10

Poulan 530069142

Check Valve Kit

Note: (Incl. 12)

$

$

Not available

11

Poulan 530019059

Crankshaft Seal

$

$

Not available

12

Poulan 530019089

Check Valve Gasket

$

$

Not available

13

Poulan 530015476

Screw

$2.49

$

Usually ships in 3-10 days

0

14

Poulan 530023802

Cover

$

$

Not available

15

Poulan 530019091

Metering Body Gasket

$

$

Not available

16

Poulan 530023801

Oil Filter (Foam)

$

$

Not available

17

Poulan 530010195

Oil Pump Ass'y.

$

$

Not available

18

Poulan 530032029

Crankshaft Bearing

$10.99

$

In Stock, only 2 left!

0

19

Poulan 530032065

Roller Bearing

Note: (Incl. 12 Bearings

$

$

Not available

20

Poulan 530022172

Crankshaft

$

$

Not available

21

Poulan 530021026

Oil Discharge Line
(Superseded to 530069216)

$11.99

$

In Stock, Qty 20+

0

22

Poulan 530069193

Clutch Ass'y. Kit

$

$

Not available

23

Poulan 530069197

Clutch Washer Kit (Outside)

$

$

Not available

24

Poulan 952044369

Guide Bar-16"

$20.99

$

Usually ships in 3-10 days

0

25

Poulan 952051211

Chain-16"
(Superseded to 581562201)

$22.99

$

In Stock, only 2 left!

0

26

Poulan 530016026

Screw

$

$

Not available

27

Poulan 530036969

Muffler Cover

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530023843

Piston Pin Retainer

$

$

Not available

29

Poulan 530016024

Rear Mount Bracket

$

$

Not available

30

Poulan 530023887

Thrust Washer

$

$

Not available

31

Poulan 530010444

Oil Cap Ass'y.

Note: (Incl. O-Ring)

$

$

Not available

32

Poulan 530069166

Clutch Drum

$26.99

$

In Stock, only 1 left!

0

33

Poulan 530032079

Clutch Bearing

$

$

Not available

34

Poulan 530023519

Clutch Spacer-Inside

$3.99

$

In Stock, only 1 left!

0

35

Poulan 530016025

Muffler Spacer

$2.49

$

Usually ships in 3-10 days

0

36

Poulan 530036971

Muffler Screen

$

$

Not available

37

Poulan 530069552

Piston Kit

Note: (Incl. 28,45& Pin)

$

$

Not available

38

Poulan 530015486

Washer

$

$

Not available

39

Poulan 530032075

Bearing Rod Top

Note: (Incl. 22 Bearings

$

$

Not available

40

Poulan 530010474

Connecting Rod Assy

Note: (Incl. 38 & 39)

$

$

Not available

41

Poulan 530052073

Chain Repair Kit

$

$

Not available

42

Poulan 530069401

Engine Gasket Kit

$

$

Not available

43

Poulan 530001666

Screw

$

$

Not available

44

Poulan 530019195

Cylinder Gasket
(Superseded to 530069401)

$

$

Not available

45

Poulan 530027482

Piston Ring

$

$

Not available

46

Poulan 530031112

Clutch Tool

$20.99

$

Usually ships in 3-10 days

0

47

Poulan 530037083

Muffler Baffle-Inner

$2.49

$

Usually ships in 3-10 days

0

48

Poulan 530015986

Screw

$

$

Not available

49

Poulan 530036970

Muffler Baffle-Outer

$2.49

$

Usually ships in 3-10 days

0

50

Poulan 530036968

Muffler Body

$3.99

$

Usually ships in 3-10 days

0

51

Poulan 530016017

Screw

$4.99

$

Usually ships in 3-10 days

0

52

Poulan 530016029

Speed Nut

$1.49

$

Usually ships in 3-10 days

0

53

Poulan 530037063

Grommet

$

$

Not available

54

Poulan 530037354

Wire Clip

$1.49

$

Usually ships in 3-10 days

0

55

Poulan 952030150

Spark Plug

$3.99

$

In Stock, Qty 20+

0

Poulan 530068935

Operator Manual

Note: Not Shown.

$

$

Not available

Poulan 530014844

Carton Contents Bag

Note: Not Shown.

$

$

Not available

Poulan 530031146

Scrench
(Superseded to 545006011)

Note: Not Shown.

$

$

Not available

Poulan 530037171

Instruction Decal

Note: Not Shown.

$1.49

$

Usually ships in 3-10 days

0
