PP 236 C - Poulan Pro Chainsaw CHAIN BRAKE ASSEMBLY Parts Diagram

Chainsaw

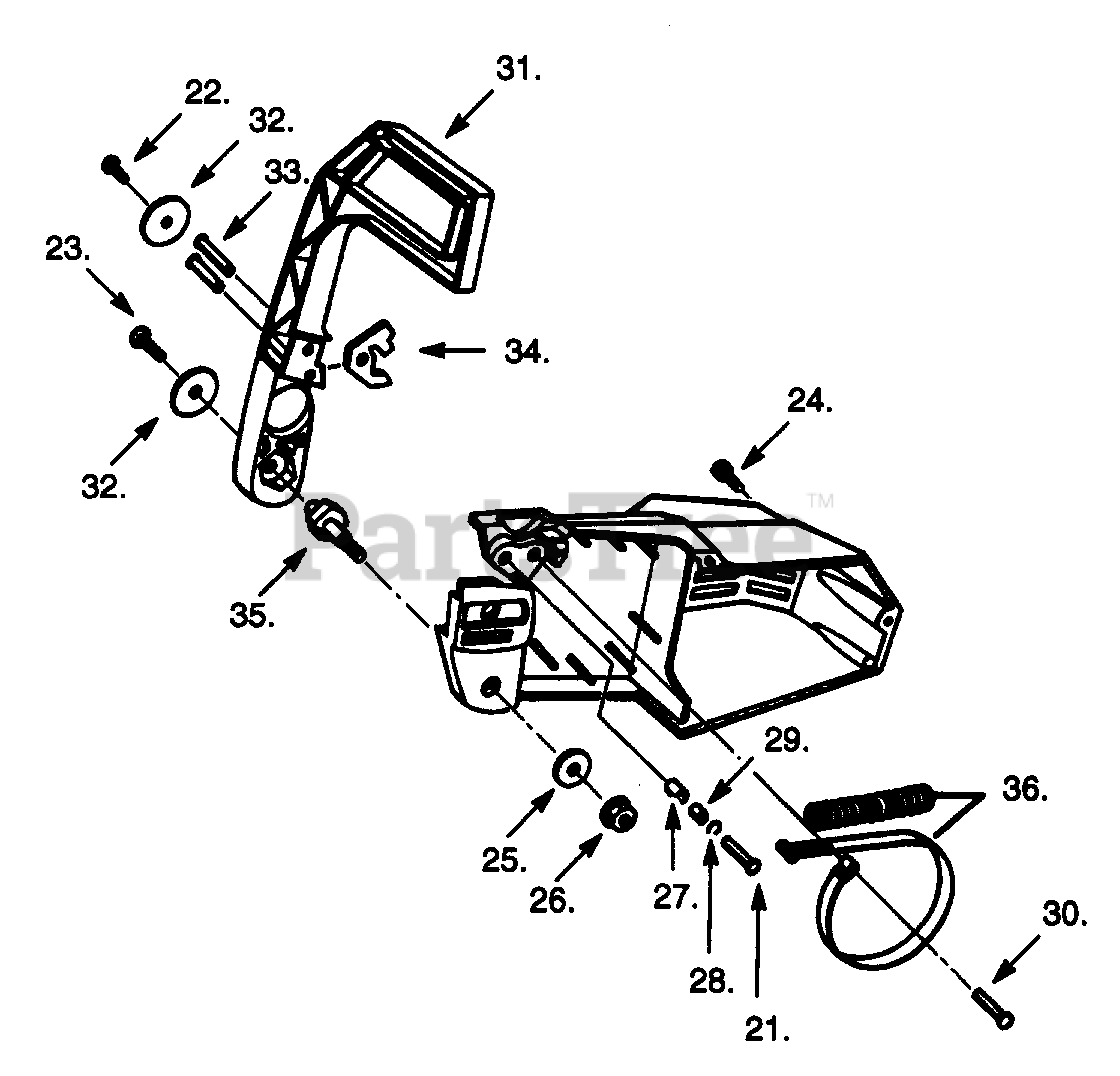

CHAIN BRAKE ASSEMBLY Parts Diagram

  • Title

21

Poulan 507433842

Latch Pin

$

$

Not available

22

Poulan 530015407

Screw

$

$

Not available

23

Poulan 530016022

Screw

$

$

Not available

24

Poulan 530015623

Screw

$3.99

$

Usually ships in 3-10 days

0

25

Poulan 507433893

Washer

$

$

Not available

26

Poulan 530015445

Bar Mounting Nut
(Superseded to 530015251)

$6.49

$

In Stock, only 1 left!

0

27

Poulan 530025881

Latch Roller

$

$

Not available

28

Poulan 530015543

Washer

$

$

Not available

29

Poulan 530025882

Sleeve

$

$

Not available

30

Poulan 507433841

Anchor Pin

$

$

Not available

31

Poulan 507433819

Lever
(Superseded to 952069320)

$

$

Not available

32

Poulan 507433844

Washer

$

$

Not available

33

Poulan 507433843

Handguard Pin

$

$

Not available

34

Poulan 530025366

Latch

$

$

Not available

35

Poulan 507433845

Handguard Pivot

$

$

Not available

36

Poulan 530024154

Brake Band

$

$

Not available
