PP 236 C - Poulan Pro Chainsaw CARBURETORS WT-247, & WT-310 Parts Diagram

Chainsaw

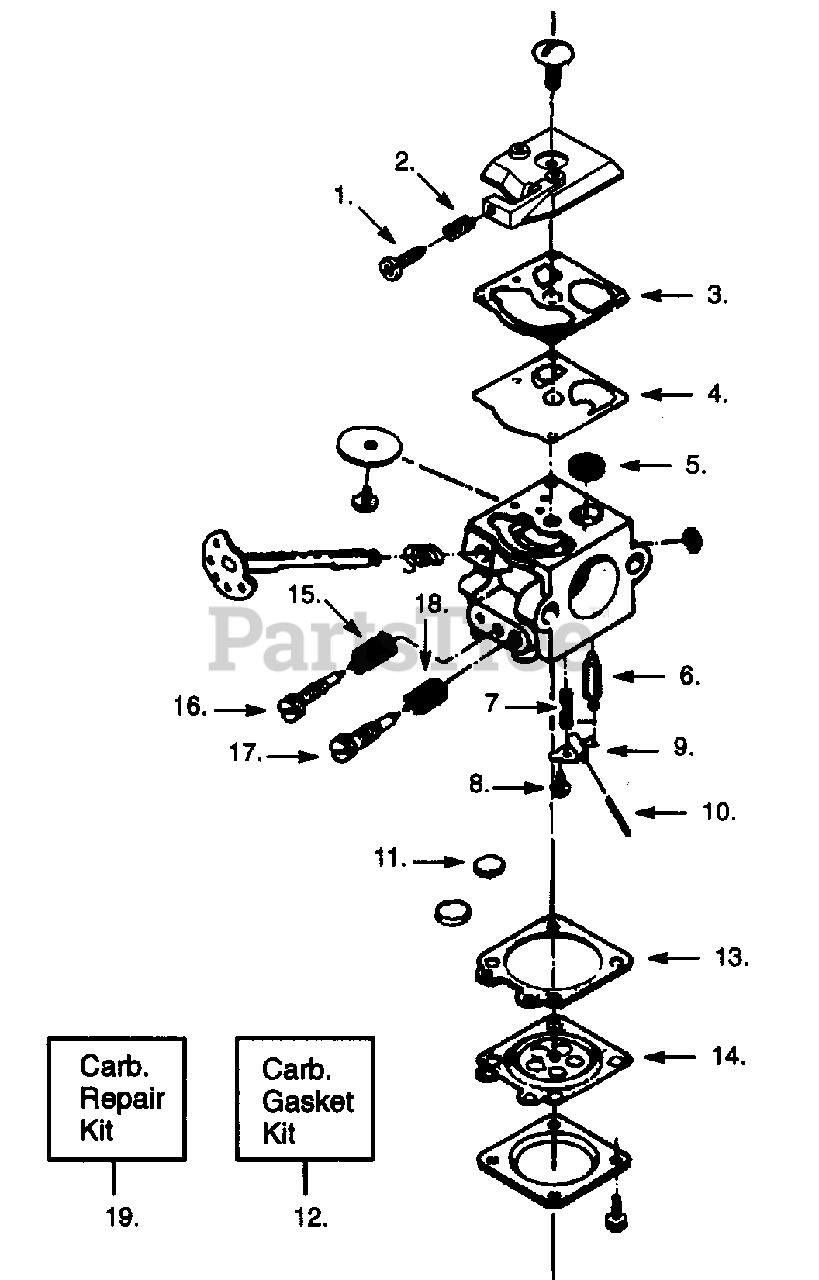

CARBURETORS WT-247, & WT-310 Parts Diagram

  • Title

1

Poulan 530035203

Idle Speed Adj. Screw

$8.99

$

Usually ships in 3-10 days

0

2

Poulan 530035339

Idle Speed Adj. Spring

$2.49

$

Usually ships in 3-10 days

0

3

Poulan 530035164

Fuel Pump Gasket
(Superseded to 504130906)

$11.99

$

In Stock, only 3 left!

0

4

Poulan 530035166

Fuel Pump Diaphragm
(Superseded to 504130807)

$31.99

$

In Stock, Qty 6

0

5

Poulan 530035178

Fuel Inlet Screen WT-3

$3.99

$

Usually ships in 3-10 days

0

Poulan 530035027

Fuel Inlet Screen WT20/247

$

$

Not available

6

Poulan 530035106

Inlet Needle Valve
(Superseded to 503117001)

$22.99

$

In Stock, Qty 8

0

7

Poulan 530035188

Metering Lever Spring

$4.99

$

In Stock, Qty 10

0

8

Poulan 530035016

Metering Lever Pin Screw

$7.99

$

In Stock, Qty 6

0

9

Poulan 530035031

Metering Lever
(Superseded to 505520127)

$5.99

$

Usually ships in 3-10 days

0

10

Poulan 530035028

Metering Lever Pin
(Superseded to 505520125)

$7.99

$

In Stock, only 3 left!

0

11

Poulan 530035162

Welch Plug-5/16 Dia.

$

$

Not available

12

Poulan 530035173

Carb. Gasket/Diaphragm
(Superseded to 530069844)

Note: (Incl. 3, 4, 13, & 14)

$20.99

$

In Stock, only 3 left!

0

13

Poulan 530035165

Metering Diaphragm Gasket

$

$

Not available

14

Poulan 530035014

Metering Diaphragm
(Superseded to 503896701)

$51.99

$

In Stock, Qty 10

0

15

Poulan 530035023

Low Speed Mixture Needle Spring
(Superseded to 501467301)

$0.99

$

Usually ships in 3-10 days

0

16

Poulan 530035171

Low Speed Mixture Needle

$

$

Not available

17

Poulan 530035169

High Speed Mixture Needle

$

$

Not available

18

Poulan 530035167

High Speed Mixture Needle Spring

$

$

Not available

19

Poulan 530035161

Carb. Repair Kit

Note: (Incl. 3-14)

$37.99

$

Usually ships in 3-10 days

0
