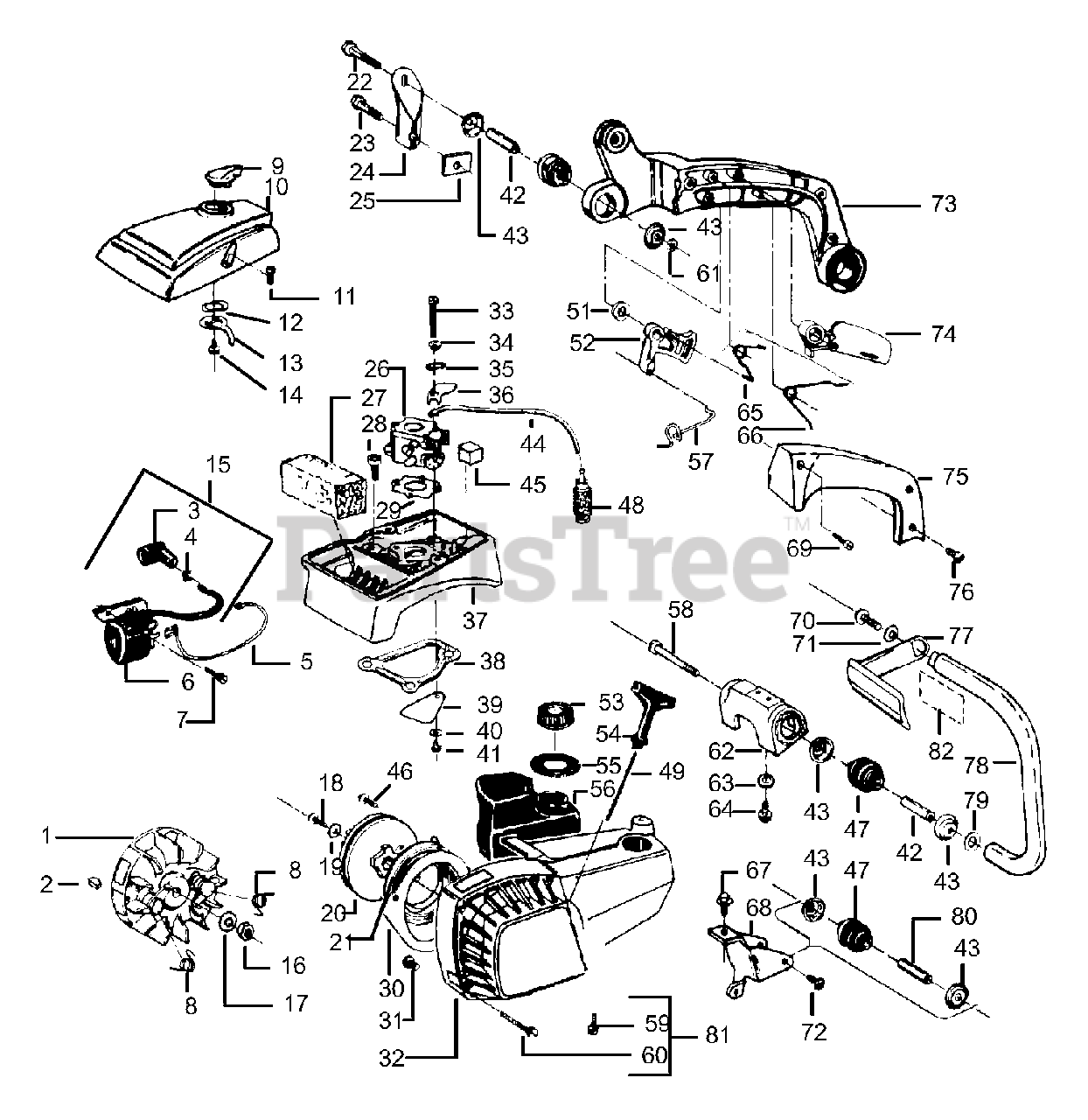

PP 235 - Poulan Pro Chainsaw Handle, Flywheel & Fan Housing Assembly Parts Diagram

Chainsaw

Handle, Flywheel & Fan Housing Assembly Parts Diagram

  • Title

1

Poulan 530047198

Flywheel Ass'y.

Note: (Incl. #8)

$

$

Not available

2

Poulan 530015126

Flywheel Key

$3.99

$

Usually ships in 3-10 days

0

3

Poulan 507475326

Spark Plug Boot

$

$

Not available

4

Poulan 530003933

Spark Plug Connector
(Superseded to 507475326)

$

$

Not available

5

Poulan 530039116

Lead Switch

$

$

Not available

6

Poulan 530069202

Ignition Module

Note: (Incl. #5 & 15)

$

$

Not available

7

Poulan 530015128

Screw
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 530023817

Starter Dog Spring

$6.49

$

In Stock, Qty 5

0

9

Poulan 530025691

Choke Knob

$

$

Not available

10

Poulan 530025676

Carb. Cover

$

$

Not available

11

Poulan 530015168

Screw

$

$

Not available

12

Poulan 530015147

Wave Washer

$4.99

$

Usually ships in 3-10 days

0

13

Poulan 530023806

Choke Lever

$

$

Not available

14

Poulan 530015407

Screw

$

$

Not available

15

Poulan 530039082

Spark Plug Lead

Note: (Incl. #3 & 4)

$

$

Not available

16

Poulan 530626605

Nut

$5.99

$

Usually ships in 3-10 days

0

17

Poulan 530015127

Washer

$6.49

$

Usually ships in 3-10 days

0

18

Poulan 530015036

Screw
(Superseded to 530016141)

$5.99

$

Usually ships in 3-10 days

0

19

Poulan 530015123

Washer

$4.99

$

In Stock, only 4 left!

0

20

Poulan 530069288

Starter Pulley

$

$

Not available

21

Poulan 530042023

Starter Spring
(Superseded to 545008007)

$

$

Not available

22

Poulan 530015524

Screw

$1.99

$

Usually ships in 3-10 days

0

23

Poulan 530001648

Screw

$

$

Not available

24

Poulan 530025679

Upper Isolator Bracket

$

$

Not available

25

Poulan 530024317

Isolator Pad

$2.49

$

In Stock, only 1 left!

0

26

Poulan 530035181

Carb.-
(Superseded to 530069772)

Note: See "Carburetor Assembly P/N 530035181"

$

$

Not available

27

Poulan 530023791

Air Filter

$

$

Not available

28

Poulan 530015242

Screw

$

$

Not available

29

Poulan 530019045

Carb. Gasket

$

$

Not available

30

Poulan 530038312

Air Intake Baffle

$

$

Not available

31

Poulan 530001726

Screw

$

$

Not available

32

Poulan 530069602

Fan Hsg. Kit

Note: (Incl. #68)-See "Service Reference"

$

$

Not available

33

Poulan 530015245

Screw

$2.49

$

Usually ships in 3-10 days

0

34

Poulan 530023865

Spacer

$

$

Not available

35

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

36

Poulan 530023805

Choke Shutter

$

$

Not available

37

Poulan 530036951

Carb. Hsg.

$

$

Not available

38

Poulan 530019118

Gasket
(Superseded to 530019252)

$

$

Not available

39

Poulan 530023366

Reed Valve

$

$

Not available

40

Poulan 530023367

Washer

$

$

Not available

41

Poulan 530016064

Screw

$4.99

$

In Stock, only 2 left!

0

42

Poulan 530015342

Spacer

$3.99

$

Usually ships in 3-10 days

0

43

Poulan 530026163

Isolator Cup Line

$3.99

$

Usually ships in 3-10 days

0

44

Poulan 530069216

Kit

Note: (Bulk No.# 8133)

$11.99

$

In Stock, Qty 20+

0

45

Poulan 530023373

Throttle Wire Boot

$

$

Not available

46

Poulan 530016080

Rope Ret. Screw

$6.49

$

In Stock, only 2 left!

0

47

Poulan 530024256

Isolator

$

$

Not available

48

Poulan 530014362

Fuel Pick-Up Ass'y.
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

49

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

51

Poulan 530015528

Washer

$

$

Not available

52

Poulan 530025683

Throttle Trigger

$

$

Not available

53

Poulan 530014347

Fuel Cap Ass'y.

Note: (Incl. O-Ring)

$9.49

$

In Stock, Qty 15

0

54

Poulan 530037485

Starter Handle
(Superseded to 530056402)

$6.49

$

In Stock, only 1 left!

0

55

Poulan 530019093

Seal

$

$

Not available

56

Poulan 530010775

Fuel Tank Ass'y.

Note: (Incl. #44, 48, 53 & 55)

$

$

Not available

57

Poulan 530025685

Throttle Wire

$

$

Not available

58

Poulan 530015551

Screw

$2.49

$

Usually ships in 3-10 days

0

59

Poulan 530015650

Screw

$

$

Not available

60

Screw-

Note: See "Service Reference"

$

$

Not available

61

Poulan 530015515

Locknut

$4.99

$

In Stock, only 1 left!

0

62

Poulan 530025689

Lower Isolator Bracket

$

$

Not available

63

Poulan 530015123

Washer

$4.99

$

In Stock, only 4 left!

0

64

Poulan 530015557

Screw

$3.99

$

Usually ships in 3-10 days

0

65

Poulan 530025686

Spring Trigger

$

$

Not available

66

Poulan 530025687

Throttle Lock out Lever Spring

$

$

Not available

67

Poulan 530015426

Bolt

$2.49

$

Usually ships in 3-10 days

0

68

Poulan 530038385

Rear Isolator Bracket

$3.99

$

Usually ships in 3-10 days

0

69

Poulan 530015533

Screw

$3.99

$

Usually ships in 3-10 days

0

70

Poulan 530016020

Screw

$1.49

$

In Stock, only 2 left!

0

71

Poulan 530092062

Washer

$3.99

$

Usually ships in 3-10 days

0

72

Poulan 530015476

Screw

$2.49

$

Usually ships in 3-10 days

0

73

Poulan 530025682

Rear Handle- Right

$8.99

$

Usually ships in 3-10 days

0

74

Poulan 530025684

Throttle Lock out Lever

$

$

Not available

75

Poulan 530025681

Rear Handle-Left

$3.99

$

Usually ships in 3-10 days

0

76

Poulan 534222402

Screw

$3.99

$

In Stock, only 3 left!

0

77

Poulan 530025451

Handguard

$

$

Not available

78

Poulan 530025675

Handlebar w/Insert

$

$

Not available

79

Poulan 530015531

Washer

$1.99

$

Usually ships in 3-10 days

0

80

Poulan 530015343

Spacer

$3.99

$

Usually ships in 3-10 days

0

81

Poulan 530069286

Fan Hsg. Screws Kit

Note: (Incl. #59 & 60, illustration and parts list & #9 on "Engine Assembly")

$

$

Not available

82

Poulan 530026849

Handguard Decal

$

$

Not available
