PP 230 - Poulan Pro Chainsaw INTERNAL POWER UNIT Parts Diagram

Chainsaw

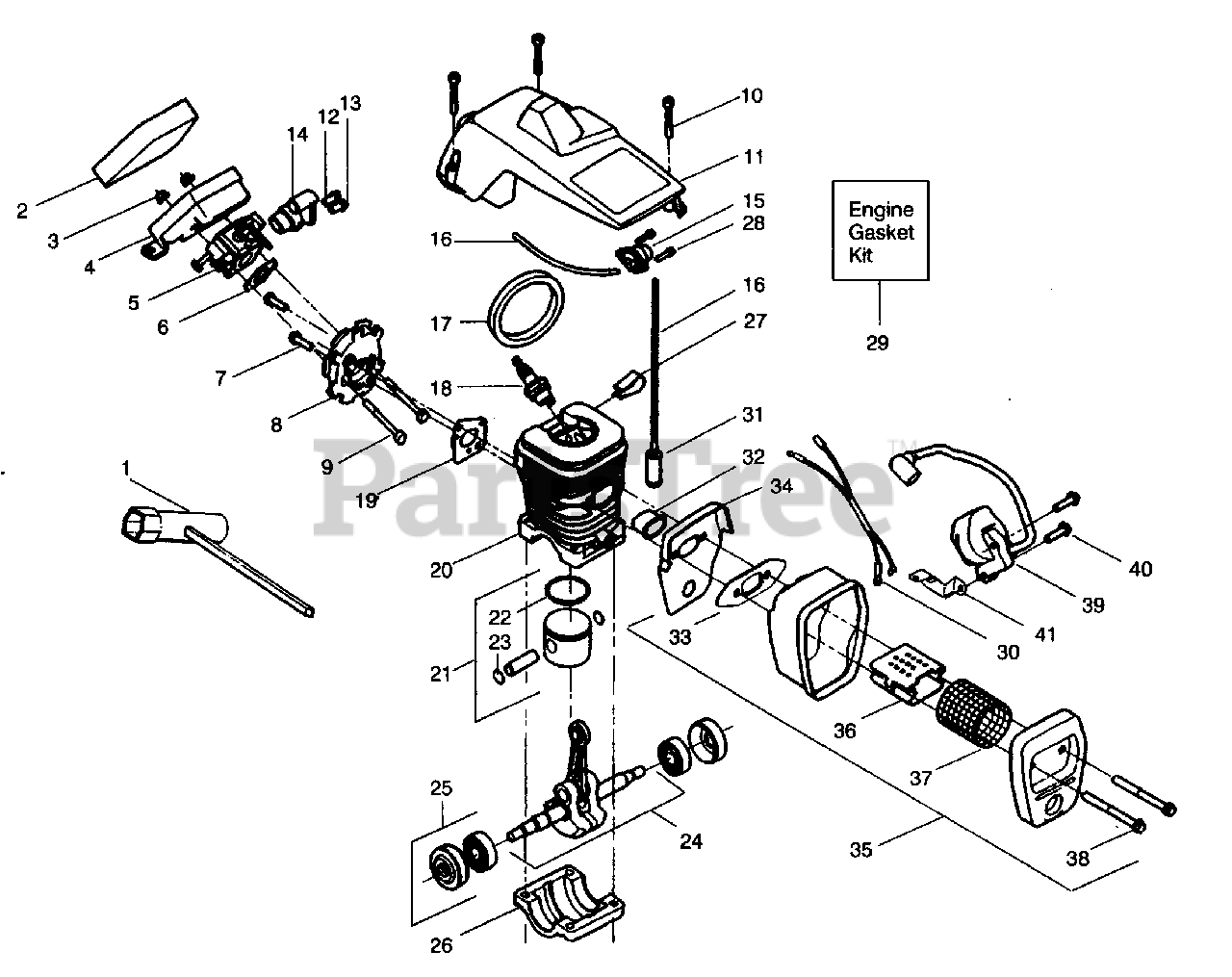

INTERNAL POWER UNIT Parts Diagram

  • Title

1

Poulan 530031163

Bar Wrench

$9.99

$

In Stock, Qty 12

0

2

Poulan 530037793

Foam-Air Filter

$4.99

$

In Stock, Qty 7

0

3

Poulan 530016101

Nut

$6.49

$

In Stock, only 2 left!

0

4

Poulan 530047604

Air Filter Housing

$

$

Not available

5

Poulan 530069722

Carburetor Ass'y. Kit (Inc. 12 & 13)
(Superseded to 530071621)

$

$

Not available

6

Poulan 530019217

Carb. Gasket

$

$

Not available

7

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

8

Poulan 530047824

Carb. Adapter Kit (Inc. 9 & 17)

$

$

Not available

9

Poulan 530016094

Screw

$

$

Not available

10

Poulan 530016153

Screw

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 530047578

Cylinder Shield

$

$

Not available

12

Poulan 530038318

Limiter Cap-High

$3.99

$

In Stock, Qty 20+

0

13

Poulan 530038317

Limiter Cap-Low

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 530038340

Grommet-Carb Adjust.

$

$

Not available

15

Poulan 530047213

Primer Ass'y.
(Superseded to 530071835)

$11.99

$

In Stock, Qty 14

0

16

Poulan 530069216

Primer Line Kit (Small Dia)

$11.99

$

In Stock, Qty 20+

0

17

Poulan 530019210

Air Box Seal

$

$

Not available

18

Poulan 952030150

Spark Plug (CJ-7Y)

$3.49

$

In Stock, Qty 20+

0

19

Poulan 530019208

Gasket

$

$

Not available

20

Poulan 530069702

MODEL 230
(Superseded to 530038749)

$

$

Not available

20

Poulan 530069720

MODEL 260

$

$

Not available

21

Poulan 530069701

MODEL 230

$27.99

$

Usually ships in 3-10 days

0

21

Poulan 530069719

MODEL 260

$

$

Not available

22

Poulan 530029805

MODEL 230

$6.49

$

In Stock, Qty 17

0

22

Poulan 530038729

MODEL 260
(Superseded to 545160401)

$6.49

$

In Stock, only 1 left!

0

23

Poulan 530015697

Retainer-Piston Pin

$6.49

$

In Stock, Qty 6

0

24

Poulan 530038507

MODEL 230
(Superseded to 545113101)

$72.99

$

In Stock, only 1 left!

0

24

Poulan 530047062

MODEL 260
(Superseded to 545113101)

$72.99

$

In Stock, only 1 left!

0

25

Poulan 530047179

Seal & Bearing Ass'y.

$

$

Not available

26

Poulan 530037935

Cap-Crankcase

$10.99

$

Usually ships in 3-10 days

0

27

Poulan 530016136

Clip-High Tension Lead

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530016090

Screw
(Superseded to 530015780)

$6.49

$

In Stock, only 2 left!

0

29

Poulan 530069608

Engine Gasket Kit (Inc. 6,17,19,33)

$8.99

$

In Stock, Qty 13

0

30

Poulan 530047603

Wire Harness Ass'y.

$

$

Not available

31

Poulan 530014362

Fuel Filter
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

32

Poulan 530037652

Heat Insulator

$

$

Not available

33

Poulan 530019221

Muffler Gasket

$3.99

$

Usually ships in 3-10 days

0

34

Poulan 530038237

Muffler Back Plate

$

$

Not available

35

Poulan 530047207

Muffler Ass'y. (Inc. 33-34 & 36-38)
(Superseded to 530071904)

$20.99

$

Usually ships in 3-10 days

0

36

Poulan 530037245

Muffler Diffuser
(Superseded to 530037813)

$4.99

$

In Stock, only 1 left!

0

37

Poulan 530036103

Spark Arrestor Screen

$

$

Not available

38

Poulan 530016132

Screw

$6.49

$

In Stock, Qty 10

0

39

Poulan 530039167

Ignition Module
(Superseded to 530071905)

$66.99

$

In Stock, only 2 left!

0

40

Poulan 530015905

Screw
(Superseded to 530015814)

$6.49

$

In Stock, Qty 16

0

41

Poulan 530047442

Ground Strap

$3.99

$

Usually ships in 3-10 days

0

Poulan 530083362

Operator Manual

Note: Not Shown.

$

$

Not available

Poulan 530038257

Instruction Decal

Note: Not Shown.

$

$

Not available

Poulan 530031112

Clutch Ass'y. Tool

Note: Not Shown.

$20.99

$

In Stock, only 1 left!

0

Poulan 530031097

Air Gap Gauge

Note: Not Shown.

$

$

Not available

Poulan 530031160

Insert Tool-Limiter Cap

Note: Not Shown.

$21.99

$

Usually ships in 3-10 days

0

Poulan 952031152

Carrying Case

Note: Not Shown.

$

$

Not available
