PP 230 - Poulan Pro Chainsaw EXTERNAL POWER UNIT Parts Diagram

Chainsaw

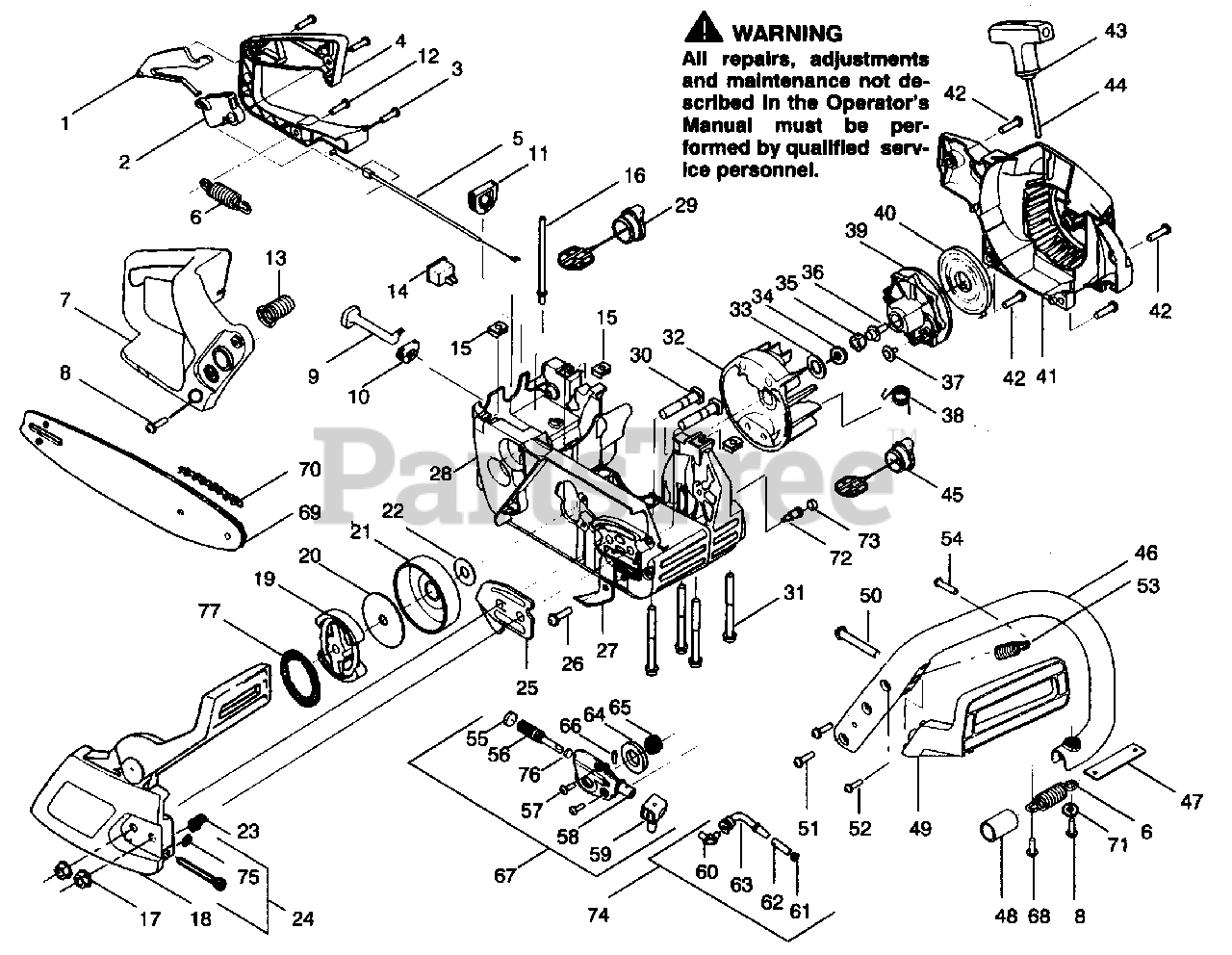

EXTERNAL POWER UNIT Parts Diagram

  • Title

1

Poulan 530036098

Throttle Lockout

$

$

Not available

2

Poulan 530036097

Throttle Trigger

$5.99

$

In Stock, only 3 left!

0

3

Poulan 530015906

Screw

$6.49

$

In Stock, only 2 left!

0

4

Poulan 530047581

Cover-Rear Handle

$4.99

$

Usually ships in 3-10 days

0

5

Poulan 530047602

Throttle Cable

$

$

Not available

6

Poulan 530042082

Spring
(Superseded to 545006036)

$13.99

$

In Stock, only 4 left!

0

7

Poulan 530047582

Rear Handle

$15.99

$

Usually ships in 3-10 days

0

8

Poulan 530016018

Screw

$

$

Not available

9

Poulan 530047605

Choke Knob

$4.99

$

In Stock, Qty 7

0

10

Poulan 530038406

Grommet-Choke Knob

$

$

Not available

11

Poulan 530047631

Grommet-Throttle Cable

$2.49

$

In Stock, only 2 left!

0

12

Poulan 530015886

Screw

$6.49

$

In Stock, only 4 left!

0

13

Poulan 530036962

Spring Ass'y.

$

$

Not available

14

Poulan 530037692

Ignition Switch
(Superseded to 530069572)

$9.49

$

In Stock, only 3 left!

0

15

Poulan 530015922

Nut-"U" Type

$6.49

$

In Stock, Qty 5

0

16

Poulan 530069247

Fuel Line Kit (Large Dia.)

$7.99

$

In Stock, Qty 20+

0

17

Poulan 530015917

Nut-Bar Mounting

$3.99

$

In Stock, Qty 16

0

18

Poulan 530047514

Chain Brake Kit

$

$

Not available

19

Poulan 530014949

Clutch Ass'y. (Inc. 77)

$22.99

$

In Stock, only 1 left!

0

20

Poulan 530015611

Clutch Washer

$6.49

$

In Stock, Qty 11

0

21

Poulan 530047061

Clutch Drum Ass'y. w/Bearing

$17.99

$

In Stock, Qty 8

0

22

Poulan 530015907

Washer-Thrust

$

$

Not available

23

Poulan 530016109

Pin-Bar Adjusting
(Superseded to 530016180)

$4.99

$

In Stock, Qty 20+

0

24

Poulan 530069611

Bar Adjusting Kit (Inc. 75.)

$9.49

$

In Stock, Qty 13

0

25

Poulan 530038238

Plate-Bar Mounting

$

$

Not available

26

Poulan 530015905

Screw
(Superseded to 530015814)

$6.49

$

In Stock, Qty 17

0

27

Poulan 530029850

Chain Catcher

$6.49

$

In Stock, only 4 left!

0

28

Poulan 530047621

Chassis Ass'y. (Inc.16,29,30,45,72-73; & from INTERNAL POWER UNIT: 2,16,31)

$

$

Not available

29

Poulan 530047192

Fuel Cap Ass'y.
(Superseded to 580940901)

$7.99

$

In Stock, only 4 left!

0

30

Poulan 530016133

Bolt-Bar

$6.49

$

In Stock, only 2 left!

0

31

Poulan 530016132

Screw

$6.49

$

In Stock, Qty 10

0

32

Poulan 530039187

Flywheel Ass'y.
(Superseded to 530047534)

$

$

Not available

33

Poulan 530400897

Washer

$

$

Not available

34

Poulan 530001717

Lockwasher

$3.99

$

In Stock, only 1 left!

0

35

Poulan 530016134

Nut

$6.49

$

In Stock, only 2 left!

0

36

Poulan 530015920

Screw

$6.49

$

In Stock, Qty 7

0

37

Poulan 530016080

Screw

$6.49

$

In Stock, only 2 left!

0

38

Poulan 530023817

Spring-Starter Dog

$6.49

$

In Stock, Qty 5

0

39

Poulan 530037817

Starter Pulley
(Superseded to 545034301)

$

$

Not available

40

Poulan 530027531

Recoil Spring
(Superseded to 545008015)

$7.99

$

In Stock, Qty 16

0

41

Poulan 530038316

Fan Housing

$

$

Not available

42

Poulan 530015892

Screw

$6.49

$

In Stock, Qty 20+

0

43

Poulan 530037485

Starter Handle
(Superseded to 530056402)

$6.49

$

In Stock, only 1 left!

0

44

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

45

Poulan 530010846

Oil Cap Ass'y.
(Superseded to 530057236)

$

$

Not available

46

Poulan 530047583

Front Handle
(Superseded to 545048001)

$

$

Not available

47

Poulan 530047608

Limiter Strap-Isolator
(Superseded to 530037009)

$

$

Not available

48

Poulan 530036142

Isolator Sleeve

$

$

Not available

49

Poulan 530038224

Handguard

$

$

Not available

50

Poulan 530016020

Screw

$1.49

$

In Stock, only 2 left!

0

51

Poulan 530015843

Screw

$6.49

$

Usually ships in 3-10 days

0

52

Poulan 530016009

Screw

$

$

Not available

53

Poulan 530047934

Spring Ass'y.
(Superseded to 545006036)

$13.99

$

In Stock, only 4 left!

0

54

Poulan 530015875

Screw

$4.99

$

In Stock, only 3 left!

0

55

Poulan 530038546

Dust Plug

$

$

Not available

56

Poulan 530038543

Gear Ass'y.

$

$

Not available

57

Poulan 530016097

Screw

$

$

Not available

58

Poulan 530037818

Oil Pump Body

$

$

Not available

59

Poulan 530019206

Seal Block

$6.49

$

Usually ships in 3-10 days

0

60

Poulan 530038241

Fitting-Elbow

$

$

Not available

61

Poulan 530030189

Plug-Oil Filter
(Superseded to 530056533)

$6.49

$

In Stock, only 2 left!

0

62

Poulan 530037821

Oil Filter
(Superseded to 530056533)

$6.49

$

In Stock, only 2 left!

0

63

Poulan 530038373

Pick-up Tube

$4.99

$

Usually ships in 3-10 days

0

64

Poulan 530019231

Dust Seal

$

$

Not available

65

Poulan 530037820

Worm Gear

$6.49

$

In Stock, only 3 left!

0

66

Poulan 530016138

Pin-Dowl

$

$

Not available

67

Poulan 530069698

Oil Pump Kit (Inc. 55-59, 66 & 76)
(Superseded to 530071259)

$

$

Not available

68

Poulan 530015843

Screw

$6.49

$

Usually ships in 3-10 days

0

69

Poulan 952044369

Bar-16"

$20.99

$

Usually ships in 3-10 days

0

70

Poulan 952051211

Chain-16"
(Superseded to 581562201)

$22.99

$

In Stock, only 3 left!

0

71

Poulan 530015158

Washer-Flat
(Superseded to 530015123)

$4.99

$

In Stock, only 4 left!

0

72

Poulan 530026119

Check Valve

$5.99

$

In Stock, Qty 10

0

73

Poulan 530038264

Plug-Oil Vent

$

$

Not available

74

Poulan 530047663

Oil Pick-up Ass'y (Inc. 60-63)

$6.99

$

In Stock, Qty 6

0

75

Poulan 530038593

Retainer-Bar Adjust.

$4.99

$

In Stock, Qty 20+

0

76

Poulan 530019216

O-Ring Oiler

$

$

Not available

77

Poulan 530094188

Spring-Clutch
(Superseded to 530014949)

$22.99

$

In Stock, only 1 left!

0
