PP 22V48 (960480077-00) - Poulan Pro Lawn Tractor (2013-12) ELECTRICAL Parts Diagram

Lawn Tractor

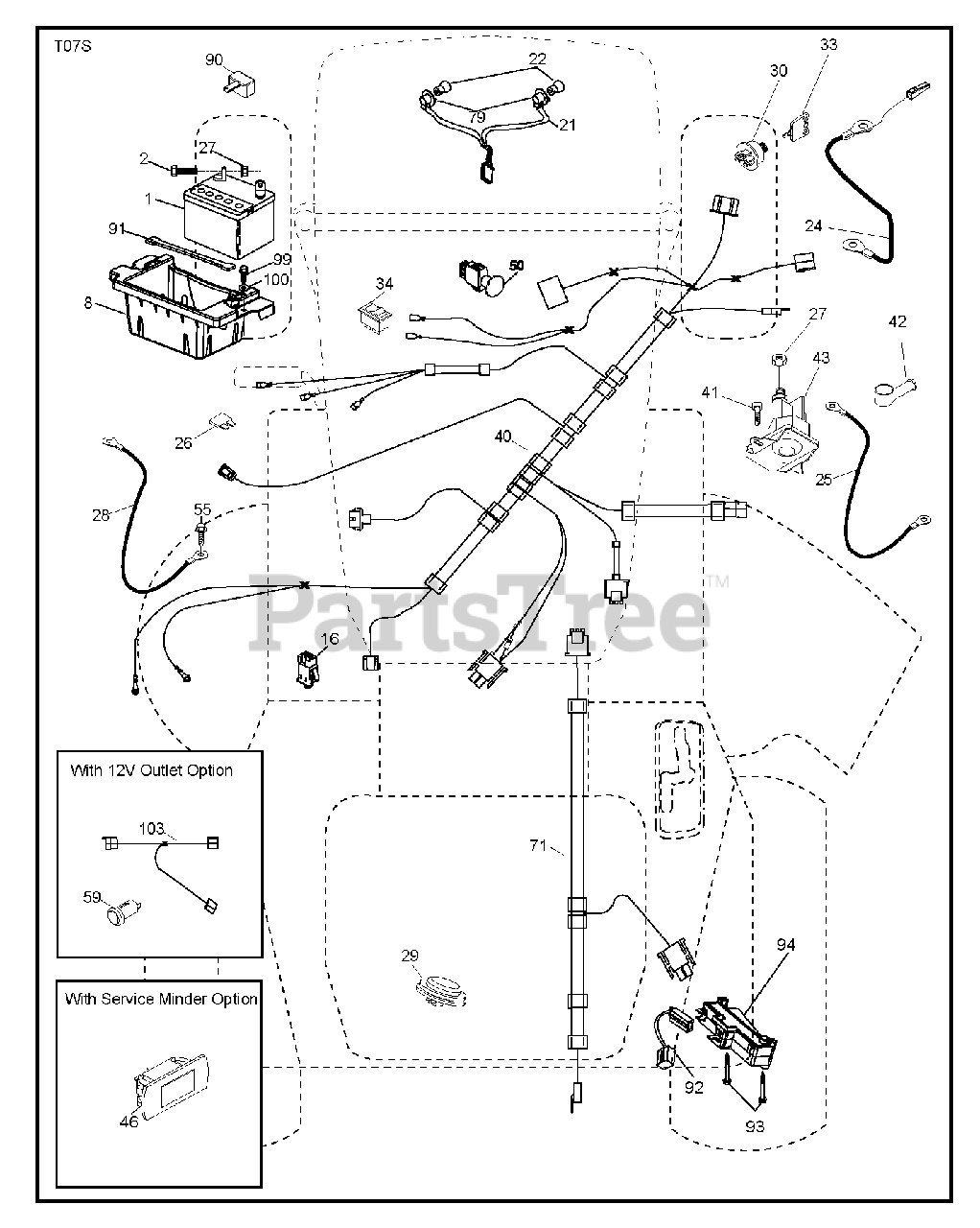

ELECTRICAL Parts Diagram

  • Title
1

Poulan 532163465

REPL BY 532 12 38-99
(Superseded to 532123899)

$194.99

$

In Stock, only 2 left!

0

2

Poulan 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, only 1 left!

0

8

Poulan 532186491

BOX.BATTERY.MOUNT.FRONT.LT

$

$

Not available

16

Poulan 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 5

0

21

Poulan 532183759

HARNESS ASSY LIGHT

$47.99

$

Usually ships in 3-10 days

0

22

Poulan 532004152

LIGHTBULB

$4.99

$

Usually ships in 3-10 days

0

24

Poulan 585555601

Battery Cable with Wire, Front 8 Ga 8

$9.49

$

Usually ships in 3-10 days

0

25

Poulan 532412895

CABLE.STARTER.6G.BL/RED.17.5
(Superseded to 585555501)

$9.49

$

In Stock, only 2 left!

0

26

Poulan 532175158

FUSE 20AMP

$7.49

$

In Stock, only 1 left!

0

27

Poulan 873510400

NUT
(Superseded to 873640400)

$

$

Not available

28

Poulan 532416588

Ground Cable, 21" Black 8 Ga 90T

$13.99

$

In Stock, only 2 left!

0

29

Poulan 532401545

SWITCH.SEAT.DELTA.OPC.

$39.99

$

In Stock, Qty 6

0

30

Poulan 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$22.99

$

Usually ships in 3-10 days

0

33

Poulan 532411935

KEY.CHAIN.BLISTER.PACK.GEN.INT

$10.99

$

Usually ships in 3-10 days

0

34

Poulan 532110712

SWITCH LT

$9.49

$

In Stock, only 2 left!

0

40

Poulan 532401104

HARNESS.IGN.DASH.HUQ/P

$120.99

$

In Stock, only 3 left!

0

41

Poulan 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

42

Poulan 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Poulan 532192507

SOLENOID.W/BRASS.PLUNGER
(Superseded to 582042802)

$26.99

$

In Stock, Qty 16

0

46

Poulan 532401763

GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$24.99

$

In Stock, Qty 5

0

50

Poulan 532174651

PTO SWITCH
(Superseded to 582107601)

$28.99

$

In Stock, Qty 8

0

55

Poulan 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

71

Poulan 532194276

HARNESS-CHASSIS SUB

$40.99

$

Usually ships in 3-10 days

0

79

Poulan 532175242

BULB HOLDER ASM.

$18.99

$

Usually ships in 3-10 days

0

90

Poulan 532435395

COVER.TERMINAL.BATTERY

$6.49

$

In Stock, only 2 left!

0

91

Poulan 532190270

STRAP.BATTERY.MOUNT.FRONT

$9.99

$

In Stock, Qty 13

0

92

Poulan 532196615

HARNESS.PIGTAIL.CONSLE

$18.99

$

Usually ships in 3-10 days

0

93

Poulan 532192540

SCREW.PLASTITE

$4.99

$

Usually ships in 3-10 days

0

94

Poulan 532191834

MODULE.REVERSE.ROS

$37.99

$

Usually ships in 3-10 days

0

99

Poulan 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

100

$6.49

$

Usually ships in 3-10 days

0
