PP 22KA42 (960420194-00) - Poulan Lawn Tractor (2016-05) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

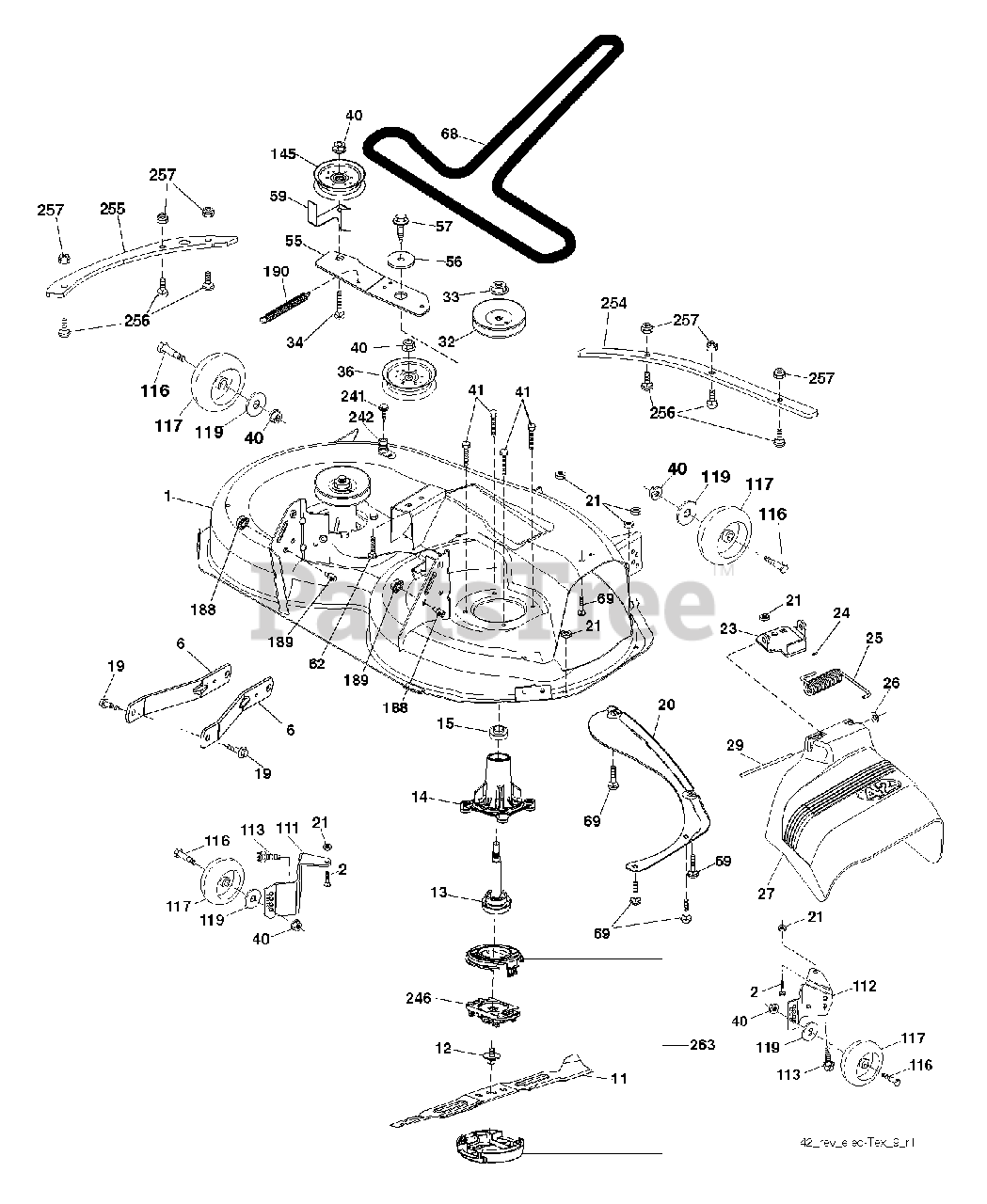

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Poulan 532424696

Mower Deck Assembly, 42"
(Superseded to 583415101)

$460.99

$

Usually ships in 3-10 days

0

2

Poulan 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

6

Poulan 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

11

Poulan 580921101

Mower Blade, Revolution 42" 3-in-1 Pt43

$28.99

$

Usually ships in 3-10 days

0

12

Poulan 584309301

Screw, 7/16 X 20 X 1"

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 580854701

SHAFT ASM.REV.TALL.N/GREASEBL
(Superseded to 587126105)

$53.99

$

In Stock, Qty 18

0

14

Poulan 580796101

HOUSING.MANDREL.REV.TALL.N/GRS
(Superseded to 587126105)

$53.99

$

In Stock, Qty 18

0

15

Poulan 585323901

Extended Mandrel Bearing, Top

$14.99

$

In Stock, only 3 left!

0

19

Poulan 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

20

Poulan 532159770

BAFFLE.VORTEX

$

$

Not available

21

Poulan 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Poulan 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 5

0

24

Poulan 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Poulan 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 15

0

26

Poulan 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 532403004

SHIELD.DEFLECTOR.MOWER.42"BLAC

$44.99

$

Usually ships in 3-10 days

0

29

Poulan 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

32

Poulan 532153535

PULLEY/MANDREL
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Poulan 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

34

Poulan 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

36

Poulan 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$39.99

$

In Stock, Qty 20+

0

40

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

41

Poulan 584953901

Hex Washer Head Bolt, .313-18 X 1.19

$4.99

$

In Stock, Qty 20+

0

55

Poulan 532437110

IDLER.ARM.42"

$

$

Not available

56

Poulan 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

57

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

59

Poulan 532141043

GUARD, BELT

$

$

Not available

62

Poulan 872110616

BOLT
(Superseded to 596136301)

$3.99

$

Usually ships in 3-10 days

0

68

Poulan 532144959

BELT V SECONDARY

$43.99

$

In Stock, Qty 20+

0

69

Poulan 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

111

Poulan 532404784

BRKT.WHEEL.GAUGE.LH.42"

$12.99

$

In Stock, only 1 left!

0

112

Poulan 532404785

BRKT.WHEEL.GAUGE.RH.42"

$10.99

$

Usually ships in 3-10 days

0

113

Poulan 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

116

Poulan 532124842

BOLT M
(Superseded to 596434402)

$4.99

$

In Stock, only 3 left!

0

117

Poulan 532188606

WHEEL.GAGE.HALF.SPOKED
(Superseded to 589527401)

$11.99

$

In Stock, Qty 10

0

119

Poulan 819121414

WASHER
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

145

Poulan 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$

In Stock, only 3 left!

0

188

Poulan 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

189

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

190

Poulan 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$11.99

$

In Stock, only 2 left!

0

241

Poulan 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 2 left!

0

242

Poulan 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 10

0

246

Poulan 580954003

Blade Holder, Revolution

$205.99

$

In Stock, Qty 5

0

254

Poulan 585316805

Front Reinforcement Plate, 42" Deck.Ftx498

$13.99

$

In Stock, only 1 left!

0

255

Poulan 585317005

Side Reinforcement Plate, 42"

$13.99

$

Usually ships in 3-10 days

0

256

Poulan 539109800

RHSNB, 1/4-20 X 1, GR5

$4.99

$

Usually ships in 3-10 days

0

257

Poulan 873900400

NUT T
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

263

Poulan 586638501

Revolution Assembly Cap, Upper

$34.99

$

In Stock, only 2 left!

0

--

Poulan 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 5

0

--

Poulan 587126105

Mandrel, Internal Spacer Non-Grease Rev

$53.99

$

In Stock, Qty 18

0

--

Poulan 586437401

DECK.ASM SVC.42B.E.HP.4GWB.TX

$1091.99

$

Usually ships in 3-10 days

0
