PP 22KA42 (960420194-00) - Poulan Lawn Tractor (2016-05) ENGINE Parts Diagram

Lawn Tractor

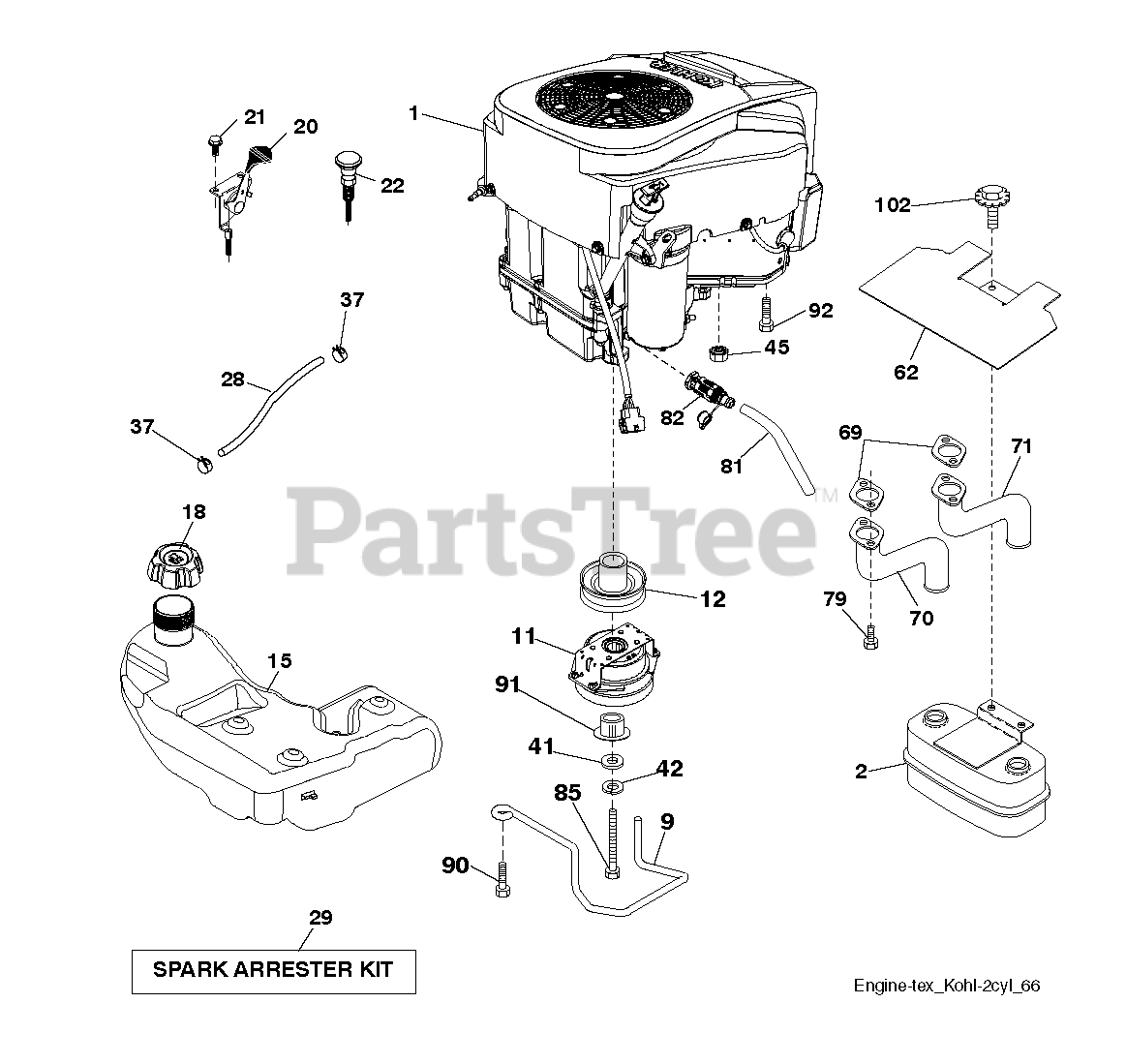

ENGINE Parts Diagram

  • Title

1

Poulan 000000000

Note: Engine Kohl Model No KT725-3023 (586067401)

$

$

Not available

2

Poulan 532445962

MUFFLER.ASM.TWN.EXTNDED.DFLCTR
(Superseded to 589818701)

$44.99

$

Usually ships in 3-10 days

0

9

Poulan 584911602

KEEPER.BELT.ENGINE
(Superseded to 532194319)

$13.99

$

In Stock, only 1 left!

0

11

Poulan 587241501

CLUTCH.OGURA.4.4PD.GT1.5-EH13V

$278.99

$

In Stock, only 1 left!

0

12

Poulan 532402980

PULLEY.ENGINE.ENX

$87.99

$

Usually ships in 3-10 days

0

15

Poulan 532438080

TANK.ASSY.3.GAL.EPA
(Superseded to 532438031)

$206.99

$

Usually ships in 3-10 days

0

18

Poulan 585124802

Fuel Cap Assembly, 3" Black

$18.99

$

In Stock, only 1 left!

0

20

Poulan 532182937

THROTTLE CONTROL
(Superseded to 532177328)

$47.99

$

In Stock, only 3 left!

0

21

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

22

Poulan 532191596

CONTROL CHOKE

$40.99

$

Usually ships in 3-10 days

0

28

Poulan 532401135

LINE.FUEL.64"REAR.EMIS

$27.99

$

Usually ships in 3-10 days

0

29

Poulan 532137180

KIT.SPARK ARRESTOR(392390 B&S)

$182.99

$

In Stock, only 1 left!

0

37

Poulan 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

41

Poulan 532126197

WASHER

$8.99

$

In Stock, only 3 left!

0

42

Poulan 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

45

Poulan 873510400

NUT
(Superseded to 873640400)

$

$

Not available

62

Poulan 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

Poulan 532186054

GASKET.EXHAUST.KOHL.CV18-CV26

$

$

Not available

70

Poulan 583954501

Exhaust Pipe, LH CV18/20

$22.99

$

In Stock, only 1 left!

0

71

Poulan 583954801

Exhaust Pipe, RH CV18/20
(Superseded to 532146700)

$20.99

$

In Stock, only 2 left!

0

79

Poulan 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

81

Poulan 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

82

Poulan 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 4 left!

0

85

Poulan 581332804

Clutch Bolt, 7/16-20 X 3.5 Gr 5 24Hr

$7.99

$

In Stock, only 2 left!

0

90

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

91

Poulan 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

92

Poulan 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

102

Poulan 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0
