PP 22H50K - Poulan Lawn Tractor (1995) CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

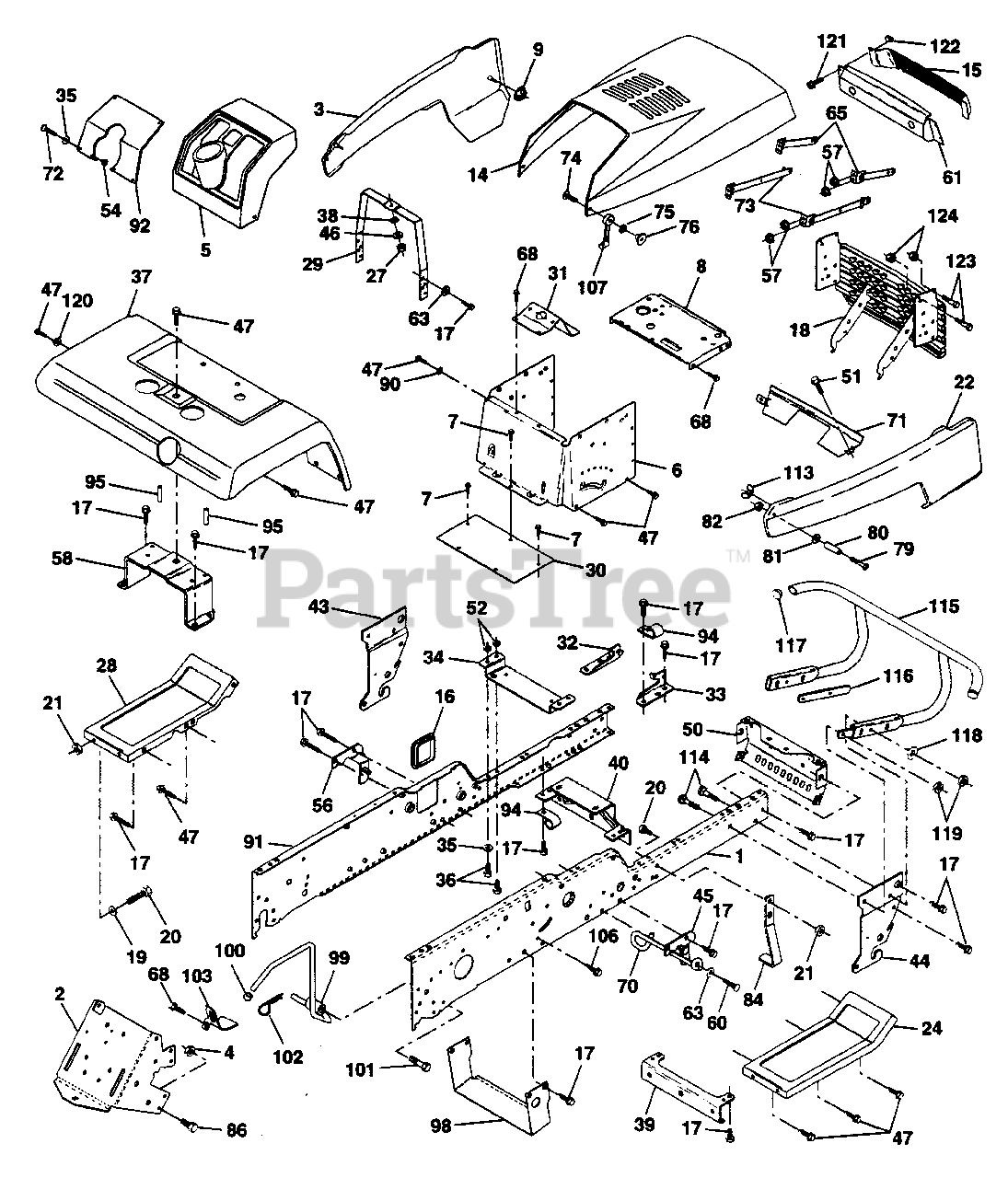

CHASSIS AND ENCLOSURES Parts Diagram

  • Title
1

Electrolux/AYP 532144737

Rail, Frame RH
(Superseded to 532150383)

$121.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532140506

Drawbar, Gt
(Superseded to 532175282)

$

$

Not available

3

Electrolux/AYP 532144525

Panel Asm., Side LH

$

$

Not available

4

Electrolux/AYP 873800700

Nut, Lock Hex 7/16 Unc

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 532140398

Dash, Plastic Black

$

$

Not available

6

Electrolux/AYP 532145053

Dash, 1PCS, Lower

$84.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 817720408

Screw, Thd Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532145166

Support, Battery

$

$

Not available

9

Electrolux/AYP 532108067

Nut, Pal
(Superseded to 108067X)

$

$

Not available

14

Electrolux/AYP 532144524

Hood Asm., Pnt

$

$

Not available

15

Electrolux/AYP 532106395

Lens, Headlight Bar

$

$

Not available

16

Electrolux/AYP 532121794

Cover, Access
(Superseded to 121794X)

$

$

Not available

17

Electrolux/AYP 817490612

Screw, Thdrol 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

$

$

Not available

19

Electrolux/AYP 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

20

Electrolux/AYP 874760616

Bolt, Fin Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 873680600

Nut, Crownlock 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, Qty 8

0

22

Electrolux/AYP 532144526

Panel Asm., Side RH

$

$

Not available

24

$

$

Not available

27

Electrolux/AYP 873220400

Nut, Fin Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

28

$6.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532145205

Bracket, Support Dash

$

$

Not available

$

$

Not available

31

Electrolux/AYP 532145183

Bracket, Support Steering

$

$

Not available

32

Electrolux/AYP 532141315

Bracket Asm., Frame Pivot Lh

$7.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 532141314

Bracket Asm., Frame Pivot Rh
(Superseded to 141314)

$

$

Not available

34

Electrolux/AYP 532142131

Bracket, Engine Support Rear

$6.49

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 819111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 18

0

36

Electrolux/AYP 874780512

Bolt, Fin Hex 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

37

$

$

Not available

38

Electrolux/AYP 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

39

Electrolux/AYP 532136961

Bracket, Axle Front

$

$

Not available

40

Electrolux/AYP 532142132

Bracket, Support Axle/Engine
(Superseded to 532156111)

$9.49

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 532136939

Bracket, Spnsn Front Lh

$

$

Not available

44

Electrolux/AYP 532136940

Bracket, Spnsn Front Rh

$

$

Not available

45

Electrolux/AYP 532138460

Bracket Asm., Susp Chassis Rh
(Superseded to 532155887)

$

$

Not available

46

Electrolux/AYP 819091216

Washer 9/32 x 3/4 x 16 Ga.
(Superseded to 596204201)

$3.99

$

In Stock, only 1 left!

0

47

Electrolux/AYP 817490608

Screw Thdrol 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 532136575

Bracket, Chassis Front

$

$

Not available

51

Electrolux/AYP 817580408

Screw Tap Tite 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 873680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

54

Electrolux/AYP 873510500

Nut 5/16-18
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

56

Electrolux/AYP 532138461

Bracket Asm., Susp Chassis Lh
(Superseded to 532155886)

$

$

Not available

57

Electrolux/AYP 873510400

Nut Keps Hex 1/4-20
(Superseded to 873640400)

$

$

Not available

58

Electrolux/AYP 532137113

Bracket Asm., Fender
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 817490620

Screw Thdrol 3/8-16 x 1-1/4
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 532124392

Beze. Asem.
(Superseded to 583678801)

$

$

Not available

63

Electrolux/AYP 819131614

Washer 13/32 x 1 x 14 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 532104618

Strap, Asm. Hinge Front

$

$

Not available

68

Electrolux/AYP 817490508

Screw, Thdrol 5/16-18 x 1/2

$6.49

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 532137159

Guide, Belt Mid Span
(Superseded to 532177679)

$9.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 532147944

Strap, Grille

$

$

Not available

72

Electrolux/AYP 874180512

Screw, Mach Trhd 5/16-18 x 3/4

$

$

Not available

73

Electrolux/AYP 532106784

Strap, Asm. Hinge Rear

$

$

Not available

74

Electrolux/AYP 874191008

Screw, Machine #10-24
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

75

Electrolux/AYP 810071000

Washer, Lock #10

$4.99

$

In Stock, Qty 14

0

76

Electrolux/AYP 532125004

Nut, Weld #10-24
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

79

Electrolux/AYP 874981020

Screw, Machine #10-24 x 1/4
(Superseded to 874981024)

$9.99

$

In Stock, Qty 10

0

80

Electrolux/AYP 532007206

Spacer, Split

$7.49

$

In Stock, Qty 8

0

81

Electrolux/AYP 819070818

Washer 7/32 x 1/2 x 18 Ga.
(Superseded to 819070816)

$6.99

$

In Stock, only 1 left!

0

82

Electrolux/AYP 873731000

Nut #10-24
(Superseded to 873271000)

$2.99

$

Usually ships in 3-10 days

0

84

Electrolux/AYP 532142992

Stop, Over Center Mower

$6.49

$

Usually ships in 3-10 days

0

86

Electrolux/AYP 874760716

Bolt, Fin Hex 7/16-14 Unc x 1
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

90

Electrolux/AYP 811050600

Washer, Lock External Tooth 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 532144735

Rail, Frame Lh
(Superseded to 532151630)

$

$

Not available

92

Electrolux/AYP 532144522

Plate, Silkscreen Dash

$

$

Not available

94

Electrolux/AYP 532100207

Clip, Fuel Line

$4.99

$

Usually ships in 3-10 days

0

95

Electrolux/AYP 532105531

Push Nut, Nylon

$2.99

$

Usually ships in 3-10 days

0

98

Electrolux/AYP 532140503

Bracket Chassis Skid
(Superseded to 532175847)

$

$

Not available

99

Electrolux/AYP 532140871

Rod Asm. Bypass

$

$

Not available

100

Electrolux/AYP 532124236

Cap Brake Parking Red
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

101

Electrolux/AYP 817490628

Screw Thdrol. 3/8-16 x 1-3/4
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

102

Electrolux/AYP 532124788

Retainer Spring 1"
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

103

Electrolux/AYP 532142273

Bracket Lock Bypass
(Superseded to 142273)

$

$

Not available

106

Electrolux/AYP 532138776

Screw Thdrol Hex Head Zinc
(Superseded to 532157722)

$4.99

$

In Stock, Qty 20+

0

107

Electrolux/AYP 532109808

Latch, Chute Blk

$6.99

$

In Stock, Qty 15

0

113

Electrolux/AYP 532123198

Nut, Plastic Locking Wing 1/4-20
(Superseded to 532146525)

$

$

Not available

114

Electrolux/AYP 872140610

Bolt, Carriage 3/8-16 x 1-1/4
(Superseded to 583611601)

$4.99

$

Usually ships in 3-10 days

0

116

Electrolux/AYP 532141461

Bracket Extension Bumper
(Superseded to 532170310)

$2.99

$

Usually ships in 3-10 days

0

117

Electrolux/AYP 532143679

Plug, Plastic

$2.99

$

Usually ships in 3-10 days

0

118

Electrolux/AYP 819131316

Washer 13/32 x 13/16 x 16 Ga.

$4.99

$

In Stock, Qty 5

0

119

Electrolux/AYP 973680600

Nut, Crownlock 3/8-16 UNC

$

$

Not available

120

Electrolux/AYP 819131616

Washer 13/32 x 1 x 16 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

121

Electrolux/AYP 817211010

Screw Hex Whd Tap #10-16 x 5/8

$

$

Not available

122

$

$

Not available

123

Electrolux/AYP 532123481

Bolt Shoulder 1/4-20
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

124

Electrolux/AYP 873800400

Nut Crownlock 1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 532125085

Plug, Hole
(Superseded to 8022J)

Note: Not Shown.

$

$

Not available
