PP 22H50 - Poulan Pro Lawn Tractor Steering Assembly Parts Diagram

Lawn Tractor

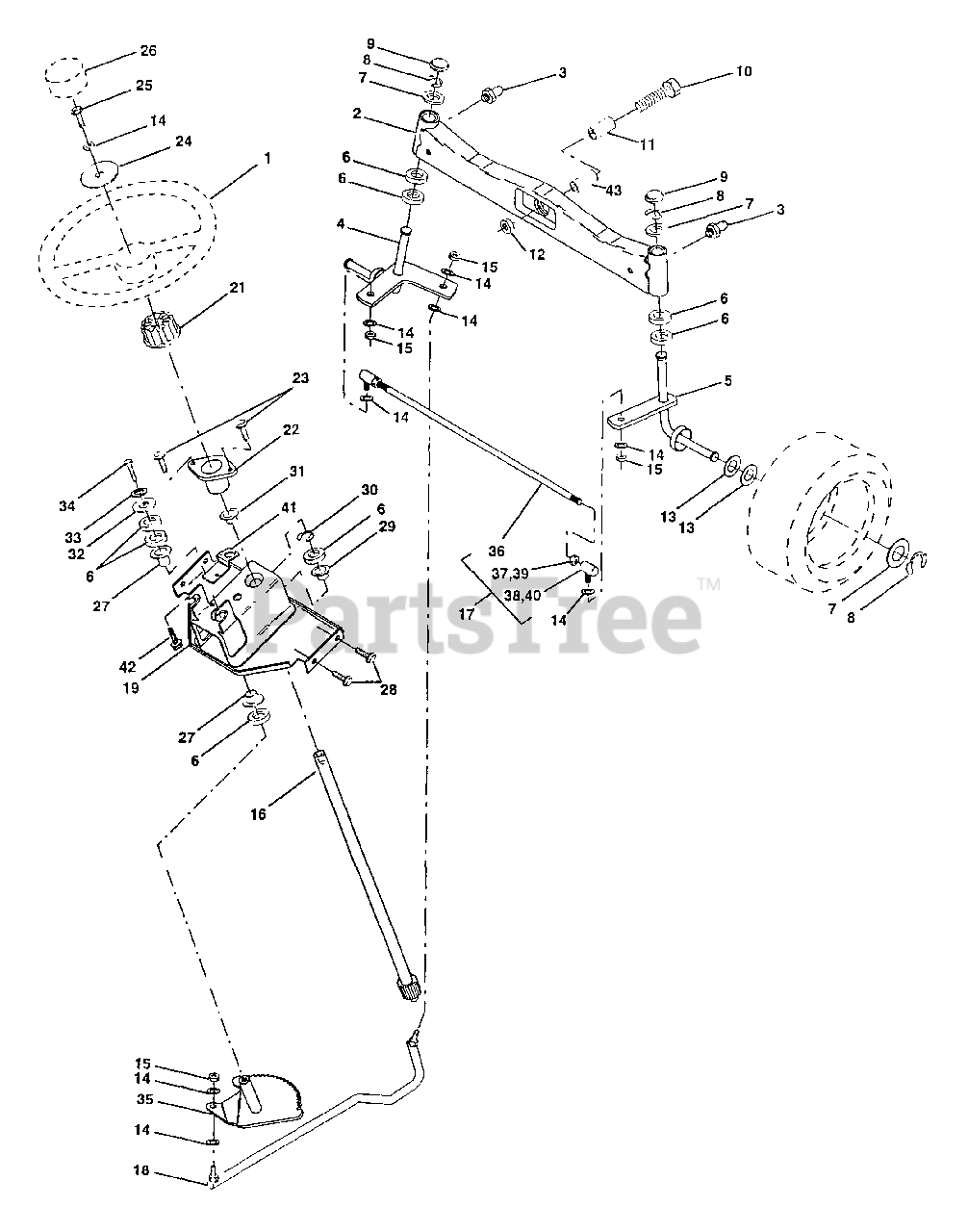

Steering Assembly Parts Diagram

  • Title

1

Poulan 121472X

Wheel, Steering (AYP part number)

$

$

Not available

2

Poulan 137094

Axle Asm., Front (AYP part number)

$

$

Not available

3

Poulan 6855M

Fitting, Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

4

Poulan 532136960

Spindle Asm, LH (AYP part number)
(Superseded to 532161849)

$

$

Not available

5

Poulan 532136959

Spindle Asm., RH (AYP part number)
(Superseded to 532161848)

$

$

Not available

6

Poulan 6266H

Bearing, Race Thrust Harden
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

7

Poulan 121748X

Washer 25/32 x 1-5/8 x 16 Ga.
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

8

Poulan 12000029

Ring, Klip #T5304-75
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 121232X

Cap, Spindle
(Superseded to 532121232)

$4.99

$

In Stock, Qty 9

0

10

Poulan 74781044

Bolt, Fin Hex 5/8-11 x 2-3/4
(Superseded to 874781044)

$

$

Not available

11

Poulan 154779

Bearing Axle STLT/GT
(Superseded to 532154779)

$10.99

$

In Stock, only 1 left!

0

12

Poulan 73901000

Nut, Lock Flange 5/8-11 Unc
(Superseded to 583612401)

$3.49

$

Usually ships in 3-10 days

0

13

Poulan 121749X

Washer 25/32 x 1-1/4 x 16 Ga.
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

14

Poulan 10040600

Washer, Lock Hvy Hlcl Spr 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

15

Poulan 7810H

Nut Lock Center 3/8-24 Unf
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

16

Poulan 145103

Shaft Asm., Steering
(Superseded to 532145103)

$121.99

$

In Stock, only 3 left!

0

17

Poulan 137347

Rod Asm., Tie Ball J Ball Vgt
(Superseded to 532186799)

Note: Inc. Key No. 36-40.

$87.99

$

Usually ships in 3-10 days

0

18

Poulan 137155

Draglink, Ball Joint Solid Vgt (AYP part number)
(Superseded to 532175572)

$74.99

$

Usually ships in 3-10 days

0

19

Poulan 156011

Support Asm., Steering Vgt
(Superseded to 532156011)

$

$

Not available

21

Poulan 100711L

Adapter, Wheel Steering
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

22

Poulan 155105

Bushing, Strg.
(Superseded to 532155108)

$7.99

$

In Stock, only 1 left!

0

23

Poulan 152927

Screw
(Superseded to 532152927)

$7.49

$

In Stock, only 2 left!

0

24

Poulan 19133808

Washer 13/32 x 2-3/8 x 8 Ga.
(Superseded to 583789501)

$

$

Not available

25

Poulan 74780616

Bolt, Fin Hex 3/8-16 x 1 Gr. 5
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

26

Poulan 126805X

Cap, Wheel Steering

$

$

Not available

27

Poulan 3366R

Bearing, Col. Strg.
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

28

Poulan 17490612

Screw Thdrol. 3/8-16 x 3/4 TY-TT
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

29

Poulan 104239X

Bearing, Flange
(Superseded to 532104239)

$12.99

$

In Stock, only 1 left!

0

30

Poulan 12000034

Ring, Klip Truarc #5304-75
(Superseded to 812000034)

$

$

Not available

31

Poulan 138136

Bushing, Nyliner Snap
(Superseded to 532138136)

$10.99

$

In Stock, only 1 left!

0

32

Poulan 19111610

Washer 11/32 x 1 x 10 Ga.
(Superseded to 819111610)

$6.49

$

Usually ships in 3-10 days

0

33

Poulan 10040500

Washer, Lock Hvy Hlcl Spr 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

34

Poulan 74760512

Bolt, Hex Hd 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

35

Poulan 138059

Gear, Sector Steering
(Superseded to 532138059)

$

$

Not available

36

Poulan 137156

Tie Rod (AYP part number)

$

$

Not available

37

Poulan 73360600

Jam Nut RH Thread
(Superseded to 873360600)

$6.49

$

Usually ships in 3-10 days

0

38

Poulan 109850X

Joint Asm. Ball RH Thread
(Superseded to 532121160)

$24.99

$

In Stock, only 1 left!

0

39

Poulan 73700600

Jam Nut LH Thread
(Superseded to 873700600)

$6.49

$

Usually ships in 3-10 days

0

40

Poulan 109851X

Joint Asm. Ball LH Thread
(Superseded to 532109851)

$31.99

$

Usually ships in 3-10 days

0

41

Poulan 155246

Bracket Switch Inerlock VGT97
(Superseded to 532155246)

$6.49

$

Usually ships in 3-10 days

0

42

Poulan 17490508

Screw Thdrol 5/16-18 x 1/2 TYT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

43

Poulan 154780

Spacer Axle
(Superseded to 532154780)

$9.99

$

Usually ships in 3-10 days

0
