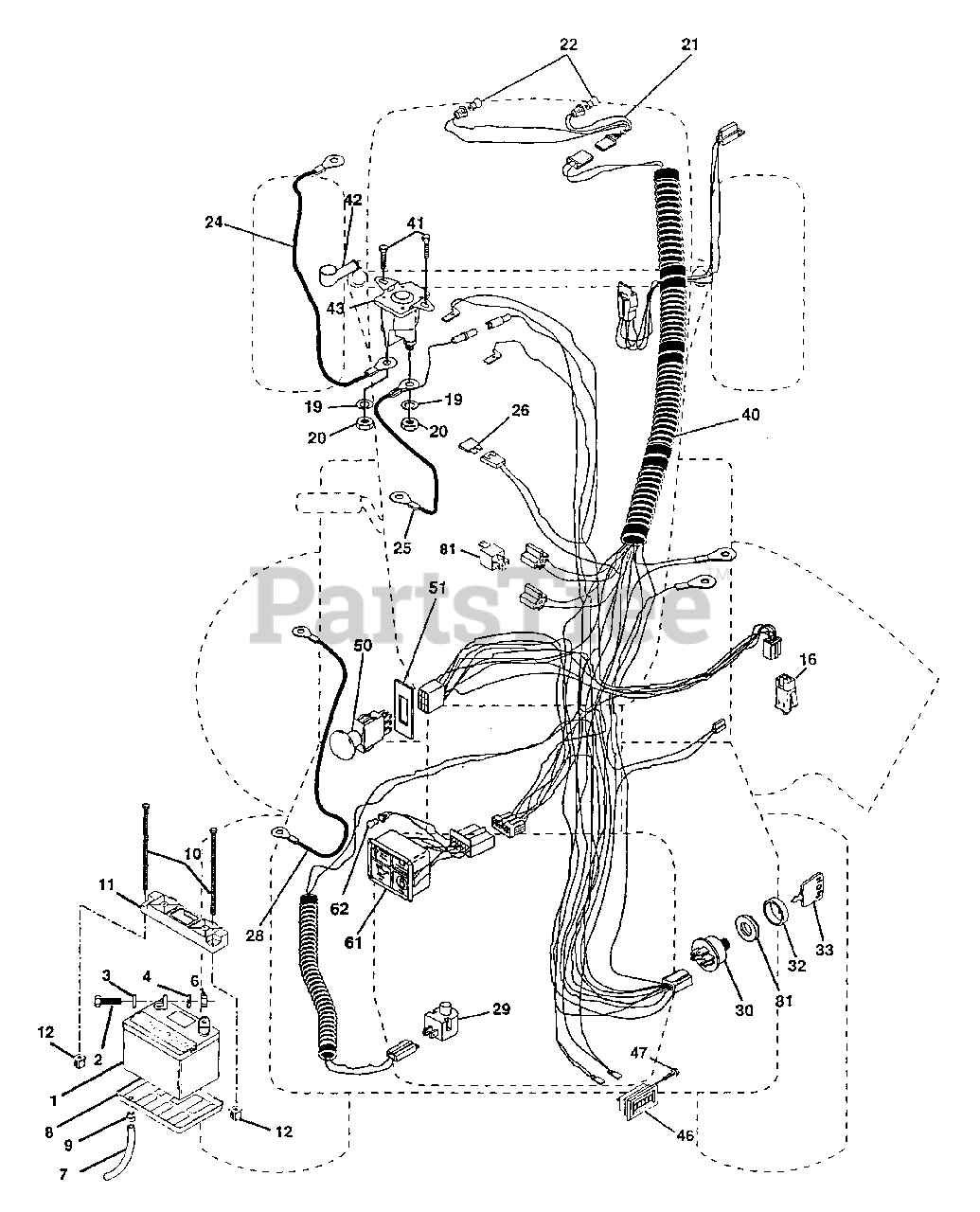

PP 22H50 - Poulan Pro Lawn Tractor Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title
1

Poulan 144927

Battery (AYP part number)

$

$

Not available

2

Poulan 74760412

Bolt Hex Head 1/4-20 x 3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

3

Poulan 10040400

Washer, Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

4

Poulan 19091016

Washer 9/32 x 5/8 x 16 Ga
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

6

Poulan 73220400

Nut Fin Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

7

Poulan 7697J

Tube Plastic

$

$

Not available

8

Poulan 7603J

Tray, Battery
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

9

Poulan 109596X

Clamp, Hose
(Superseded to 532109596)

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 145211

Bolt, Battery Front 1/4-20 x 7.5 Zinc (AYP part number)

$

$

Not available

11

Poulan 150109

Holddown Battery Front Mount
(Superseded to 532150109)

$

$

Not available

12

Poulan 145769

Nut, Push Nylon 1.4" Battery Front (AYP part number)

$

$

Not available

16

Poulan 153664

Switch Interlock Push-In (AYP part number)
(Superseded to 532176138)

$22.99

$

In Stock, Qty 5

0

19

Poulan 10090400

Washer, Lock 1/4 (AYP part number)

$

$

Not available

20

Poulan 73350400

Nut, Jam Hex 1/4-20

$2.49

$

Usually ships in 3-10 days

0

21

Poulan 136850

Harness Socket Light w/4152J

$

$

Not available

22

Poulan 4152J

Bulb Light
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

24

Poulan 4014J

Cable, Starter

$

$

Not available

25

Poulan 146686

Cable, Battery
(Superseded to 532146686)

$10.99

$

Usually ships in 3-10 days

0

26

Poulan 108824X

Fuse
(Superseded to 532108824)

$6.49

$

Usually ships in 3-10 days

0

28

Poulan 157899

Cable, Ground

$

$

Not available

29

Poulan 121305X

Switch, Plunger
(Superseded to 532421062)

$14.99

$

In Stock, only 1 left!

0

30

Poulan 140301

Switch, Ign
(Superseded to 532140301)

$37.99

$

In Stock, only 1 left!

0

31

Poulan 124211X

Nut, Ignition Switch
(Superseded to 532124211)

$5.99

$

In Stock, only 1 left!

0

32

Poulan 141226

Cover Switch Key
(Superseded to 532141226)

$5.99

$

Usually ships in 3-10 days

0

33

Poulan 122147X

Key
(Superseded to 532122147)

$

$

Not available

40

Poulan 156160

Harness Ign.

$

$

Not available

41

Poulan 17720408

Screw 1/4-20 x 1/2
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

42

Poulan 131563

Cover, Terminal Red
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Poulan 145673

Solenoid (AYP part number)

$

$

Not available

46

Poulan 110940X

Meter Hour
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

47

Poulan 17011008

Screw #10-24 x 1/2

$

$

Not available

50

Poulan 154959

Switch, PTO
(Superseded to 582107601)

$28.99

$

In Stock, Qty 8

0

51

Poulan 140405

Ring Retainer PTO
(Superseded to 532140405)

$6.49

$

Usually ships in 3-10 days

0

61

Poulan 138101

Light Pkg Asm
(Superseded to 532138101)

$

$

Not available

62

Poulan 532110143

Bulb, Light Pkg. (AYP part number)

$

$

Not available

81

Poulan 109748X

Relay Asm.
(Superseded to 532109748)

$30.99

$

In Stock, only 1 left!

0
