PP 22H50 KA - Poulan Pro Lawn Tractor SEAT ASSEMBLY Parts Diagram

Lawn Tractor

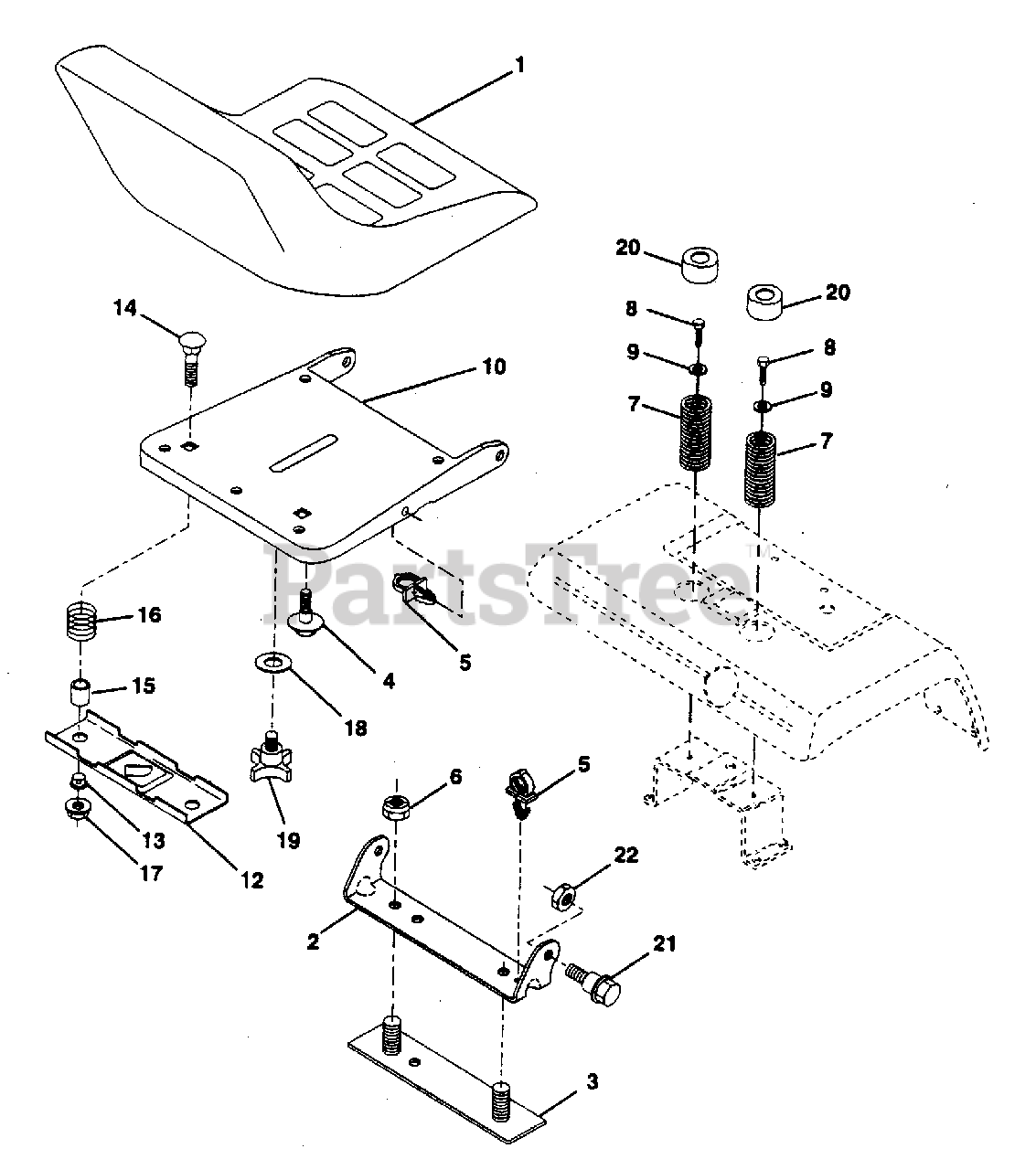

SEAT ASSEMBLY Parts Diagram

  • Title
1

Poulan 532127440

Seat (AYP part number)
(Superseded to 532140121)

$

$

Not available

2

Poulan 532140551

Bracket, Pivot Seat (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

3

Poulan 532140675

Strap, Fender (AYP part number)

$6.99

$

Usually ships in 3-10 days

0

4

Poulan 532127018

Bolt, Shoulder 5/16-18 X .62 (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

5

Poulan 532145006

Clip, Push In Hinged (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

6

Poulan 873680600

Nut, Crownlock 3/8-16 Unc
(Superseded to 596322601)

$3.99

$

In Stock, Qty 9

0

7

Poulan 532124181

Spring, Seat Cprsn (AYP part number)
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Poulan 817490508

Screw, Thdrol 5/16-18 X 1/2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

9

Poulan 819131614

Washer 13/32 X 1 X 14 Ga. (AYP part number)
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

10

Poulan 532140552

Pan, Seat (AYP part number)
(Superseded to 532155925)

$21.99

$

Usually ships in 3-10 days

0

12

Poulan 532121246

Bracket, Mounting Switch (AYP part number)
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

13

Poulan 532121248

Bushing, Snap (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

14

Poulan 872050411

Bolt, Carriage 1/4-20 X 1-3/8

$

$

Not available

15

Poulan 532121249

Spacer, Split (AYP part number)

$6.49

$

In Stock, only 2 left!

0

16

Poulan 532123740

Spring, Cprsn (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

17

Poulan 532123976

Nut, Lock 1/4 Lge Flg Gr. 5 (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

18

Poulan 819171912

Washer 17/32 X 1-3/16 X 12 Ga. (AYP part number)

$7.49

$

In Stock, only 1 left!

0

19

Poulan 532120068

Knob, Seat 1/2-13 Unc (AYP part number)
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

20

Poulan 532124238

Cap, Spring Seat (AYP part number)

$

$

Not available

21

Poulan 532139888

Bolt, Shoulder 5/16-18 Unc (AYP part number)

$6.49

$

In Stock, only 1 left!

0

22

Poulan 873680500

Nut, Crownlock 5/16-18 Unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0
