PP 22H50 KA - Poulan Pro Lawn Tractor ELECTRICAL Parts Diagram

Lawn Tractor

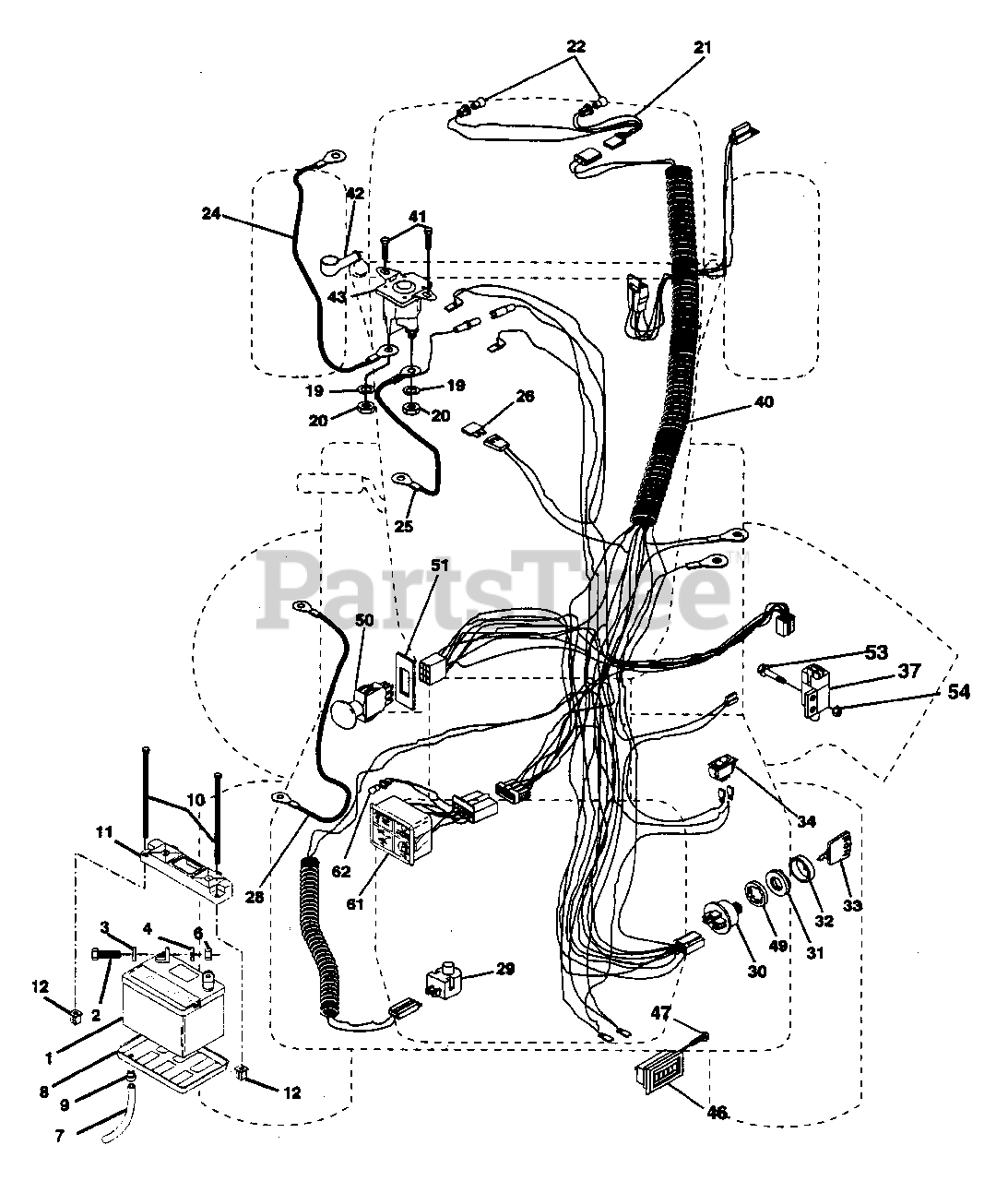

ELECTRICAL Parts Diagram

  • Title
1

Poulan 532144927

Battery (AYP part number)
(Superseded to 532125603)

$194.99

$

In Stock, only 1 left!

0

2

Poulan 874760412

Bolt Hex Head 1/4-20 x 3/4 (AYP part number)

$7.49

$

In Stock, only 1 left!

0

3

Poulan 810040400

Washer, Lock 1/4 (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

4

Poulan 819091016

Washer 9/32 x 5/8 x 16 Ga (AYP part number)
(Superseded to 596582301)

$3.99

$

In Stock, Qty 5

0

6

Poulan 873220400

Nut Fin Hex 1/4-20 (AYP part number)
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

7

Poulan 532007697

Tube Plastic (AYP part number)

$

$

Not available

8

Poulan 532124886

Tray, Battery (AYP part number)
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

9

Poulan 532109596

Clamp, Hose (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 532145211

Bolt, Battery Front 1/4-20 x 7.5 Zinc (AYP part number)
(Superseded to 532150177)

$

$

Not available

11

Poulan 532145209

Holddown Battery Dash Mount (AYP part number)
(Superseded to 532150109)

$

$

Not available

12

Poulan 532145769

Nut, Push Nylon 1.4" Battery Front (AYP part number)
(Superseded to 532150177)

$

$

Not available

19

Poulan 810090400

Washer, Lock 1/4 (AYP part number)
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

20

Poulan 873350400

Nut, Jam Hex 1/4-20 (AYP part number)
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

21

Poulan 532136850

Harness Socket Light w/4152J (AYP part number)

$

$

Not available

22

Poulan 532004152

Bulb Light (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

24

Poulan 532004014

Cable, Starter (AYP part number)

$

$

Not available

25

Poulan 532146686

Cable, Battery (AYP part number)

$10.99

$

Usually ships in 3-10 days

0

26

Poulan 532108824

Fuse (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

28

Poulan 532006408

Cable, Ground (AYP part number)

$

$

Not available

29

Poulan 532121305

Switch, Plunger (AYP part number)
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

30

Poulan 532144921

Switch, Ign (AYP part number)
(Superseded to 532145499)

$66.99

$

In Stock, only 1 left!

0

31

Poulan 532140400

Nut, Ignition Switch (AYP part number)
(Superseded to 532145774)

$6.49

$

Usually ships in 3-10 days

0

32

Poulan 532141226

Cover Switch Key (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

33

Poulan 532140401

Key (AYP part number)

$6.99

$

In Stock, Qty 8

0

34

Poulan 532110712

Switch, Light (AYP part number)

$9.49

$

In Stock, only 4 left!

0

37

Poulan 532109553

Intlk Switch (AYP part number)
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

40

Poulan 532147341

Harness Ign. (AYP part number)
(Superseded to 532151873)

$

$

Not available

41

Poulan 817720408

Screw 1/4-20 x 1/2 (AYP part number)
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

42

Poulan 532131563

Cover, Terminal Red (AYP part number)
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Poulan 532145673

Solenoid (AYP part number)
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

46

Poulan 532110940

Meter Hour (AYP part number)
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

47

Poulan 817011008

Screw #10-24 x 1/2 (AYP part number)

$

$

Not available

49

Poulan 811151000

Washer, Lock Internal Tooth 5/8 (AYP part number)

$

$

Not available

50

Poulan 532140404

Switch, PTO (AYP part number)
(Superseded to 532154959)

$28.99

$

In Stock, only 3 left!

0

51

Poulan 532140405

Ring Retainer PTO (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

53

Poulan 871031008

Screw Hex Washer Hd #10-32 x 1 (AYP part number)
(Superseded to 874641008)

$2.99

$

Usually ships in 3-10 days

0

54

Poulan 873951000

Nut Keps #10-32 (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

61

Poulan 532138101

Light Pkg Asm (AYP part number)

$

$

Not available

62

Poulan 532110143

Bulb, Light Pkg. (AYP part number)

$

$

Not available
