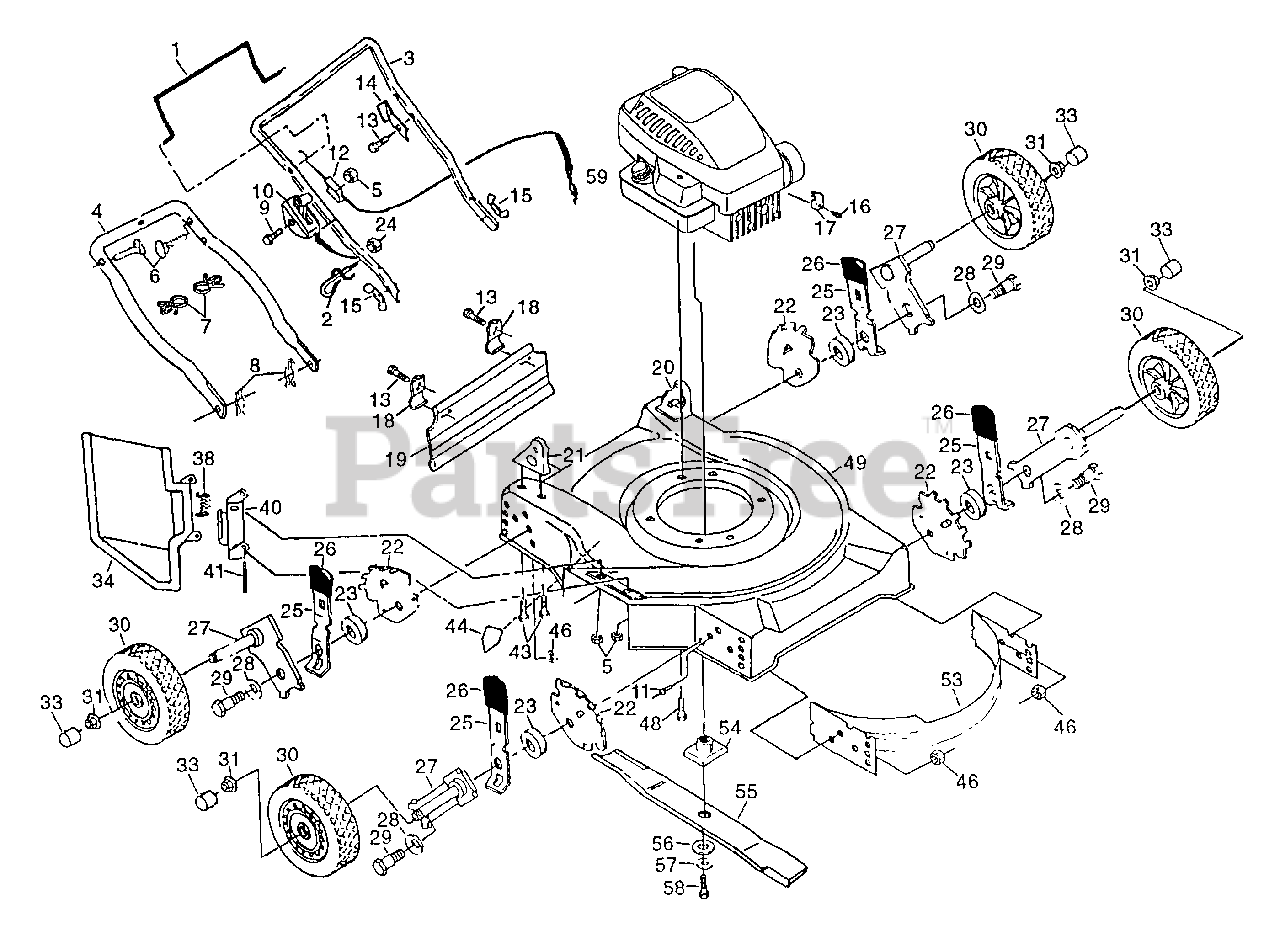

PP 2240 A - Poulan Pro Walk-Behind Mower Assembly Parts Diagram

Walk-Behind Mower

Assembly Parts Diagram

  • Title

1

Poulan 86902

Control Bar
(Superseded to 532086902)

$

$

Not available

2

Poulan 132001

Rope Guide (AYP part number)
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

3

Poulan 145645X479

Upper Handle (AYP part number)
(Superseded to 532160223)

$

$

Not available

4

Poulan 157081X479

Lower Handle
(Superseded to 532157081)

$

$

Not available

5

Poulan 63601

Locknut

$

$

Not available

6

Poulan 131959

Handle Bolt 5/16-18 x 1-3/4 (AYP part number)
(Superseded to 532183724)

$

$

Not available

7

Poulan 151517

Cable Clip
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

8

Poulan 51793

Hairpin Cotter
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

9

Poulan 144929

Hex Washer Head Screw 1/4-20 x 2-1/8
(Superseded to 532183365)

$6.49

$

Usually ships in 3-10 days

0

10

Poulan 700644

Throttle Control
(Superseded to 532700644)

$17.99

$

Usually ships in 3-10 days

0

11

Poulan 128415

Pop Rivet
(Superseded to 532128415)

$4.99

$

Usually ships in 3-10 days

0

12

Poulan 130861

Engine Zone Control Cable
(Superseded to 532130861)

$

$

Not available

13

Poulan 750097

Hex Washer Head Screw #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

14

Poulan 850733X004

Up-Stop Bracket
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

15

Poulan 128638

Wing Nut
(Superseded to 532128638)

$7.49

$

In Stock, Qty 8

0

16

Poulan 83816

Screw #10 x 5/8
(Superseded to 532083816)

$6.49

$

Usually ships in 3-10 days

0

17

Poulan 532111190

Cable Clamp (AYP part number)

$

$

Not available

18

Poulan 87584X004

Skirt Bracket (AYP part number)
(Superseded to 532192301)

$

$

Not available

19

Poulan 140540

Rear Deflector (AYP part number)
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

20

Poulan 151667X479

Handle Bracket Assembly (Left) (AYP part number)
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

21

Poulan 151665X479

Handle Bracket Assembly (Right) (AYP part number)
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

22

Poulan 750085X007

Wheel Adjusting Bracket
(Superseded to 532410807)

$4.99

$

Usually ships in 3-10 days

0

23

Poulan 146630

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

24

Poulan 63601

Keps Locknut 1/4-20

$

$

Not available

25

Poulan 700331X004

Selector Spring
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

26

Poulan 87877

Selector Knob
(Superseded to 532087877)

$6.49

$

In Stock, only 1 left!

0

27

Poulan 145935X004

Axle Arm Assembly
(Superseded to 532145935)

$

$

Not available

28

Poulan 62335

Belleville Washer
(Superseded to 532062335)

$9.99

$

Usually ships in 3-10 days

0

29

Poulan 142748

Shoulder Bolt
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

30

Poulan 752005

Wheel & Tire Assembly
(Superseded to 583604401)

$

$

Not available

31

Poulan 83923

Flanged Locknut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

33

Poulan 800090

Hubcap
(Superseded to 584458901)

$18.99

$

Usually ships in 3-10 days

0

34

Poulan 145282

Discharge Guard

$

$

Not available

38

Poulan 152186

Torsion Spring
(Superseded to 532152186)

$6.49

$

Usually ships in 3-10 days

0

40

Poulan 147775

Housing Bracket Assembly
(Superseded to 532147775)

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 147286

Hinge Rod
(Superseded to 532147286)

$8.99

$

In Stock, Qty 9

0

43

Poulan 149741

Screw 5/16-18 x 3/4
(Superseded to 532149741)

$7.49

$

In Stock, Qty 5

0

44

Poulan 107339

Danger Decal (AYP part number)

$

$

Not available

46

Poulan 751592

Locknut 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

48

Poulan 150406

Hex Head Thread Rolling Screw 3/8-16 x 1
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

49

Poulan 702159

Mower Housing (AYP part number)

Note: (Incl. Ref. #44)

$

$

Not available

53

Poulan 700929X479

Front & Rear Baffle

Note: Rear not shown

$

$

Not available

54

Poulan 850977

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

55

Poulan 141114

Blade 22"
(Superseded to 532141114)

$28.99

$

In Stock, only 1 left!

0

56

Poulan 851074

Hardened Washer
(Superseded to 532851074)

$4.99

$

In Stock, only 4 left!

0

57

Poulan 850263

Helical Lockwasher 3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

58

Poulan 851084

Hex Head Screw 3/8-24 x 1-3/8 (Grd. 8)
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

59

Engine - Briggs & Stratton

Note: Model No. 10A902

$

$

Not available

Poulan 145655

Operator's Manual (English)

$2.99

$

Usually ships in 3-10 days

0

Poulan 145656

Operator's Manual (French)

$2.99

$

Usually ships in 3-10 days

0

Poulan 159348

Replacement Parts Manual

$2.49

$

Usually ships in 3-10 days

0

Poulan GCK3200

Grass Catcher (AYP part number)

Note: Available accessory - not included with mower.

$

$

Not available

Poulan MK1000

Mulcher Kit (AYP part number)

Note: Available accessory - not included with mower.

$

$

Not available
