PP 220 - Poulan Pro Chainsaw, Type 4 Engine Type 4 Parts Diagram

Chainsaw, Type 4

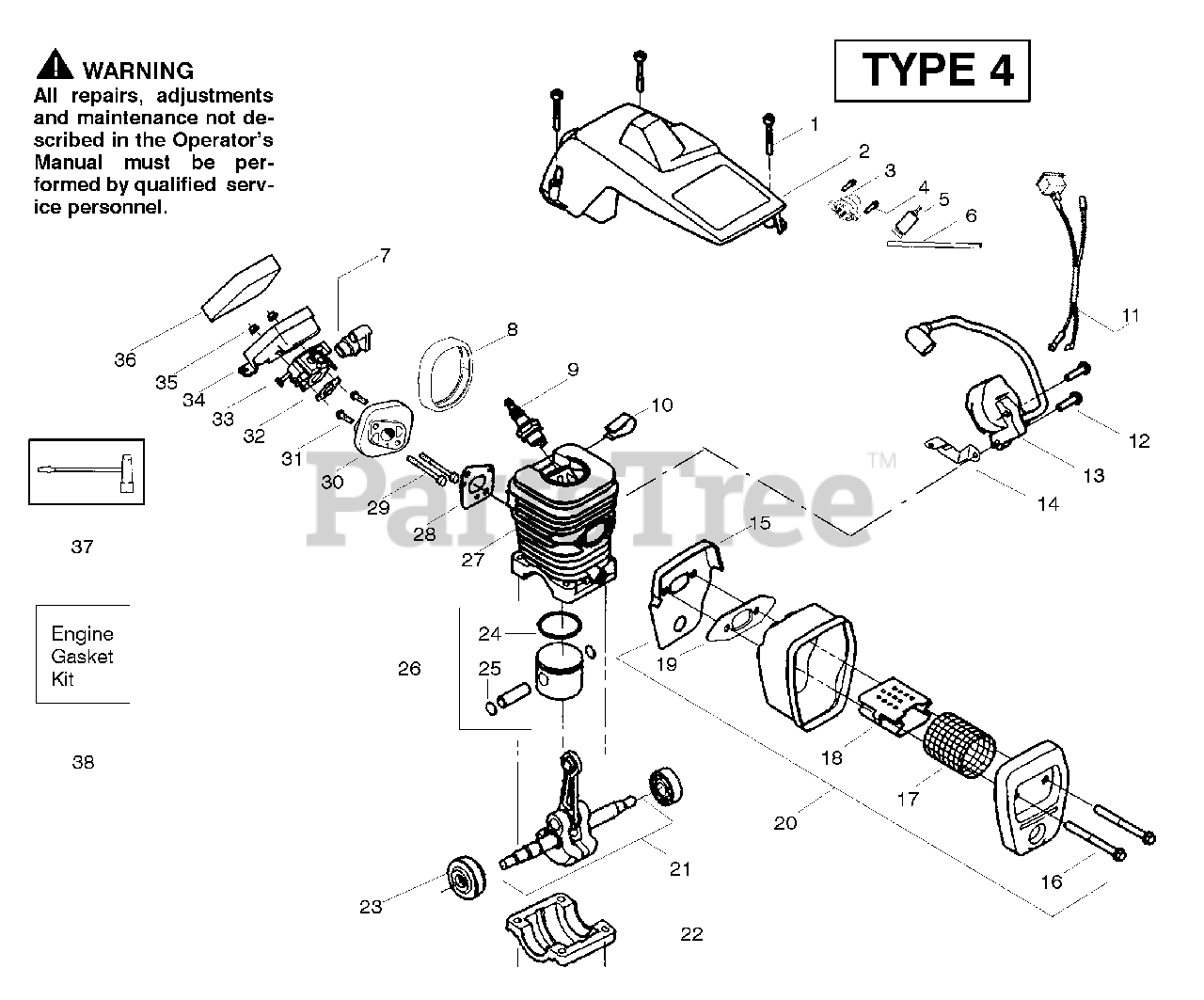

Engine Type 4 Parts Diagram

  • Title

1

Poulan 530016153

Screw

$6.49

$

In Stock, only 2 left!

0

2

Poulan 530071310

Shield-Cylinder

$

$

Not available

3

Poulan 530047213

Assy-Air Purge
(Superseded to 530071835)

$11.99

$

In Stock, Qty 9

0

4

Poulan 530015780

Screw

$6.49

$

In Stock, only 2 left!

0

5

Poulan 530095646

Assy-Fuel Pick-up

$6.99

$

In Stock, Qty 19

0

6

Poulan 530069247

Kit-Line Purge/Carb. (Small Dia)

$7.99

$

In Stock, Qty 20+

0

7

Poulan 530035526

Grommet-Carb Adjust.

$

$

Not available

8

Poulan 530054144

Seal-Carb Adapter

$

$

Not available

9

Poulan 952030150

Spark Plug (RCJ-7Y)

$3.99

$

In Stock, Qty 20+

0

10

Poulan 530016136

Clip-High Tension Lead

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 530049117

Assy-Wire Harness

Note: (includes switch)

$

$

Not available

12

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 16

0

13

Poulan 530039198

Module-Ignition

$56.99

$

In Stock, only 1 left!

0

14

Poulan 530047442

Strap-Ground

$3.99

$

Usually ships in 3-10 days

0

15

Poulan 530049870

Plate-Muffler Back

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 530016132

Screw

$6.49

$

In Stock, Qty 10

0

17

Poulan 530036103

Screen-Spark

$

$

Not available

18

Poulan 530037813

Muffler Diffuser

$4.99

$

In Stock, only 1 left!

0

19

Poulan 530019221

Muffler Gasket

$3.99

$

Usually ships in 3-10 days

0

20

Poulan 530047207

Muffler Ass'y.
(Superseded to 530071904)

Note: (Incl. 15-19)

$20.99

$

Usually ships in 3-10 days

0

21

Poulan 530047062

Assy-Crankshaft
(Superseded to 545113101)

$72.99

$

In Stock, only 1 left!

0

22

Poulan 530037935

Cap-Crankcase

$10.99

$

Usually ships in 3-10 days

0

23

Poulan 530056363

Assy-Seal & Bearing

$18.99

$

In Stock, only 2 left!

0

24

Poulan 530038729

Ring-Piston
(Superseded to 545160401)

$6.49

$

In Stock, only 2 left!

0

25

Poulan 530015697

Retainer - Piston Pin

$6.49

$

In Stock, Qty 6

0

26

Poulan 530069719

Kit-Piston

Note: (incl. 24,25)

$

$

Not available

27

Poulan 530012552

Cylinder

$43.99

$

Usually ships in 3-10 days

0

28

Poulan 530019249

Gasket - Carb. Adapter

$6.49

$

In Stock, only 1 left!

0

29

Poulan 530016187

Screw

$6.49

$

In Stock, only 2 left!

0

30

Poulan 530049700

Adapter-Carb.

$10.99

$

In Stock, only 1 left!

0

31

Poulan 530016386

Screw

$8.99

$

In Stock, only 1 left!

0

32

Poulan 530019239

Carb. Gasket
(Superseded to 530019271)

$6.49

$

In Stock, only 1 left!

0

33

Poulan 530071621

Kit-Carburetor (WT-625)

$

$

Not available

34

Poulan 530047604

Housing-Air Filter

$

$

Not available

35

Poulan 530016101

Nut

$6.49

$

In Stock, only 2 left!

0

36

Poulan 530037793

Air Filter - Foam

$4.99

$

In Stock, Qty 6

0

37

Poulan 530031135

Scrench
(Superseded to 530031163)

$9.99

$

In Stock, Qty 12

0

38

Poulan 530069608

Kit-Engine Gasket

Note: (incl. 19,28,32)

$8.99

$

In Stock, Qty 10

0

38

Poulan 530163654

Operator Manual

Note: Not Shown

$

$

Not available

38

Poulan 530057267

Instruction Decal

Note: Not Shown

$

$

Not available
