PP 220 - Poulan Pro Chainsaw, Type 1 Starter Type 1-3 Parts Diagram

Chainsaw, Type 1

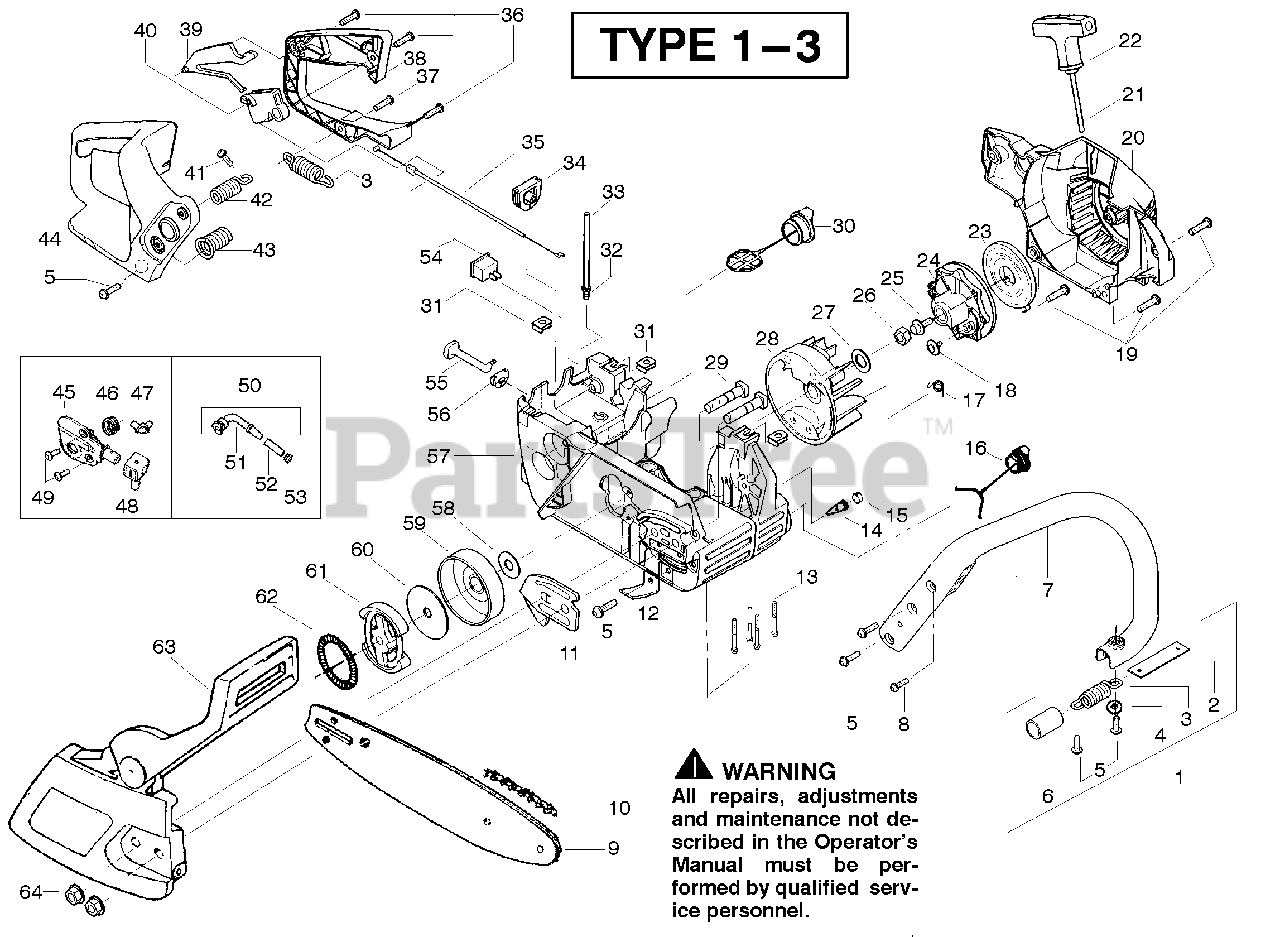

Starter Type 1-3 Parts Diagram

  • Title
1

Poulan 530047963

Assy.- Isolator
(Superseded to 545006036)

$13.99

$

In Stock, only 4 left!

0

2

Poulan 530047608

Limiter Strap
(Superseded to 530037009)

$

$

Not available

3

Poulan 530042082

Spring- Isolator
(Superseded to 545006036)

$13.99

$

In Stock, only 4 left!

0

4

$4.99

$

In Stock, only 4 left!

0

$6.49

$

In Stock, Qty 16

0

6

Poulan 530036142

Sleeve-AV Spring

$

$

Not available

7

Poulan 530047583

Front Handle
(Superseded to 545048001)

$

$

Not available

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 530044834

Bar (16" Quick Adjust)
(Superseded to 578138101)

$

$

Not available

9

Poulan 530044866

Bar (16" Pro Lam Quick Adj.)

$

$

Not available

10

Poulan 952051211

Chain-16"
(Superseded to 581562201)

$22.99

$

In Stock, only 2 left!

0

11

Poulan 530038238

Plate-Bar Mounting

$

$

Not available

12

Poulan 530029850

Chain Catcher

$6.49

$

In Stock, only 3 left!

0

13

$6.49

$

In Stock, Qty 10

0

14

Poulan 530026119

Check Valve

$5.99

$

In Stock, Qty 8

0

15

Poulan 530038264

Plug-Bronze Vent

$

$

Not available

16

Poulan 530010846

Oil Cap Ass'y.
(Superseded to 530057236)

$

$

Not available

17

Poulan 530023817

Spring-Starter Dog

$6.49

$

In Stock, Qty 5

0

18

$6.49

$

In Stock, only 1 left!

0

19

$6.49

$

In Stock, Qty 20+

0

20

Poulan 530049335

Fan Housing

$14.99

$

Usually ships in 3-10 days

0

21

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

22

Poulan 530049797

Starter Handle
(Superseded to 530056422)

$

$

Not available

23

Poulan 530027531

Recoil Spring
(Superseded to 545008015)

$7.99

$

In Stock, Qty 16

0

24

Poulan 530037817

Starter Pulley
(Superseded to 545034301)

$

$

Not available

25

$6.49

$

In Stock, Qty 7

0

26

Poulan 530016134

Nut- Flywheel

$6.49

$

In Stock, only 1 left!

0

27

Poulan 530015127

Washer- Flywheel

$6.49

$

In Stock, only 2 left!

0

28

Poulan 530039209

Flywheel Ass'y.
(Superseded to 530063575)

$

$

Not available

29

Poulan 530016133

Bolt - Bar

$6.49

$

In Stock, only 2 left!

0

30

Poulan 530047192

Fuel Cap Ass'y.
(Superseded to 580940901)

$7.99

$

In Stock, only 3 left!

0

31

Poulan 530015922

Nut - "U"-Type

$6.49

$

In Stock, Qty 5

0

32

Poulan 530023877

Fitting - Fuel Line

$5.99

$

In Stock, Qty 18

0

33

Poulan 530069216

Kit-Line purge/tank (large dia.)

$11.99

$

In Stock, Qty 20+

0

34

Poulan 530047631

Grommet-Cable

$2.49

$

In Stock, only 2 left!

0

35

Poulan 530047602

Cable-Throttle

$

$

Not available

36

$6.49

$

In Stock, only 2 left!

0

37

$6.49

$

In Stock, only 3 left!

0

38

Poulan 530047581

Cover-Rear Handle

$4.99

$

Usually ships in 3-10 days

0

39

Poulan 530036098

Throttle lockout

$

$

Not available

40

Poulan 530036097

Throttle trigger

$5.99

$

In Stock, only 3 left!

0

41

$4.99

$

In Stock, only 3 left!

0

42

Poulan 530071385

Isolator Assy. (Upper)
(Superseded to 545006036)

$13.99

$

In Stock, only 4 left!

0

43

Poulan 530053274

Isolator Assy. (Lower)
(Superseded to 545006036)

$13.99

$

In Stock, only 4 left!

0

44

Poulan 530047582

Rear Handle

$15.99

$

Usually ships in 3-10 days

0

45

Poulan 530071259

Oil Pump Kit

Note: (Incls. 45- 48)

$

$

Not available

46

Poulan 530037820

Gear-Worm Spring

$6.49

$

In Stock, only 3 left!

0

47

Poulan 530049477

Elbow-Oil Pickup

$4.99

$

In Stock, only 3 left!

0

48

Poulan 530019206

Seal Block

$6.49

$

Usually ships in 3-10 days

0

49

$4.99

$

In Stock, only 2 left!

0

50

Poulan 530047663

Oil Pick-up Ass'y

Note: (Incl. 51-53)

$6.99

$

In Stock, Qty 5

0

51

Poulan 530038373

Pick-up Oiler

$4.99

$

Usually ships in 3-10 days

0

52

Poulan 530037821

Oil Filter
(Superseded to 530056533)

$6.49

$

In Stock, only 2 left!

0

53

Poulan 530030189

Plug-Oil Filter
(Superseded to 530056533)

$6.49

$

In Stock, only 2 left!

0

54

Poulan 530069572

Kit - Switch

$9.49

$

In Stock, only 3 left!

0

55

Poulan 530047605

Knob - Choke

$4.99

$

In Stock, Qty 7

0

56

Poulan 530049005

Grommet-Choke knob

$

$

Not available

57

Poulan 530047621

Assy. - Chassis

Note: (incl. 16,29,30,33, and from page two 5,6)

$

$

Not available

58

Poulan 530015907

Washer - thrust

$

$

Not available

59

Poulan 530047061

Clutch drum assy- with bearing

$17.99

$

In Stock, Qty 5

0

60

Poulan 530015611

Washer - Clutch

$6.49

$

In Stock, only 2 left!

0

61

Poulan 530014949

Assy. Clutch

Note: (incl 62)

$22.99

$

In Stock, only 1 left!

0

62

Poulan 530094188

Spring - Clutch
(Superseded to 530014949)

$22.99

$

In Stock, only 1 left!

0

63

Poulan 530054999

Kit - Chain Brake
(Superseded to 545139915)

$

$

Not available

64

Poulan 530015917

Nut-Bar Mounting

$3.99

$

In Stock, Qty 10

0
