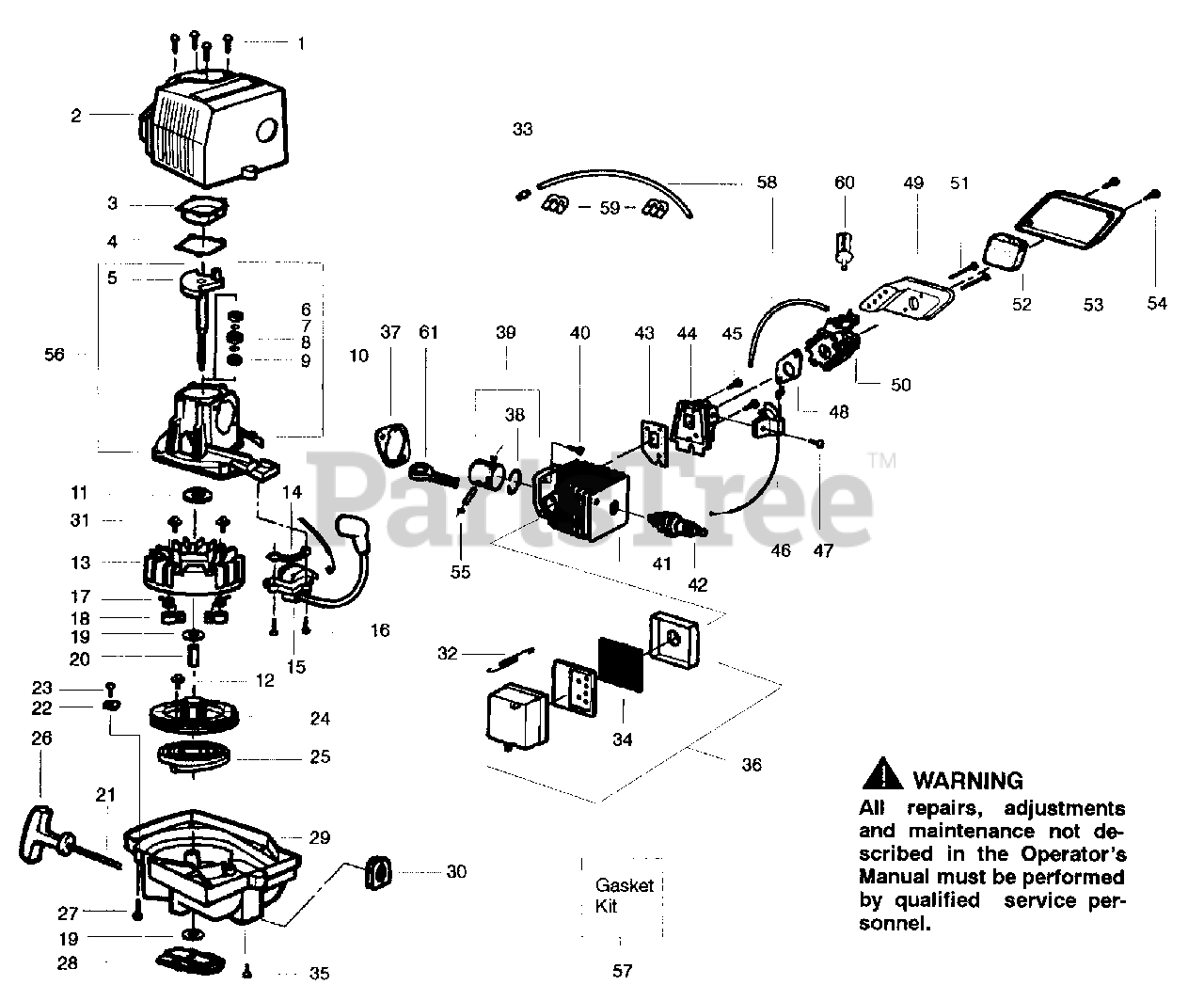

PP 22 - Poulan Pro Hedge Trimmer Power Unit Parts Diagram

Hedge Trimmer

Power Unit Parts Diagram

  • Title

1

Poulan 530015810

Screw - Shroud
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

2

Poulan 530038014

Shroud

$15.99

$

Usually ships in 3-10 days

0

3

Poulan 530029929

Crankcase Cover

$3.99

$

Usually ships in 3-10 days

0

4

Poulan 530019181

Gasket-Shrd./C'case

$6.49

$

In Stock, only 2 left!

0

5

Poulan 530014307

Crankshaft Ass'y.

$18.99

$

Usually ships in 3-10 days

0

6

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

7

Poulan 530015945

Retainer - C'case

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 530019179

Crankcase Seal

$

$

Not available

9

Poulan 530032124

Outer Bearing

$7.49

$

Usually ships in 3-10 days

0

10

Poulan 530014861

Crankcase Ass'y.

Note: (Incl. 6-9)

$

$

Not available

11

Poulan 530015941

Retaining Ring

$4.99

$

Usually ships in 3-10 days

0

12

Poulan 530016080

Screw - Pulley

$6.49

$

Usually ships in 3-10 days

0

13

Poulan 530039149

Flywheel Ass'y.
(Superseded to 545221701)

$28.99

$

In Stock, only 1 left!

0

14

Poulan 530036145

Spacer - Ignit. Mod.

$3.99

$

In Stock, only 3 left!

0

15

Poulan 530039163

Ignition Module

$53.99

$

In Stock, only 1 left!

0

16

Poulan 530015954

Screw - Ignit. Mod.

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 530047570

Spring - Starter Dog

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 530029939

Starter Dog

$

$

Not available

19

Poulan 530015828

Washer - Flat

$4.99

$

Usually ships in 3-10 days

0

20

Poulan 530015930

Flywheel Spacer

$

$

Not available

21

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 19

0

22

Poulan 530015963

Retainer

$0.99

$

Usually ships in 3-10 days

0

23

Poulan 530015496

Screw - Retainer

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 530069353

Starter Pulley Kit

$

$

Not available

25

Poulan 530042085

Starter Spring
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

26

Poulan 530027569

Starter Handle

$6.49

$

Usually ships in 3-10 days

0

27

Poulan 530015886

Screw - Fan Housing

$6.49

$

In Stock, only 3 left!

0

28

Poulan 530014396

Clutch Ass'y. Kit

$

$

Not available

29

Poulan 530014635

Fan Housing

$

$

Not available

30

Poulan 530019182

Grommet

$3.99

$

Usually ships in 3-10 days

0

31

Poulan 530015882

Screw - Flywheel

$

$

Not available

32

Poulan 530016197

Muffler Spring

$4.99

$

In Stock, Qty 5

0

33

Poulan 530023877

Fuel Line Fitting

$5.99

$

In Stock, Qty 17

0

34

Poulan 530036180

Muffler Screen

$

$

Not available

35

Poulan 530015934

Screw - Fan Hsg./Shrd.

$4.99

$

In Stock, only 1 left!

0

36

Poulan 530069659

Muffler Kit

$

$

Not available

37

Poulan 530019223

Cylinder Gasket

$4.99

$

In Stock, only 3 left!

0

38

Poulan 530036404

Piston Ring

$

$

Not available

39

Poulan 530069621

Piston Kit

Note: (Incl. 38 & 55)

$36.99

$

Usually ships in 3-10 days

0

40

Poulan 530015953

Screw - Cylinder

$6.49

$

In Stock, Qty 7

0

41

Poulan 530069618

Cylinder

$84.99

$

Usually ships in 3-10 days

0

42

Poulan 952030201

Spark Plug (RCJ-8Y)
(Superseded to 952030150)

$3.99

$

In Stock, Qty 20+

0

43

Poulan 530019233

Gasket - Cylin./Carb.

$3.99

$

In Stock, only 1 left!

0

44

Poulan 530049024

Carb. Adaptor

$6.91

$

Usually ships in 3-10 days

0

45

Poulan 530016014

Screw - Carb. Adap.

$6.49

$

In Stock, only 3 left!

0

46

Poulan 530014384

Throttle Cable Ass'y.

$

$

Not available

47

Poulan 530015775

Screw - Throtl. Cable

$6.49

$

In Stock, only 2 left!

0

48

Poulan 530019194

Gasket - Carb.

$6.49

$

In Stock, only 4 left!

0

49

Poulan 530036192

Air Box

$3.99

$

Usually ships in 3-10 days

0

50

Poulan 530035306

Carburetor WT 221 - Type 1
(Superseded to 530035305)

$

$

Not available

50

Poulan 530069682

Carburetor WT 379 - Type 2
(Superseded to 530071633)

$53.99

$

In Stock, only 1 left!

0

51

Poulan 530015849

Screw - Air Box

$6.49

$

In Stock, only 1 left!

0

52

Poulan 530029934

Air Filter Foam

$

$

Not available

53

Poulan 530036193

Air Filter Cover

$

$

Not available

54

Poulan 530015635

Screw - A.F. Cover

$5.99

$

In Stock, only 4 left!

0

55

Poulan 530015162

Piston Pin Retainer

$6.49

$

In Stock, only 1 left!

0

56

Poulan 530014973

C'case & C'shaft Assy.
(Superseded to 530071626)

Note: (Incl. 5 & 10)

$60.99

$

In Stock, only 1 left!

0

57

Poulan 530069616

Gasket Kit

Note: (Incl. 4, 37, 43 & 48)

$9.99

$

Usually ships in 3-10 days

0

58

Poulan 530069599

Fuel Line Kit

Note: (Incl. Fuel and Vent lines)

$7.49

$

In Stock, only 2 left!

0

59

Poulan 530016103

Retainer Clip

$6.49

$

In Stock, Qty 5

0

60

Poulan 530095646

Fuel Pick-up Ass'y.

$6.99

$

In Stock, Qty 19

0

61

Poulan 530069615

Connecting Rod Kit

$24.99

$

Usually ships in 3-10 days

0

Poulan 530068527

Operator's Manual - Type 1

Note: (Not Shown)

$

$

Not available

Poulan 530087721

Operator's Manual - Type 2

Note: (Not Shown)

$

$

Not available

Poulan 530047462

Instruction Decal

Note: (Not Shown)

$

$

Not available
