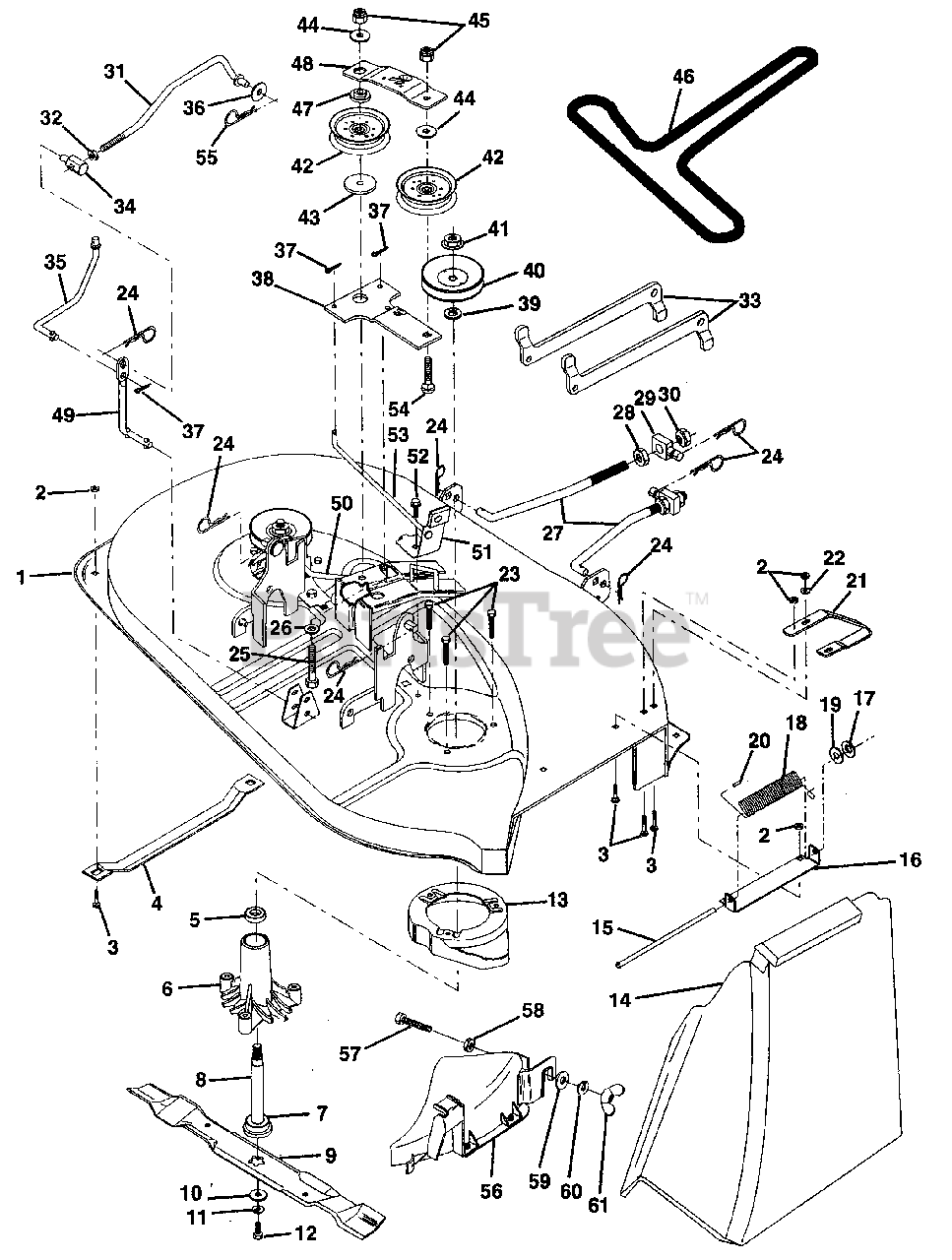

PP 21R38 MA - Poulan Pro Lawn Tractor MOWER DECK Parts Diagram

Lawn Tractor

MOWER DECK Parts Diagram

  • Title

1

Poulan 532132564

Mower Deck Assembly (AYP part number)

$

$

Not available

2

Poulan 873680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

3

Poulan 872140506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

4

Poulan 532125074

Runner, LH (AYP part number)
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

5

Poulan 532110485

Bearing (AYP part number)

$13.99

$

In Stock, Qty 11

0

6

Poulan 532128774

Housing, Mandrel

$34.99

$

Usually ships in 3-10 days

0

7

Poulan 532129895

Bearing (AYP part number)
(Superseded to 738220419)

$17.99

$

In Stock, only 2 left!

0

8

Poulan 532133172

Shaft & Bearing Assembly, Mandrel (Includes Key Number 7)
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

9

Poulan 532134148

Blade, Mulching

$26.99

$

In Stock, only 2 left!

0

10

Poulan 532129962

Washer, Hardened (AYP part number)
(Superseded to 532140296)

$6.99

$

In Stock, only 2 left!

0

11

Poulan 810030600

Washer, Lock 3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

12

Poulan 532850857

Bolt 3/8-24 x 1-1/4 Grade 8 (AYP part number)

$4.99

$

In Stock, only 1 left!

0

13

Poulan 532128961

Stripper, Mower, Vented (AYP part number)
(Superseded to 532140329)

$7.49

$

Usually ships in 3-10 days

0

14

Poulan 532106736

Shield, Deflector (AYP part number)

$

$

Not available

15

Poulan 532106735

Rod, Hinge (AYP part number)

$10.99

$

In Stock, only 1 left!

0

16

Poulan 532105896

Bracket Assembly, Deflector (AYP part number)
(Superseded to 532137607)

$6.49

$

In Stock, only 2 left!

0

17

Poulan 532110452

Pushnut (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 532106734

Spring, Deflector (AYP part number)
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

19

Poulan 819111016

Washer 11/32 x 5/8 x 16 Gauge (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

20

Poulan 532105304

Cap, Sleeve (AYP part number)

$4.99

$

In Stock, Qty 20+

0

21

Poulan 532128772

Runner, RH (AYP part number)

$

$

Not available

22

Poulan 819111216

Washer 11/32 x 3/4 x 16 Gauge (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

23

Poulan 532078158

Bolt 5/16-18 x 1-1/4 (AYP part number)
(Superseded to 817580520)

$4.99

$

In Stock, only 3 left!

0

24

Poulan 532124670

Retainer, Spring (AYP part number)
(Superseded to 532085902)

$

$

Not available

25

Poulan 874600636

Bolt, Carriage 3/8-16 x 2-1/4 (AYP part number)
(Superseded to 874760636)

$6.49

$

Usually ships in 3-10 days

0

26

Poulan 819131612

Washer 13/32 x 1 x 12 Gauge (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

27

Poulan 532132256

Link Assembly, Front (AYP part number)

$

$

Not available

28

Poulan 873350800

Nut, Hex, Jam 1/2-13 UNC (AYP part number)
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

29

Poulan 532130171

Trunnion (AYP part number)
(Superseded to 532175689)

$

$

Not available

30

Poulan 873800800

Locknut with Washer Insert 1/2-13 UNC (AYP part number)
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

31

Poulan 532132553

Rod, Clutch, Primary (AYP part number)

$

$

Not available

32

Poulan 873350600

Nut, Hex, Jam 3/8-16 (AYP part number)
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

33

Poulan 532132559

Arm, Suspension, Rear (AYP part number)

$

$

Not available

34

Poulan 532133604

Trunnion 3/8-16 (AYP part number)

$17.99

$

Usually ships in 3-10 days

0

35

Poulan 532132554

Rod, Clutch, Secondary (AYP part number)

$

$

Not available

36

Poulan 819131316

Washer 13/32 x 13/16 x 16 Gauge (AYP part number)

$4.99

$

In Stock, Qty 5

0

37

Poulan 876020312

Pin, Cotter 3/32 x 3/4 (AYP part number)
(Superseded to 876020308)

$

$

Not available

38

Poulan 532133840

Idler Arm (AYP part number)

$

$

Not available

39

Poulan 532129963

Washer .150 Thick (AYP part number)
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

40

Poulan 532129206

Pulley, Mandrel (AYP part number)
(Superseded to 532153532)

$22.99

$

In Stock, only 2 left!

0

41

Poulan 873050900

Nut, Flangelock 9/16 (AYP part number)
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

42

Poulan 532131494

Pulley, Idler, Flat (AYP part number)
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

43

Poulan 532122052

Spacer, Retainer (AYP part number)
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

44

Poulan 819131612

Washer 13/32 x 1 x 12 Gauge (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

45

Poulan 873680600

Nut, Crownlock 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

46

Poulan 532131290

Belt (AYP part number)
(Superseded to 532144200)

$45.99

$

Usually ships in 3-10 days

0

47

Poulan 532133502

Spacer, Idler Arm (AYP part number)

$6.49

$

In Stock, only 1 left!

0

48

Poulan 532133503

Stiffener, Idler Arm (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

49

Poulan 532133551

Rod, Pivot (AYP part number)

$8.99

$

In Stock, only 1 left!

0

50

Poulan 532131289

Rod, Brake, LH (AYP part number)

$

$

Not available

51

Poulan 532130840

Brake Assembly (AYP part number)

$12.99

$

Usually ships in 3-10 days

0

52

Poulan 817490512

Screw, Hex Washer Head, Thd., Roll. 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

53

Poulan 532131288

Rod, Brake, RH (AYP part number)

$8.99

$

Usually ships in 3-10 days

0

54

Poulan 872110614

Bolt, Carriage 3/8-16 x 1-3/4 Grade 5 (AYP part number)
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0

55

Poulan 532124788

Spring, Retainer (AYP part number)
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

56

Poulan 532132803

Cover, Mulcher (AYP part number)

$66.99

$

Usually ships in 3-10 days

0

57

Poulan 874930620

Bolt, Hex 3/8-16 x 1-1/4 (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

58

Poulan 873750600

Locknut 3/8-16 (AYP part number)
(Superseded to 873770600)

$

$

Not available

59

Poulan 819132016

Washer 13/32 x 1-1/4 x 16 Gauge (AYP part number)
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

60

Poulan 810040600

Washer, Lock 3/8 (AYP part number)
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

61

Poulan 532135651

Wing Nut (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

Poulan 532135404

Mower Deck, Complete Std. Deck-Doesn't Inc (AYP part number)

Note: Mulcher Blade,Cover,or Cover Hardware; Not Shown.

$

$

Not available

Poulan 532130794

Mandrel Assembly (AYP part number)

Note: (Includes Key Numbers 5-8, 10-12, 39 and 41); Not Shown.

$56.99

$

In Stock, Qty 5

0
