PP 21R38 MA - Poulan Pro Lawn Tractor HOOD Parts Diagram

Lawn Tractor

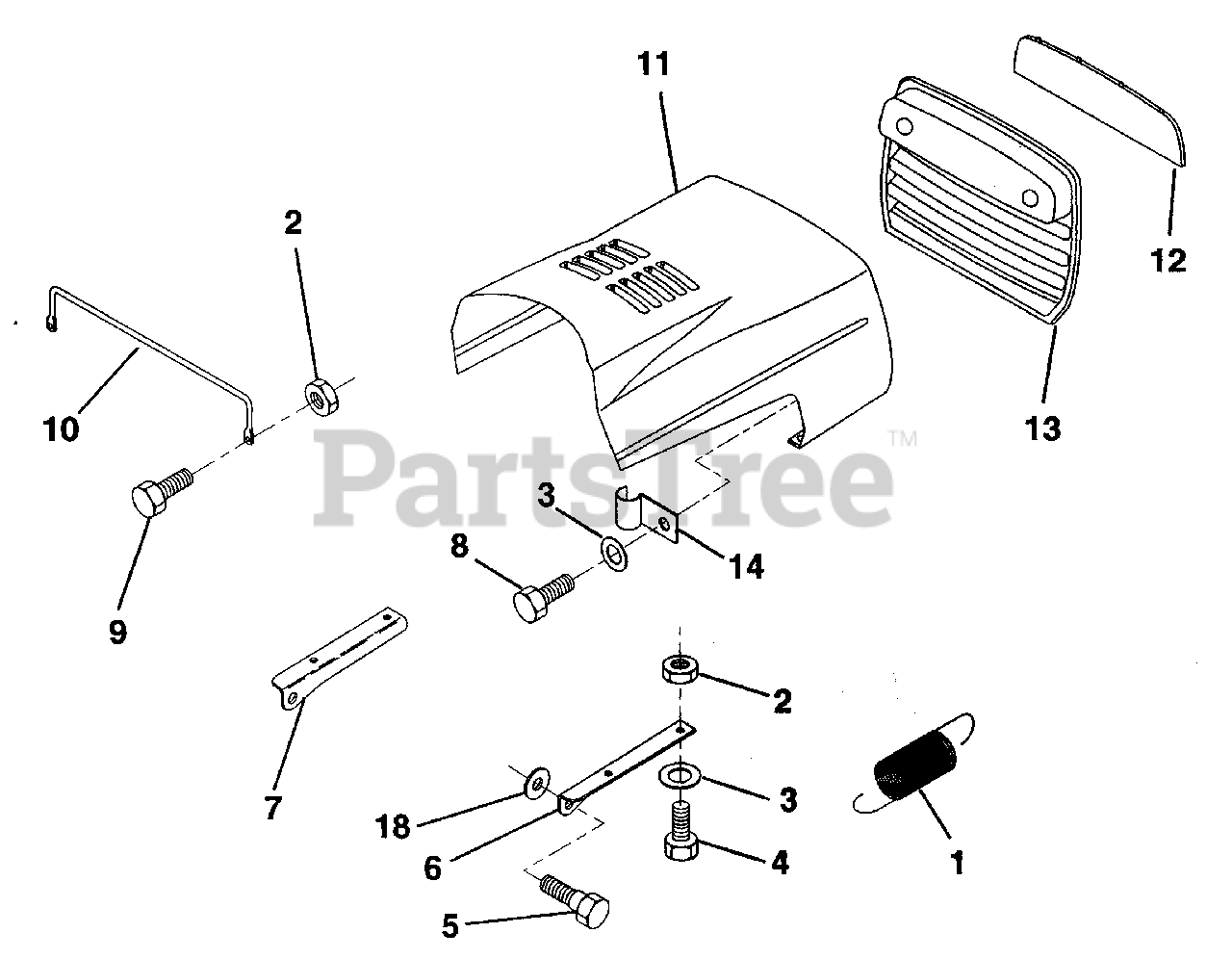

HOOD Parts Diagram

  • Title

1

Poulan 532124657

Spring, Extension (AYP part number)

$10.99

$

Usually ships in 3-10 days

0

2

Poulan 873510400

Nut, Hex, Keps 1/4-20 UNC (AYP part number)
(Superseded to 873640400)

$

$

Not available

3

Poulan 819091016

Washer 9/32 x 5/8 x 16 Gauge (AYP part number)
(Superseded to 596582301)

$3.99

$

In Stock, Qty 5

0

4

Poulan 874780410

Bolt, Hex, Fin 1/4-20 UNC x 5/8 Grade 5 (AYP part number)
(Superseded to 74780410)

$3.99

$

In Stock, only 1 left!

0

5

Poulan 532126675

Bolt, Shoulder (AYP part number)
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

6

Poulan 532122549

Bracket, Hood, RH (AYP part number)
(Superseded to 122549X)

$

$

Not available

7

Poulan 532122548

Bracket, Hood, LH (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

8

Poulan 817411310

Screw, Hex, Fin #13-16 Hi-Lo x 5/8 (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

9

Poulan 874780412

Bolt, Hex, Fin 1/4-20 x 3/4 Grade 5 (AYP part number)
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

10

Poulan 532123693

Brace, Hood (AYP part number)

$

$

Not available

11

Poulan 532125386

Hood (AYP part number)

$

$

Not available

12

Poulan 532122035

Lens (AYP part number)

$14.99

$

Usually ships in 3-10 days

0

13

Poulan 532127029

Grill (AYP part number)

$

$

Not available

14

Poulan 532124996

Clip, Fuel (AYP part number)
(Superseded to 532002751)

$

$

Not available

18

Poulan 819111116

Washer 11/32 x 11/16 x 16 Gauge (AYP part number)
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0
