PP 21R38 MA - Poulan Pro Lawn Tractor FRONT AXLE Parts Diagram

Lawn Tractor

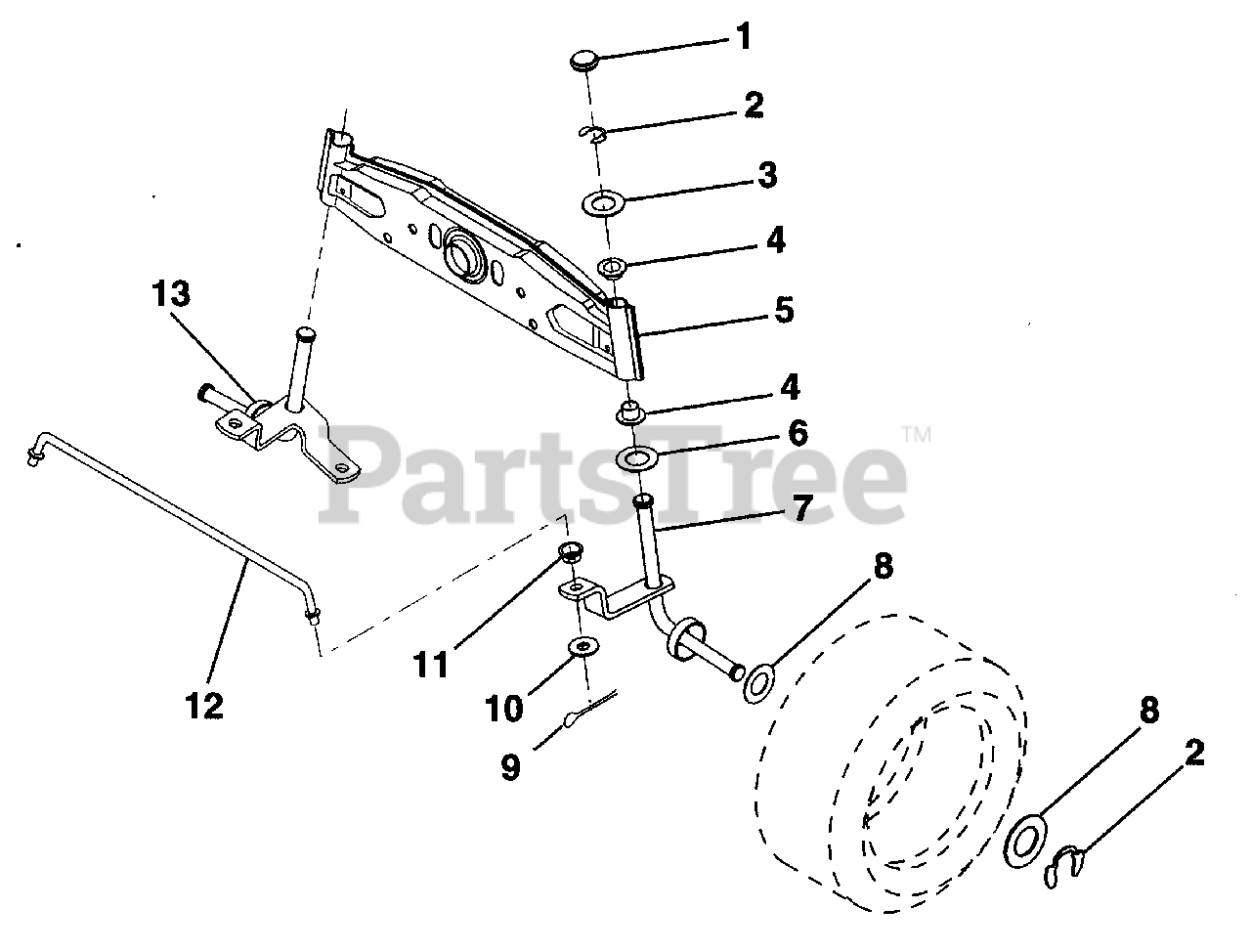

FRONT AXLE Parts Diagram

  • Title

1

Poulan 532121232

Cap, Spindle (AYP part number)

$4.99

$

In Stock, Qty 8

0

2

Poulan 812000029

Ring, Klip (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

3

Poulan 532121748

Washer 25/32 x 1-5/8 x 16 Gauge (AYP part number)

$4.99

$

In Stock, Qty 20+

0

4

Poulan 532121922

Nyliner (AYP part number)

$6.99

$

In Stock, Qty 7

0

5

Poulan 532121914

Axle, Front (AYP part number)

$

$

Not available

6

Poulan 532124931

Bearing, Thrust (AYP part number)
(Superseded to 532006266)

$7.49

$

In Stock, Qty 10

0

7

Poulan 532121919

Spindle Assembly, RH (AYP part number)

$

$

Not available

8

Poulan 532121749

Washer 25/32 x 1-1/4 x 16 Gauge (AYP part number)

$3.49

$

Usually ships in 3-10 days

0

9

Poulan 876020412

Pin, Cotter 1/8 x 3/4 (AYP part number)
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

10

Poulan 819131316

Washer 13/32 x 13/16 x 16 Gauge (AYP part number)

$4.99

$

In Stock, Qty 5

0

11

Poulan 532126847

Bushing (AYP part number)

$5.99

$

In Stock, only 2 left!

0

12

Poulan 532121924

Rod, Tie (AYP part number)

$

$

Not available

13

Poulan 532121916

Spindle Assembly, LH (AYP part number)

$

$

Not available
