PP 21R38 MA - Poulan Pro Lawn Tractor ENGINE / THROTTLE Parts Diagram

Lawn Tractor

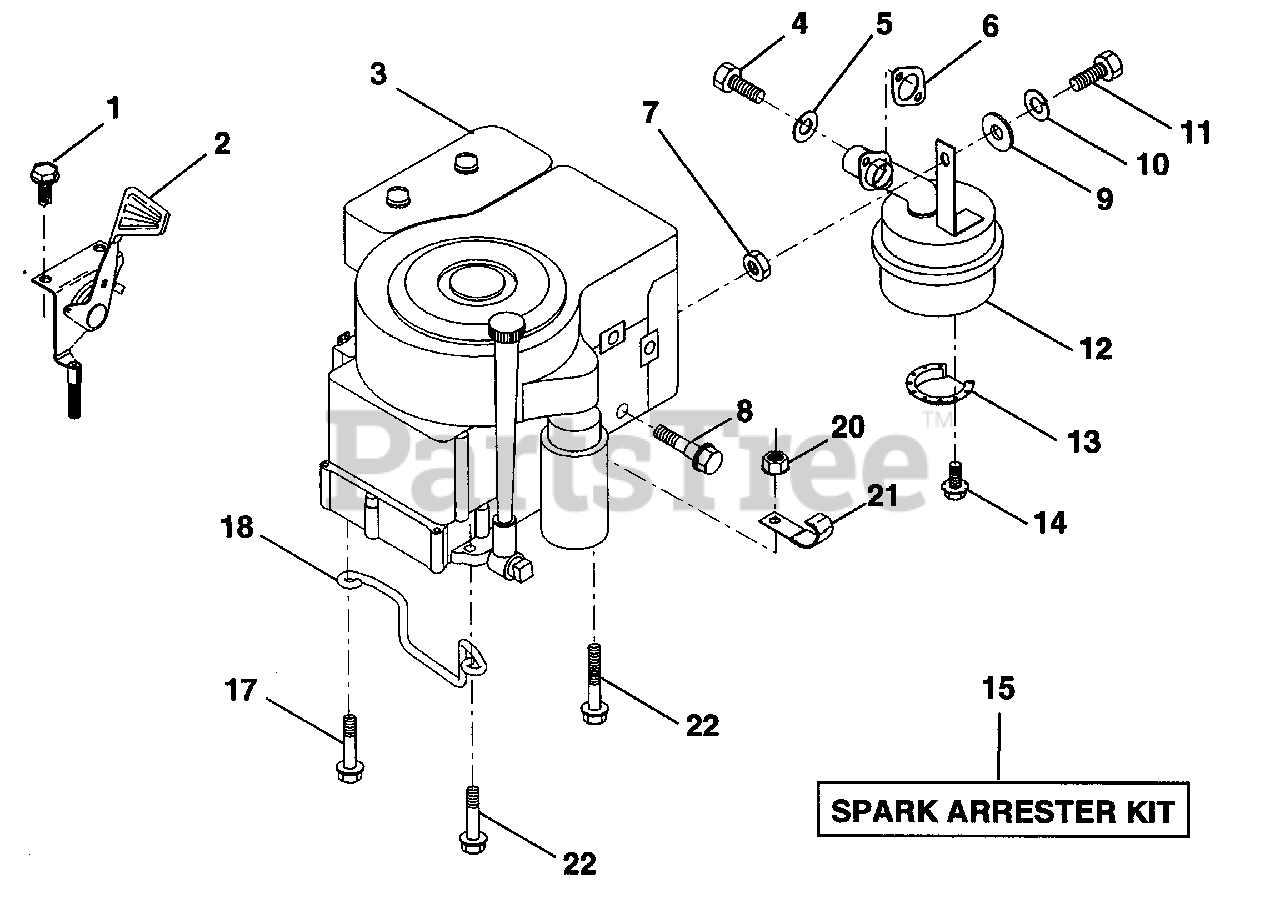

ENGINE / THROTTLE Parts Diagram

  • Title

1

Poulan 817720408

Screw, Hex Head, Thread Cutting 1/4-20 x 1/2 (AYP part number)
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

2

Poulan 532133025

Control, Throttle

$30.99

$

Usually ships in 3-10 days

0

4

Poulan 871070512

Screw, Hex Cap Head, 5/16-18 x 3/4 (AYP part number)
(Superseded to 532192334)

$

$

Not available

5

Poulan 810040500

Washer, Lock, Heavy Helical Spring 5/16 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

6

Poulan 532125593

Gasket, Exhaust (AYP part number)
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

7

Poulan 873220500

Nut, Hex, Fin. 5/16-18 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

8

Poulan 532121094

Bolt, Shoulder (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

9

Poulan 819101216

Washer 5/16 x 3/4 x 16 Gauge (AYP part number)
(Superseded to 734115441)

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 810040400

Washer, Lock, Heavy Helical Spring 1/4 (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

11

Poulan 874780412

Bolt, Hex, Fin. 1/4-20 UNC x 3/4 (AYP part number)
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

12

Poulan 532124097

Muffler (AYP part number)

$

$

Not available

13

Poulan 532101326

Deflector, Muffler (AYP part number)
(Superseded to 101326L)

$

$

Not available

14

Poulan 817030808

Screw, Hex Head, Spiderlock #8 x 1/2 ABTPS (AYP part number)
(Superseded to 817030814)

$

$

Not available

15

Poulan 532121851

Kit, Spark Arrester (Optional) (AYP part number)

$

$

Not available

17

Poulan 817490624

Screw, Hex Washer Head, Thd. Roll. 3/8-16 x 1-1/2 (AYP part number)
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

18

Poulan 532126636

Keeper, Ground Drive Belt (AYP part number)

$8.99

$

Usually ships in 3-10 days

0

20

Poulan 873510600

Nut, Keps 3/8-16 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

21

Poulan 532124996

Clip, Fuel Line (AYP part number)
(Superseded to 532002751)

$

$

Not available

22

Poulan 817490632

Screw, Thd. Roll. 3/8-16 x 2 (AYP part number)

$

$

Not available
