PP 21R38 MA - Poulan Pro Lawn Tractor BRAKE / REAR MOWER LIFT ASSEMBLY Parts Diagram

Lawn Tractor

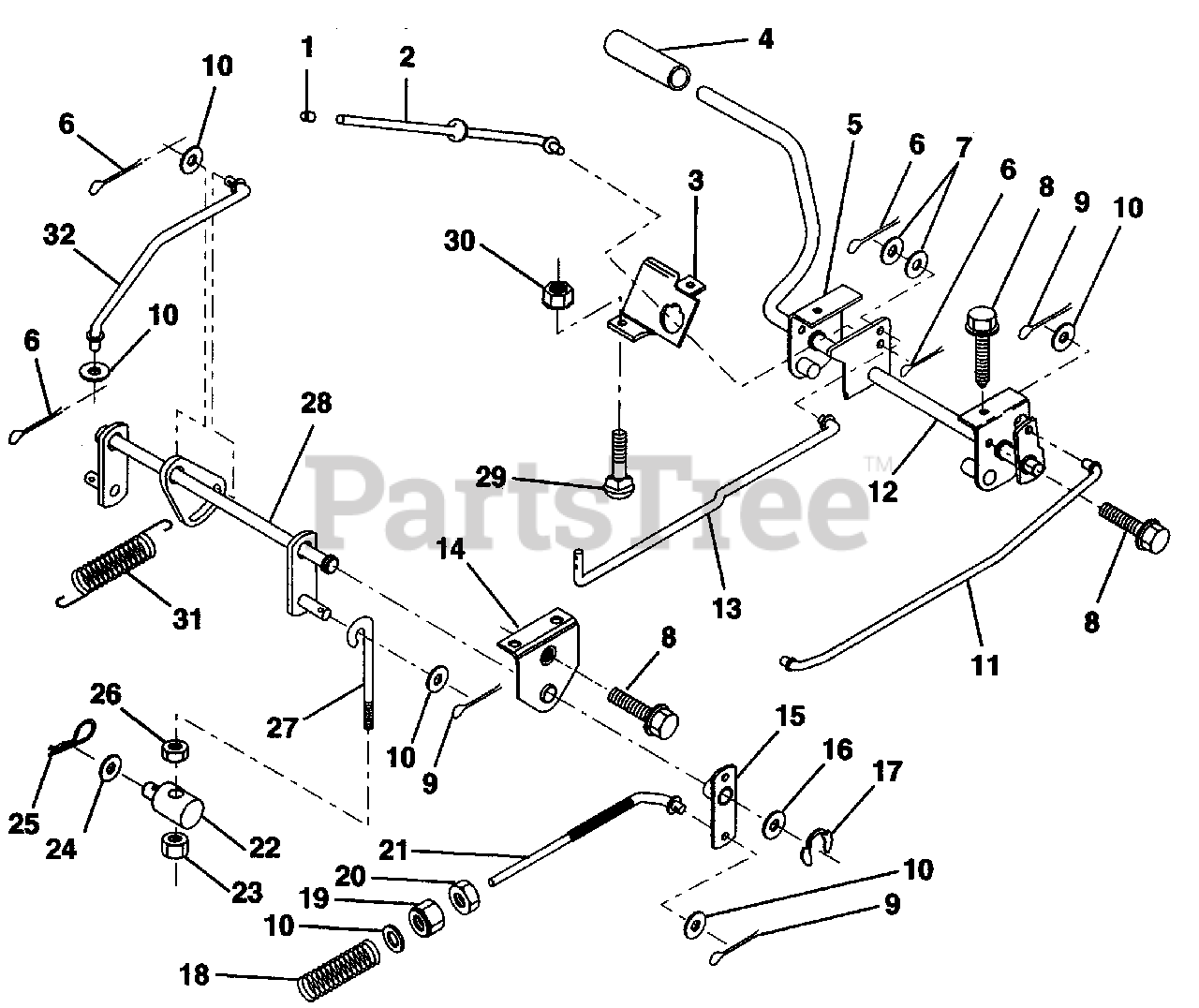

BRAKE / REAR MOWER LIFT ASSEMBLY Parts Diagram

  • Title

1

Poulan 532071673

Cap, Plunger (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

2

Poulan 532123436

Rod, Parking Brake (AYP part number)

$

$

Not available

3

Poulan 532123437

Bracket, Parking Brake (AYP part number)

$

$

Not available

4

Poulan 532124872

Cover, Pedal (AYP part number)
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

5

Poulan 532132205

Bracket Assy., Clutch Pedal, LH (AYP part number)

$

$

Not available

6

Poulan 876020312

Pin, Cotter 3/32 x 3/4 (AYP part number)
(Superseded to 876020308)

$

$

Not available

7

Poulan 819131016

Washer 13/32 x 5/8 x 16 Gauge (AYP part number)

$6.49

$

In Stock, Qty 5

0

8

Poulan 817490508

Screw, Hex, Thd. Roll. 5/16-18 x 1/2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

9

Poulan 876020412

Pin, Cotter 1/8 x 3/4 (AYP part number)
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

10

Poulan 819131316

Washer 13/32 x 13/16 x 16 Gauge (AYP part number)

$4.99

$

In Stock, Qty 5

0

11

Poulan 532123543

Rod, Front Brake (AYP part number)
(Superseded to 123543X)

$

$

Not available

12

Poulan 532136263

Assembly, Clutch/Brake Pedal (AYP part number)

$

$

Not available

13

Poulan 532123394

Rod, Clutch (AYP part number)
(Superseded to 123394X)

$

$

Not available

14

Poulan 532121978

Bracket, Lift, Shaft (AYP part number)

$

$

Not available

15

Poulan 532123641

Assembly, Brake, Pivot, Arm (AYP part number)

$

$

Not available

16

Poulan 819251816

Washer 25/32 x 1-1/8 x 16 Gauge (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

17

Poulan 812000034

Ring, Klip (AYP part number)

$

$

Not available

18

Poulan 532106888

Spring, Brake Rod (AYP part number)
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

19

Poulan 873350600

Nut, Hex, Jam 3/8-16 UNC (AYP part number)
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

20

Poulan 873680600

Nut, Crownlock 3/8-16 UNC
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

21

Poulan 532131460

Rod, Rear Brake
(Superseded to 532131461)

$13.99

$

Usually ships in 3-10 days

0

22

Poulan 532127378

Trunnion, Lift (AYP part number)
(Superseded to 532144585)

$

$

Not available

23

Poulan 873680600

Nut, Crownlock 3/8-16 UNC
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

24

Poulan 819132012

Washer 13/32 x 1-1/4 x 12 Gauge (AYP part number)

$1.99

$

Usually ships in 3-10 days

0

25

Poulan 532124961

Spring, Retainer (AYP part number)
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

26

Poulan 873930600

Nut, Centerlock 3/8-16 UNC (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 532132218

Link, Threaded (AYP part number)

$

$

Not available

28

Poulan 532132221

Assembly, Rear Mower Lift (AYP part number)

$

$

Not available

29

Poulan 872110506

Bolt, Carriage 5/16-18 UNC x 3/4 (AYP part number)

$7.49

$

In Stock, Qty 20+

0

30

Poulan 873510500

Nut, Keps 5/16-18 UNC (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

31

Poulan 532133095

Spring, Counterbalance (AYP part number)

$

$

Not available

32

Poulan 532133721

Link, Lift Lever (AYP part number)

$

$

Not available
