PP 20VA46 (960480092-02) - Poulan Pro Lawn Tractor (2017-10) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

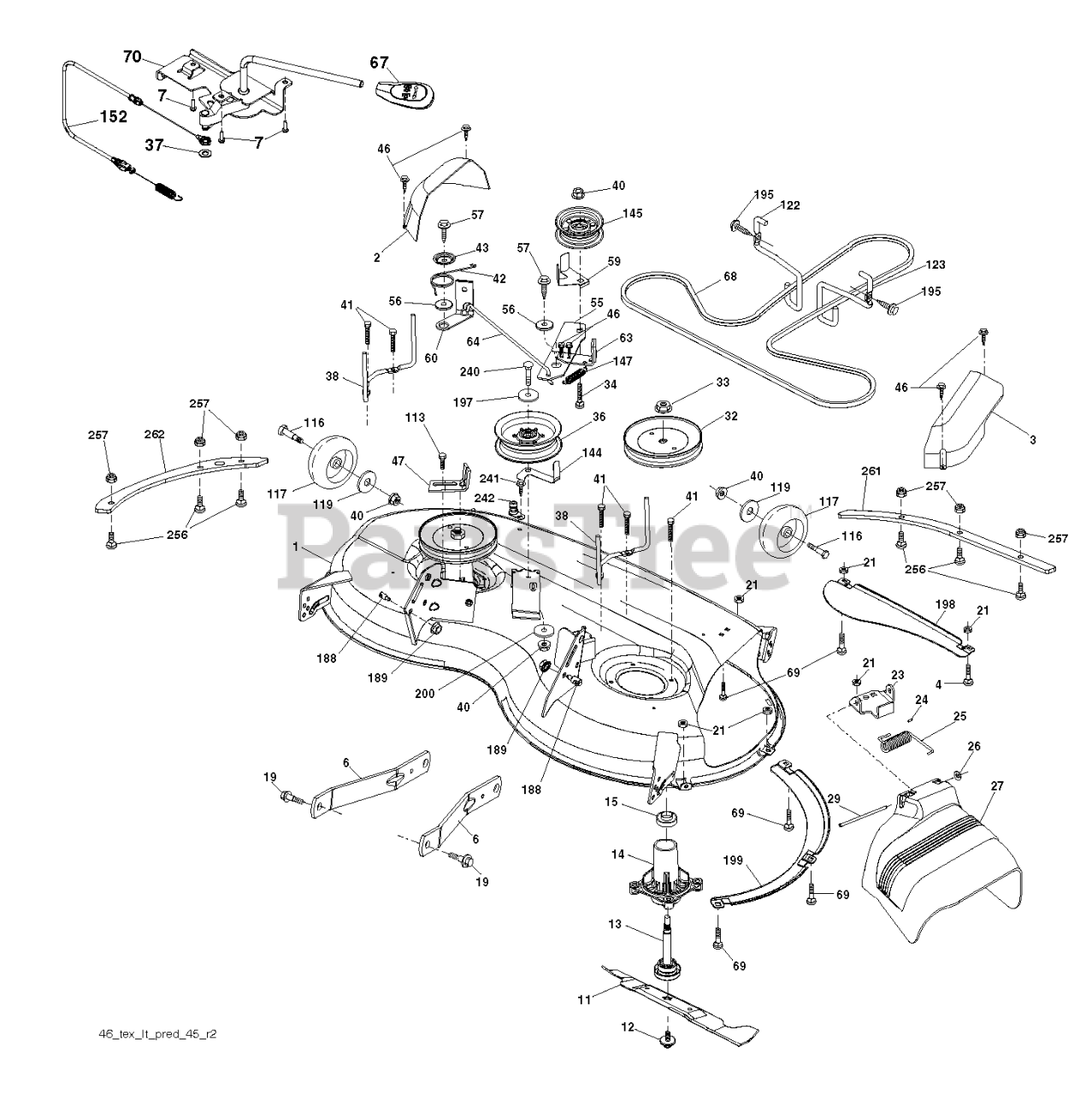

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

--

Poulan 587719401

DECK ASM SVC.46B.HP.

$909.99

$

Usually ships in 3-10 days

0

1

Poulan 589535310

KIT.SVC.WELDMNT.46"405050X421
(Superseded to 583332301)

$

$

Not available

2

Poulan 532405507

COVER.MANDREL.LH.46"

$47.99

$

In Stock, only 3 left!

0

3

Poulan 532405506

COVER.MANDREL.RH.46"

$47.99

$

In Stock, only 4 left!

0

4

Poulan 874760512

Bolt, Hex Head 5/16-18 UNC x 3/4 (AYP part number)
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

6

Poulan 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

7

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

11

Poulan 532405380

BLADE.MOWER.46".HI.LIFT

Note: FOR BAGGING OR DISCHARGE

$

$

Not available

12

Poulan 584309301

SCREW.SEMS.7/16-20X1.HEX.HEAD

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 587256501

SHAFT ASM.MNDRL.N/GREASEABLE
(Superseded to 587253301)

$56.99

$

In Stock, Qty 20+

0

14

Poulan 532187281

HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

15

Poulan 585323901

BEARING.MANDREL.TOP.EXTENDED

$14.99

$

In Stock, only 2 left!

0

19

Poulan 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

21

Poulan 873680500

Locknut, Hex w/Insert 5/16-18 Unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Poulan 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 5

0

24

Poulan 532105304

Cap Sleeve 80x 112 Blk Mower (AYP part number)

$4.99

$

In Stock, Qty 20+

0

25

Poulan 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 15

0

26

Poulan 532110452

Nut Push Phos & Oil (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 532405357

SHIELD.DEFLECTOR.MOWER.46"BLAC

$74.99

$

In Stock, Qty 7

0

29

Poulan 532131491

Rod Hinge 42" 6 75 Wlg (AYP part number)
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

32

Poulan 532197473

PULLEY.MANDREL.5.438.PD
(Superseded to 532195945)

$14.99

$

In Stock, Qty 20+

0

33

Poulan 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

34

Poulan 872110612

Bolt Carriage 3/8-16 x 1-1/2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

36

Poulan 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$39.99

$

In Stock, Qty 20+

0

37

Poulan 819131316

Washer 13/32 x 1-3/16 x 12 Gauge (AYP part number)

$4.99

$

In Stock, Qty 5

0

38

Poulan 532432520

KEEPER.BELT.MANDREL.PULLEY
(Superseded to 589676103)

$7.99

$

In Stock, Qty 14

0

40

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

41

Poulan 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

42

Poulan 532198410

SPRING.TORSION.BRAKE

$6.49

$

In Stock, Qty 8

0

43

Poulan 532197256

SRPING.TORSION.RETAINE

$6.49

$

In Stock, Qty 8

0

46

Poulan 532137729

Screw Hex Thd Cut 1/4-20x5/8 T (AYP part number)

$4.99

$

In Stock, Qty 19

0

47

Poulan 532197250

BRKT.CLUTCH.CABLE

$6.49

$

Usually ships in 3-10 days

0

55

Poulan 532197249

IDLER.ARM

$

$

Not available

56

Poulan 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

57

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

59

Poulan 532141043

Guard TUV Idler (AYP part number)

$

$

Not available

60

Poulan 532199471

ARM BRAKE MOWER RH 38"
(Superseded to 532199471)

$17.99

$

In Stock, only 3 left!

0

63

Poulan 532199477

ARM BRAKE MOWER
(Superseded to 532199478)

$17.99

$

In Stock, Qty 20+

0

64

Poulan 532405138

LINKAGE BRAKE
(Superseded to 532405139)

$37.99

$

In Stock, Qty 19

0

67

Poulan 532403012

HANDLE.CLUTCH.CABLE.LT

$12.99

$

In Stock, only 1 left!

0

68

Poulan 532405143

V-BELT
(Superseded to 584453101)

$56.99

$

In Stock, Qty 20+

0

69

Poulan 872140505

Bolt, Carriage 5/16-18 UNC x 5/8 (AYP part number)
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

70

Poulan 532199972

CLUTCH.ASM.MANUAL.YT.PREDATORQ

$87.99

$

In Stock, Qty 8

0

113

Poulan 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

116

Poulan 532124842

Bolt, Shoulder (AYP part number)
(Superseded to 596434402)

$4.99

$

In Stock, only 3 left!

0

117

Poulan 589527401

WHEEL.GAUGE.RALLY.NARROW

$11.99

$

In Stock, Qty 10

0

119

Poulan 819121414

Washer 3/8 x 7/8 x 14 Ga. (AYP part number)
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

122

Poulan 532197258

KEEPER BELT ENGINE LH
(Superseded to 531169501)

Note: LH

$7.49

$

In Stock, Qty 6

0

123

Poulan 532197259

KEEPER BELT RH

Note: RH

$

$

Not available

144

Poulan 532199204

KEEPER.BELT.MOWER

$6.49

$

Usually ships in 3-10 days

0

145

Poulan 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$

In Stock, Qty 5

0

147

Poulan 532401971

RETURN SPRING

$5.99

$

In Stock, Qty 6

0

152

Poulan 584243501

CABLE.MECHANICAL.CLUTCH

$34.99

$

In Stock, Qty 10

0

188

Poulan 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

189

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

195

Poulan 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

197

Poulan 819131312

Washer 13/32 x 13/16 x 12 Gauge (AYP part number)
(Superseded to 596133201)

$6.99

$

In Stock, only 1 left!

0

198

Poulan 532403149

BAFFLE CENTER FRONT

$

$

Not available

199

Poulan 532403150

BAFFLE FRONT RH

$

$

Not available

200

Poulan 532413524

WASHER.13/32 X 1 X 1/2.11GUARD
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

240

Poulan 874520636

BOLT-HEX EAK
(Superseded to 596564404)

$3.99

$

In Stock, only 2 left!

0

241

Poulan 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 2 left!

0

242

Poulan 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 12

0

256

Poulan 539109800

RHSNB, 1/4-20 X 1, GR5

$4.99

$

Usually ships in 3-10 days

0

257

Poulan 873900400

Nut, Hex Flange 1/4-20
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

261

Poulan 589481805

PLATE.REINF.DECK.46".FRONT.BLK

$20.99

$

In Stock, only 4 left!

0

262

Poulan 589482005

PLATE.REINF.DECK.46".SIDE.BLK

$20.99

$

Usually ships in 3-10 days

0

- -

Poulan 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 6

0

--

Poulan 587253301

MANDREL.NONGREASEABLE.TALL
(Superseded to 587819701)

Note: MANUAL ASSEMBLY (Includes housing (key# 14), shaft assembly (key# 14), bearing (key# 15) and nut (key# 33) only - pulley/washer and blade bolt/washers not included)

$56.99

$

In Stock, Qty 20+

0
