PP 20VA42 (223980) - Poulan Pro Lawn Tractor (2017-11) WHEELS & TIRES Parts Diagram

Lawn Tractor

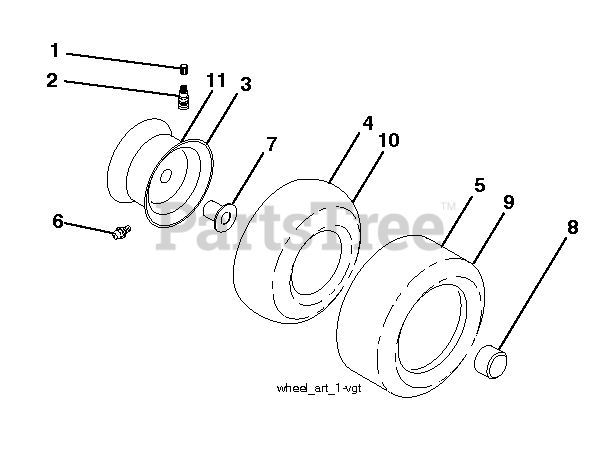

WHEELS & TIRES Parts Diagram

  • Title

1

Poulan 532059192

Cap, Valve, Tire (AYP part number)

$7.49

$

In Stock, Qty 9

0

2

Poulan 532065139

Stem, Valve (AYP part number)

$9.99

$

In Stock, only 3 left!

0

3

Poulan 532125121

Rim Assembly, Front, (Includes 2 each Key No. 9) (AYP part number)
(Superseded to 532106732)

Note: FRONT

$91.99

$

In Stock, Qty 5

0

4

Poulan 532059904

Tube, Tire, Front (Not Supplied, Service Item Only)

Note: (Service Item Only)

$37.99

$

In Stock, Qty 7

0

5

Poulan 532106222

Tire F Ts 15 X 6 0 - 6 Service (AYP part number)
(Superseded to 532122073)

Note: FRONT (15 X 6-6)

$74.99

$

Usually ships in 3-10 days

0

6

Poulan 532124957

Fitting, Grease (Front Wheels Only) (AYP part number)
(Superseded to 532000278)

Note: (Front Wheel Only)

$6.99

$

Usually ships in 3-10 days

0

7

Poulan 532124959

Bearing Flange (Service Item Only) (AYP part number)
(Superseded to 532009040)

Note: (Front Wheel Only)

$7.99

$

In Stock, Qty 20+

0

8

Poulan 532193268

CAP.AXLE.FRONT.YELLOW

$6.49

$

In Stock, only 4 left!

0

9

Poulan 532138468

TIRE 20X8-8 TURF SAVER

Note: REAR (20 X 8-8)

$121.99

$

Usually ships in 3-10 days

0

10

Poulan 532124926

Tube, Rear (Optional Service Item Only) (AYP part number)
(Superseded to 532007152)

Note: (Service Item Only)

$74.99

$

Usually ships in 3-10 days

0

11

Poulan 532125122

RIM.ASM.8"REAR.YELLOW.SERVICE

Note: REAR

$145.99

$

Usually ships in 3-10 days

0

Poulan 532144334

Sealant, Tire (10 oz. Tube) (AYP part number)
(Superseded to 576707201)

$

$

Not available
