PP 20H50J - Poulan Lawn Tractor (1994) MOWER DECK Parts Diagram

Lawn Tractor

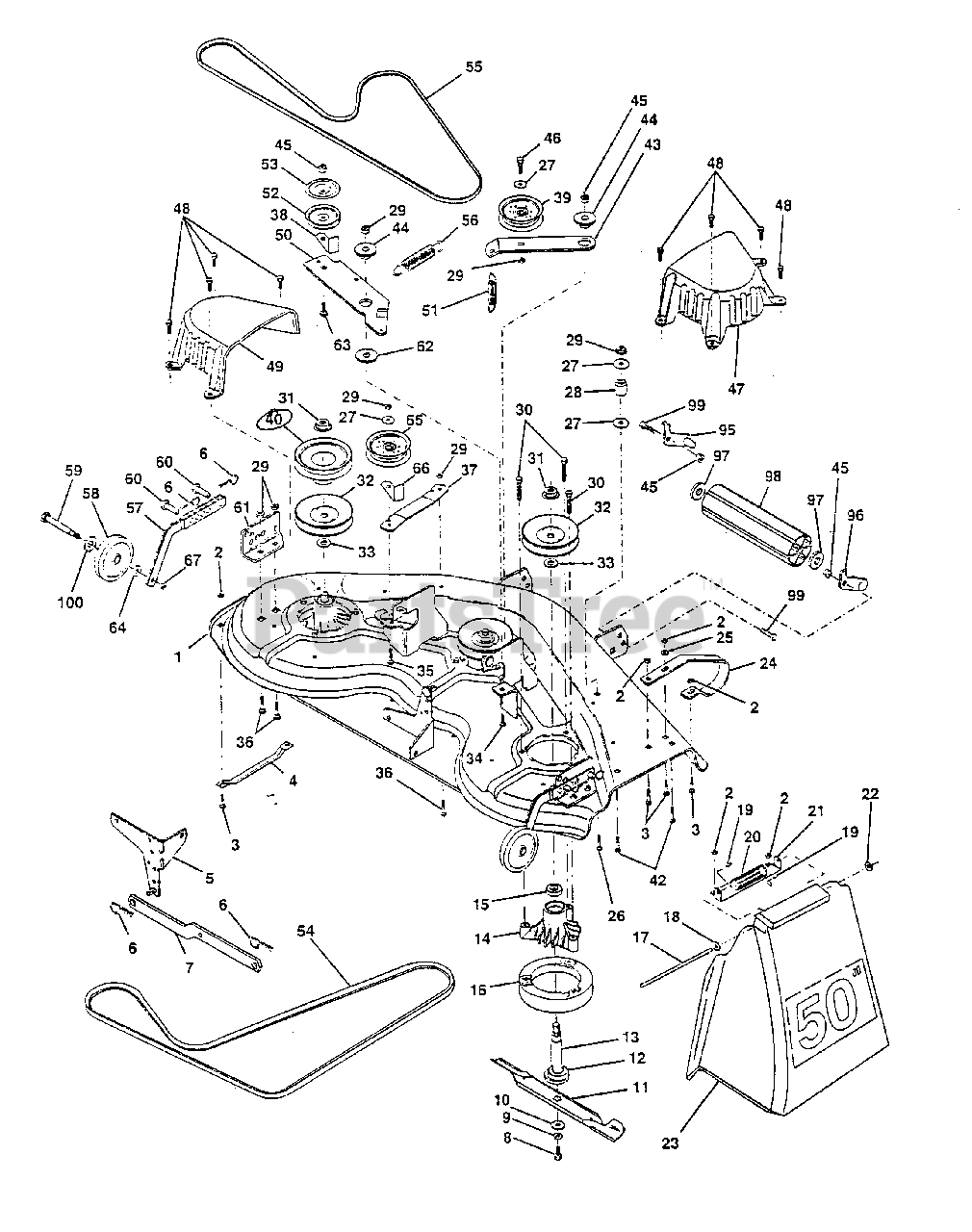

MOWER DECK Parts Diagram

  • Title

1

Electrolux/AYP 532136457

Deck Asm., Mower 50" Vented
(Superseded to 532156990)

$

$

Not available

2

Electrolux/AYP 873800500

Locknut, Hex W/Ins 5/16-18 Unc
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 872110506

Bolt, Carriage 5/16-18 x 3/4

$7.49

$

In Stock, Qty 20+

0

4

Electrolux/AYP 532125074

Runner, Mower LH
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 532138457

Bracket Asm., Sway Bar
(Superseded to 138457)

$11.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 532124670

Retainer, Spring
(Superseded to 532085902)

$

$

Not available

7

Electrolux/AYP 532130832

Arm Suspension, Rear
(Superseded to 532130833)

$8.99

$

In Stock, only 4 left!

0

8

Electrolux/AYP 532850857

Bolt 3/8-24 x 1.25 Gr. 8 Patched

$4.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 810030600

Washer, Lock Hvy 3/8 Unplated
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532140296

Washer, Hard Blade Mower Vented

$6.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 532137380

Blade (3 Required)

$22.99

$

In Stock, only 3 left!

0

12

Electrolux/AYP 532129895

Bearing, Ball #6204 (Mandrel)
(Superseded to 738220419)

$17.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 532137553

Shaft Asm., W/Lower Brg (Includes Key No. 12)

$37.99

$

In Stock, only 1 left!

0

14

Electrolux/AYP 532137152

Housing, Mandrel 50" Vent

$40.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 532110485

Bearing, Ball Mandrel

$13.99

$

In Stock, Qty 11

0

16

Electrolux/AYP 532140329

Stripper, Mower Vented
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532106735

Rod, Hinge

$10.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 819111016

Washer 11/32 x 5/8 x 16 Ga.
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 532105304

Cap, Sleeve

$4.99

$

In Stock, Qty 20+

0

20

Electrolux/AYP 532123713

Spring, Torsion Deflector

$7.99

$

In Stock, only 1 left!

0

21

Electrolux/AYP 532137607

Bracket, Deflector

$6.49

$

In Stock, only 2 left!

0

22

Electrolux/AYP 532110452

Nut, Push

$3.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532110509

Shield, Deflector Mower

$

$

Not available

24

Electrolux/AYP 532136320

Runner, RH

$

$

Not available

25

Electrolux/AYP 819111216

Washer 11/32 x 3/4 x 16 Ga.
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 872110614

Bolt, Carriage 3/8-16 x 1-3/4 Gr. 5
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0

27

Electrolux/AYP 819131316

Washer 13/32 x 13/16 x 16 Ga.

$4.99

$

In Stock, Qty 5

0

28

Electrolux/AYP 532132823

Spacer, Spring Stop Idler

$7.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 873800600

Nut, Lock Hex W/Wsh 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 532138776

Screw Thdrol Hex Head
(Superseded to 532157722)

$4.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 532137266

Nut, Flg Top Lock Cntr 9/16
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

32

Electrolux/AYP 532129861

Pulley, Mandrel
(Superseded to 532153535)

$17.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 532129963

Washer, Spacer Mower Vented
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

34

Electrolux/AYP 872140610

Bolt, Carriage 3/8-16 x 1-1/4
(Superseded to 583611601)

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 872110616

Bolt, Carriage 3/8-16 x 2
(Superseded to 596136301)

$3.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 872110608

Bolt, Carriage 3/8-16 x 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 532137166

Stiffener, Arm Idler

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 532137554

Keeper, Belt Idler
(Superseded to 532156085)

$

$

Not available

39

Electrolux/AYP 532131494

Pulley, Idler Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

40

Electrolux/AYP 532136572

Pulley, Driven

$

$

Not available

42

Electrolux/AYP 872140506

Bolt, Carriage 5/16-18 Unc x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

43

Electrolux/AYP 532136460

Arm, Idler Secondary

$

$

Not available

44

Electrolux/AYP 532122052

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

45

Electrolux/AYP 873680600

Nut, Crownlock 3/8-16 Unc
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

46

Electrolux/AYP 874760628

Bolt, Fin Hex 3/8-16 Unc x 1-3/4
(Superseded to 874780628)

$6.49

$

In Stock, only 2 left!

0

47

Electrolux/AYP 532137200

Cover, Mandrel RH

$

$

Not available

48

Electrolux/AYP 532137729

Screw, Thd Roll 1/4-20 x 5/8

$4.99

$

In Stock, Qty 19

0

49

Electrolux/AYP 532136574

Cover, Mandrel LH

$

$

Not available

50

Electrolux/AYP 532137272

Arm, Idler Primary

$6.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 532137273

Spring, Secondary

$7.99

$

In Stock, Qty 5

0

52

Electrolux/AYP 532139245

Pulley, Idler V Groove

$37.99

$

In Stock, only 1 left!

0

53

Electrolux/AYP 532137789

Shield, Idler

$

$

Not available

54

Electrolux/AYP 532139573

V-Belt, Mower Primary

$51.99

$

In Stock, only 1 left!

0

55

Electrolux/AYP 532138255

V-Belt, Mower Secondary

$39.99

$

In Stock, Qty 7

0

56

Electrolux/AYP 532138687

Spring, Primary

$

$

Not available

57

Electrolux/AYP 532136577

Bar Asm., Wheel Gauge

$

$

Not available

58

Electrolux/AYP 532105455

Wheel, Gauge

$18.99

$

In Stock, only 2 left!

0

59

Electrolux/AYP 532124842

Bolt, Shoulder
(Superseded to 596434402)

$4.99

$

In Stock, only 3 left!

0

60

Electrolux/AYP 532139031

Pin, Clevis

$6.49

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 532136573

Bracket, Wheel Gauge

$6.49

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 532133943

Washer Hardened
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 872110612

Bolt Carriage 3/8-16 x 1-1/2

$6.49

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 819121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 532102403

Pulley Idler Flat Mower

$39.99

$

In Stock, only 1 left!

0

66

Electrolux/AYP 532139622

Keeper, Belt Idler 50" Vent
(Superseded to 532156009)

$7.49

$

In Stock, only 1 left!

0

67

Electrolux/AYP 873930600

Nut, Center Lock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

96

Electrolux/AYP 532132273

Bracket, Asm. Noseroller RH
(Superseded to 532175747)

$10.99

$

Usually ships in 3-10 days

0

95

Electrolux/AYP 532132274

Bracket, Asm. Noseroller LH
(Superseded to 532175746)

$9.49

$

In Stock, Qty 6

0

97

Electrolux/AYP 819171416

Washer 17/32 x 7/8 x 16 Ga.

$4.99

$

In Stock, Qty 8

0

98

Electrolux/AYP 532132264

Roller, Nose

$44.99

$

In Stock, Qty 20+

0

99

Electrolux/AYP 874760616

Bolt, Fin Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

100

Electrolux/AYP 819171512

Washer 17/32 x 15/16 x 12 Ga.

$3.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 532143651

Mandrel Asm

Note: (Includes Key Nos. 8-10, 12-15, 31 and 33); Not Shown.

$102.99

$

In Stock, only 4 left!

0

Electrolux/AYP 532141051

Mower Asm Service,Std.Deck
(Superseded to 532158330)

Note: Order separately all Nose Roller & Gauge Wheel components; Not Shown.

$1092.99

$

Usually ships in 3-10 days

0
