PP 20H50J A - Poulan Lawn Tractor (1994) STEERING ASSEMBLY Parts Diagram

Lawn Tractor

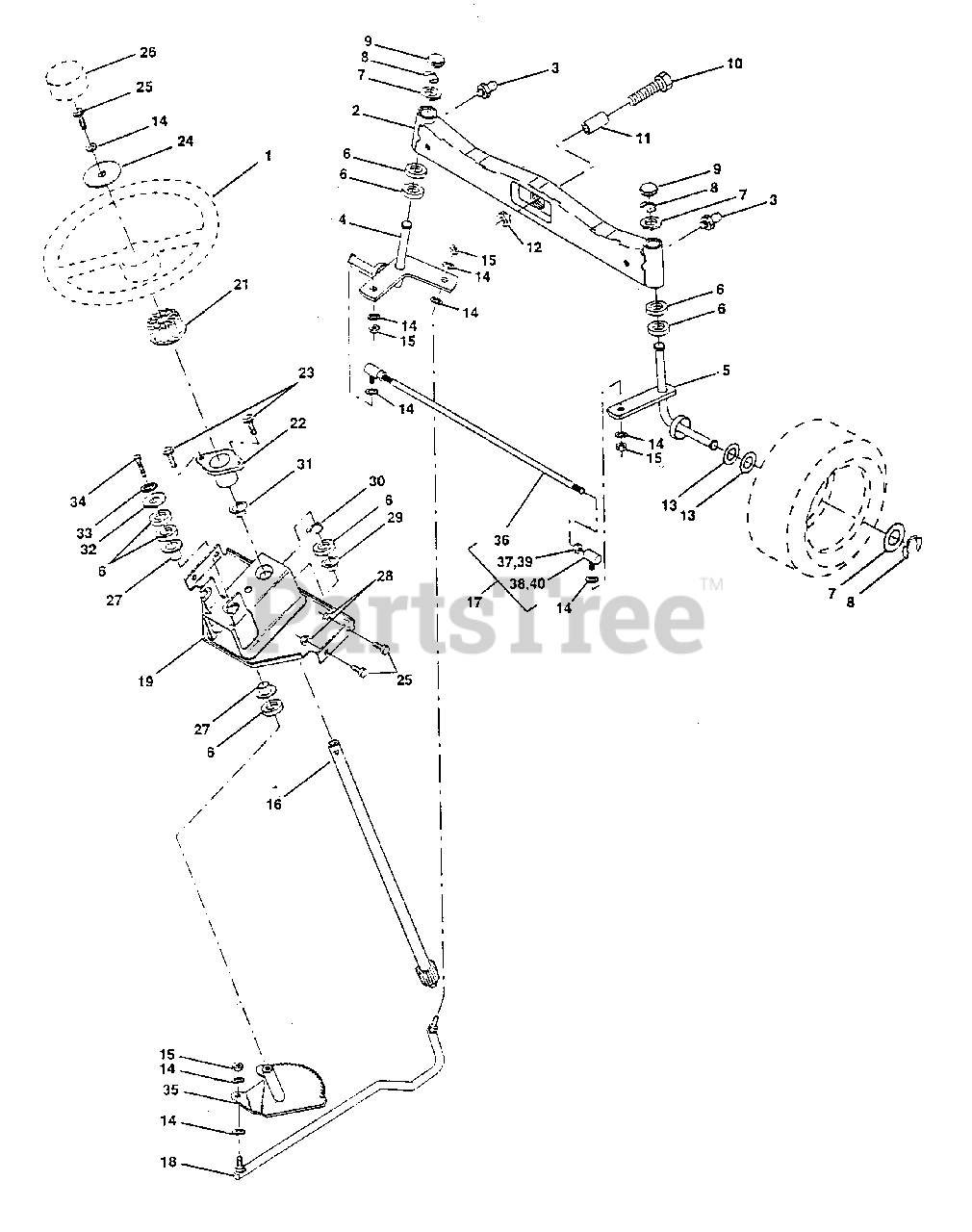

STEERING ASSEMBLY Parts Diagram

  • Title

1

Electrolux/AYP 532121472

Wheel, Steering
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532137094

Axle Asm., Front
(Superseded to 532178557)

$

$

Not available

3

Electrolux/AYP 532124836

Fitting, Grease
(Superseded to 532006855)

$7.49

$

In Stock, only 2 left!

0

4

Electrolux/AYP 532136960

Spindle Asm, LH
(Superseded to 532161849)

$

$

Not available

5

Electrolux/AYP 532136959

Spindle Asm., RH
(Superseded to 532161848)

$

$

Not available

6

Electrolux/AYP 532124956

Bearing, Race Thrust Harden
(Superseded to 532006266)

$7.49

$

In Stock, Qty 14

0

7

Electrolux/AYP 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$4.99

$

In Stock, Qty 10

0

8

Electrolux/AYP 812000029

Ring, Klip #T5304-75

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532121232

Cap, Spindle

$4.99

$

In Stock, Qty 8

0

10

Electrolux/AYP 874781044

Bolt, Fin Hex 5/8-11 x 2-3/4

$

$

Not available

11

Electrolux/AYP 532136518

Spacer, Brg. Axle Front

$9.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 873901000

Nut, Lock Flange 5/8-11 Unc
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 810040600

Washer, Lock Hvy Hlcl Spr 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 873610600

Nut, Fin Hex 3/8-24 Unf
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 532104591

Shaft Asm., Steering

$

$

Not available

17

Electrolux/AYP 532137347

Rod Asm., Tie Ball J Ball Vgt (Inc. Key No. 36-40)
(Superseded to 532186799)

$87.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532137155

Draglink, Ball Joint Solid Vgt
(Superseded to 532175572)

$74.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 532138053

Support Asm., Steering Vgt
(Superseded to 532144673)

$

$

Not available

21

Electrolux/AYP 532100711

Adapter, Wheel Steering
(Superseded to 532186737)

$9.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 532124720

Bushing, Strg. Blk
(Superseded to 532001554)

$7.99

$

In Stock, only 2 left!

0

23

Electrolux/AYP 817431008

Screw, Slftp #10-16 x 1/2 Ty-b
(Superseded to 98000165)

$2.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 819133808

Washer 13/32 x 2-3/8 x 8 Ga.
(Superseded to 583789501)

$

$

Not available

25

Electrolux/AYP 874780616

Bolt, Fin Hex 3/8-16 x 1 Gr.5

$6.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 532126805

Cap, Wheel Steering
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 532124937

Bearing, Col. Strg.
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

28

Electrolux/AYP 873800600

Nut, Lock Hex W/Wsh 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532104239

Bearing, Flange

$12.99

$

In Stock, only 2 left!

0

30

Electrolux/AYP 812000034

Ring, Klip Truarc #5304-75

$

$

Not available

31

Electrolux/AYP 532138136

Bushing, Nyliner Snap

$10.99

$

In Stock, only 1 left!

0

32

Electrolux/AYP 819111610

Washer 11/32 x 1 x 10 Ga.

$6.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 810040500

Washer, Lock Hvy Hlcl Spr 5/16

$4.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 874760512

Bolt, Hex Hd 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

35

Electrolux/AYP 532138059

Gear, Sector Steering

$

$

Not available

36

Electrolux/AYP 532137156

Tie Rod
(Superseded to 532137347)

$87.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 873360600

Jam Nut RH Thread

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 532109850

Joint Asm. Ball RH Thread
(Superseded to 532121160)

$24.99

$

In Stock, only 1 left!

0

39

Electrolux/AYP 873700600

Jam Nut LH Thread

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 532109851

Joint Asm. Ball LH Thread

$31.99

$

Usually ships in 3-10 days

0
