PP 20H50J A - Poulan Lawn Tractor (1994) LIFT ASSEMBLY Parts Diagram

Lawn Tractor

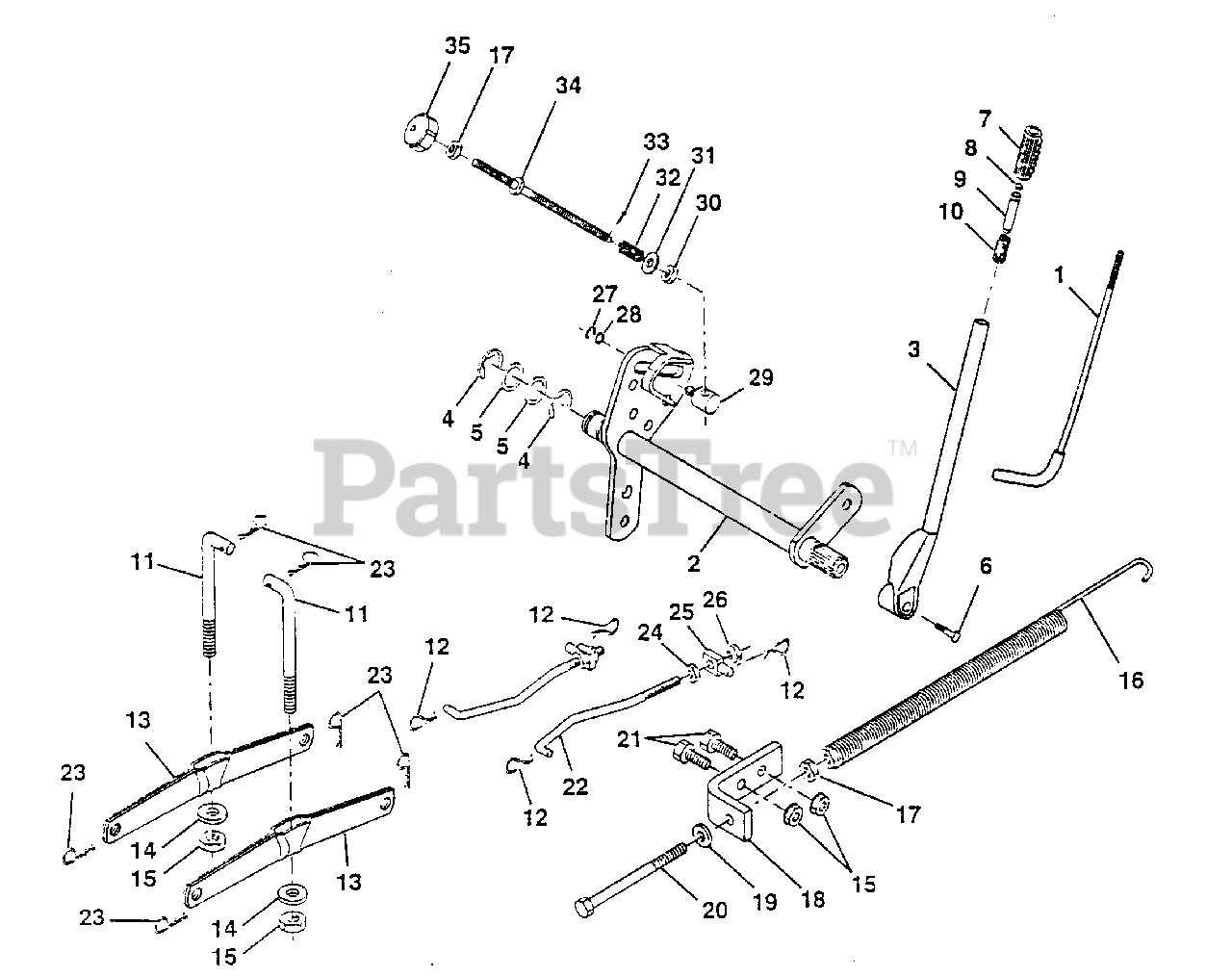

LIFT ASSEMBLY Parts Diagram

  • Title
1

Electrolux/AYP 532121006

Rod Asm., Lever

$34.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532137295

Shaft Asm., Lift Vgt

$

$

Not available

3

Electrolux/AYP 532121002

Lever Asm., Lift Rh
(Superseded to 532123096)

$

$

Not available

4

Electrolux/AYP 812000022

E-Ring Truarc #5133-87

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 819292016

Washer 29/32 x 1-1/4 x 16 Ga.

$7.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 874780624

Bolt, Fin Hex 3/8-16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532109413

Grip, Handle Bicycle
(Superseded to 532125631)

$7.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 532124526

Button, Plunger
(Superseded to 532125925)

$

$

Not available

9

Electrolux/AYP 532122364

Plunger, Lever Lift
(Superseded to 532125925)

$

$

Not available

10

Electrolux/AYP 532124874

Spring 2-1/8"
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532142369

Link Lift
(Superseded to 532146704)

$

$

Not available

12

Electrolux/AYP 532124660

Retainer, Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

13

Electrolux/AYP 532139867

Arm, Suspension Vgt
(Superseded to 532139868)

$15.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 532140302

Bearing
(Superseded to 532169865)

$

$

Not available

15

Electrolux/AYP 873800600

Nut, Lock Hex W/Wsh 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 532124687

Spring Asm., Assist Lift
(Superseded to 532674247)

$

$

Not available

17

Electrolux/AYP 873350600

Nut, Hex Jam 3/8-16 Unc
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

18

Electrolux/AYP 532143363

Bracket, Spring Assist

$3.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 819131316

Washer 13/32 x 13/16 x 16 Ga.

$4.99

$

In Stock, Qty 5

0

20

Electrolux/AYP 532005328

Bolt, Adjust Spring Assist

$2.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 874760616

Bolt, Fin Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

22

$17.99

$

In Stock, only 4 left!

0

23

Electrolux/AYP 532124670

Retainer, Spring
(Superseded to 532085902)

$

$

Not available

24

Electrolux/AYP 873350800

Nut, Jam Hex 1/2-13 Unc
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

25

Electrolux/AYP 532130171

Trunnion
(Superseded to 532175689)

$

$

Not available

26

Electrolux/AYP 873800800

Nut, Lock W/Wsh 1/2-13 Unc
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 812000037

Ring, Klip #T5304-37

$6.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 819151216

Washer 15/32 x 3/4 x 16 Ga.
(Superseded to 19151216)

$

$

Not available

29

Electrolux/AYP 532110810

Trunnion, Dp Stop Dbl Thds Plt

$

$

Not available

30

$

$

Not available

31

Electrolux/AYP 819131016

Washer 13/32 x 5/8 x 16 Ga.

$6.49

$

In Stock, Qty 5

0

32

Electrolux/AYP 532137150

Spring, Compression Inf Hgt

$6.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 876020308

Pin, Cotter 3/32 x 1/2
(Superseded to 532003145)

$

$

Not available

34

Electrolux/AYP 532137167

Rod, Adj Lift

$7.49

$

In Stock, only 2 left!

0

35

Electrolux/AYP 532138057

Knob, Inf 3/8-16 Unc

$8.99

$

Usually ships in 3-10 days

0
