PP 20H50 JA - Poulan Pro Lawn Tractor ENGINE Parts Diagram

Lawn Tractor

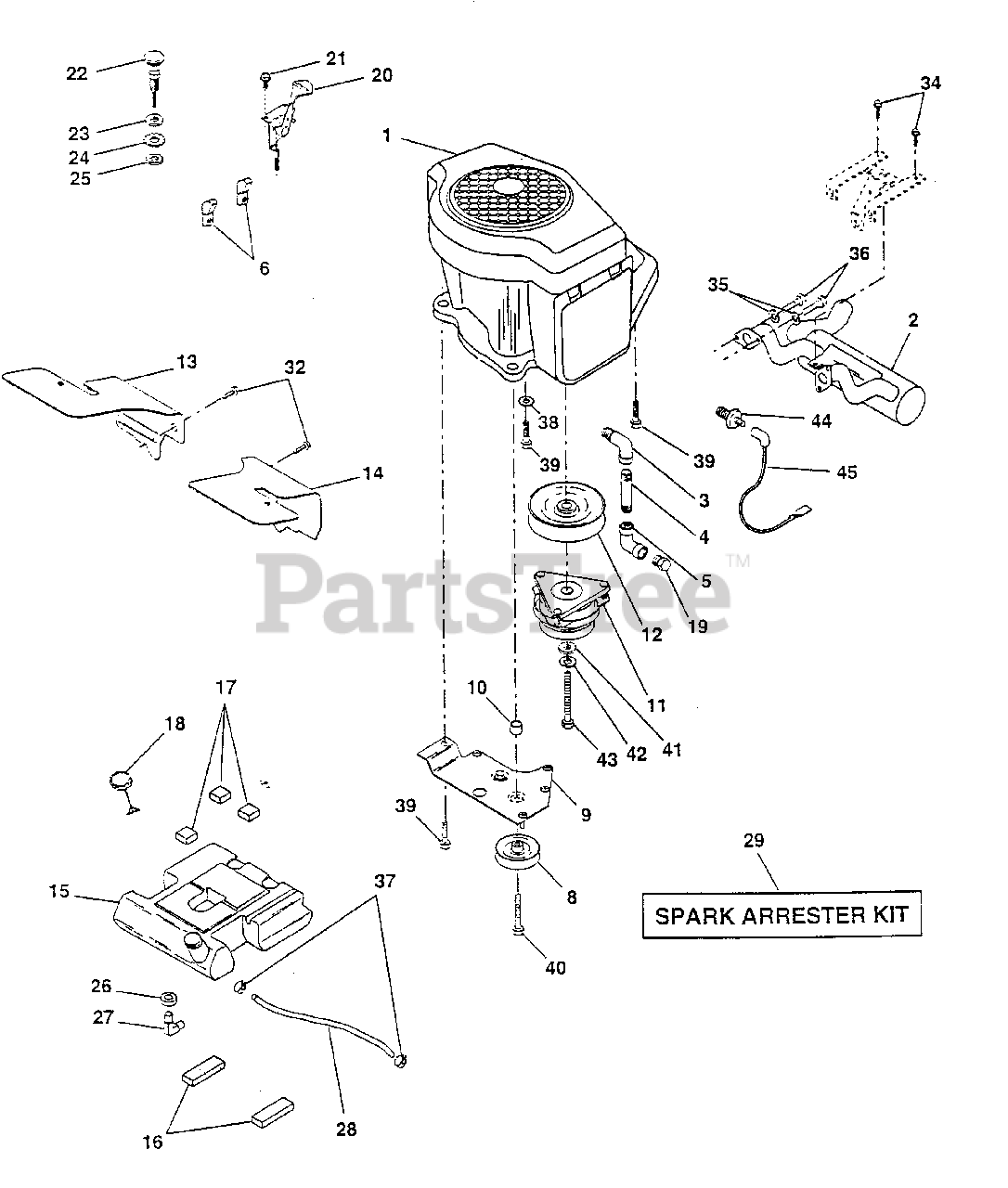

ENGINE Parts Diagram

  • Title

2

Poulan 532144110

Muffler Asm Kohler VGT (Inc. Key No. 34) (AYP part number)

$

$

Not available

3

Poulan 813240300

Elbow Street 3/8 NPT (AYP part number)

$7.99

$

Usually ships in 3-10 days

0

4

Poulan 813280328

Nipple Pipe 3/8NPT X 3 - 1/2 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

5

Poulan 813200300

Elbow STD 90 Degree 3/8 - 18 NPT (AYP part number)
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

6

Poulan 532138129

Clamp Tube Double Engine (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

8

Poulan 532121361

Pulley V-Idler (AYP part number)
(Superseded to 532139123)

$37.99

$

In Stock, only 1 left!

0

9

Poulan 532138559

Stop Keeper Asm VGT (AYP part number)
(Superseded to 532145109)

$

$

Not available

10

Poulan 532105432

Bushing (AYP part number)
(Superseded to 105432X)

$

$

Not available

11

Poulan 532137140

Clutch Electric (AYP part number)
(Superseded to 532142600)

$

$

Not available

12

Poulan 532136907

Pulley Engine VGT Elect Clutch (AYP part number)

$

$

Not available

13

Poulan 532138486

Baffle Air LH Koh VGT (AYP part number)
(Superseded to 532154575)

$

$

Not available

14

Poulan 532138487

Baffle Air RH Koh VGT (AYP part number)

$

$

Not available

15

Poulan 532141069

Tank Fuel W/Sym Vented (AYP part number)
(Superseded to 532151346)

$96.99

$

Usually ships in 3-10 days

0

16

Poulan 532109227

Pad Spacer (AYP part number)

$4.99

$

In Stock, Qty 20+

0

17

Poulan 532106082

Pad Spacer (AYP part number)

$

$

Not available

18

Poulan 532140527

Cap Asm Fuel W/Sym Vented (AYP part number)
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

19

Poulan 813290300

Plug Oil Drain (Order From Engine Manufacturer) (AYP part number)

$

$

Not available

20

Poulan 532142168

Control Throttle (AYP part number)
(Superseded to 532162150)

$

$

Not available

21

Poulan 817720410

Screw Hex Thd Cut 1/4 - 20 X 5/8 (AYP part number)
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

22

Poulan 532138672

Control Choke (AYP part number)

$

$

Not available

23

Poulan 819131316

Washer 13/32 X 13/16 x 16 Ga (AYP part number)

$4.99

$

In Stock, Qty 5

0

24

Poulan 811050600

Washer Ext Tooth 3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

25

Poulan 873610600

Nut Fin Hex 3/8 - 24 UNF (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

26

Poulan 532124952

Bushing (AYP part number)
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

27

Poulan 532139277

Stem Tank Fuel (AYP part number)

$8.99

$

In Stock, Qty 7

0

28

Poulan 532124703

Fuel Line (AYP part number)
(Superseded to 532008542)

$

$

Not available

29

Poulan 532132920

Spark Arrester Kit (AYP part number)

$

$

Not available

32

Poulan 817490508

Screw Thdrol 5/16 - 18 X 1/2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

34

Poulan 817720408

Screw Thd Cut 1.4 - 20 x 1/2 (AYP part number)
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

35

Poulan 810040500

Washer Lock 5/16 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

36

Poulan 874570512

Screw Hex 5/16 - 16 UNC X 3/4 (AYP part number)

$3.99

$

In Stock, only 4 left!

0

37

Poulan 532123487

Clamp Hose (AYP part number)

$7.49

$

In Stock, only 4 left!

0

38

Poulan 811050600

Lockwasher Ext Tooth 3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

39

Poulan 817490624

Screw Thdrol 3/8 - 16 X 1 - 1/2 TT (AYP part number)
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

40

Poulan 817490652

Screw Thdrol 3/8 - 16 X 3 - 1/4 (AYP part number)

$

$

Not available

41

Poulan 532126197

Washer 1-1/2 OD X 15/32 ID X .250 (AYP part number)

$8.99

$

In Stock, only 3 left!

0

42

Poulan 810040700

Washer Lock 7/16 (AYP part number)
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

43

Poulan 871170768

Bolt Hex 7/16-20 X 4-1/4 Ga 5 (AYP part number)
(Superseded to 532173937)

$4.99

$

In Stock, only 1 left!

0

44

Poulan 532142320

Switch Oil Sentry Kohler (AYP part number)

$

$

Not available

45

Poulan 532142321

Wire Lead Sentry Kohler (AYP part number)

$

$

Not available
