PP 20H46 A - Poulan Pro Lawn Tractor Seat Assembly Parts Diagram

Lawn Tractor

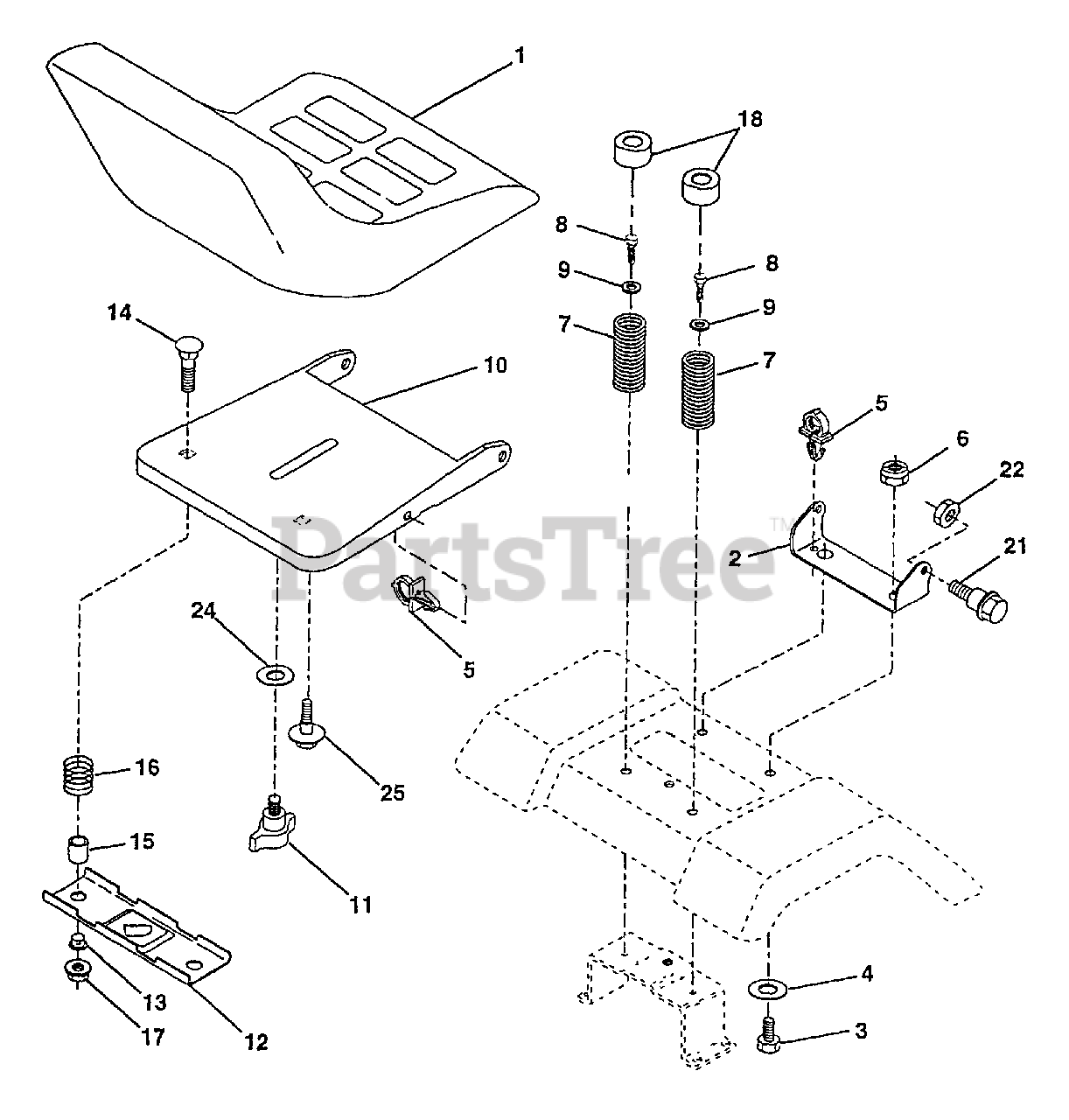

Seat Assembly Parts Diagram

  • Title
1

$132.99

$

Usually ships in 3-10 days

0

2

Poulan 140551

Bracket Pivot Seat 8 720
(Superseded to 532140551)

$6.49

$

Usually ships in 3-10 days

0

3

Poulan 74760616

Bolt Fin Hex 3/8-16unc X 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

4

Poulan 19131610

Washer 13/32 X 1 X 10 Ga
(Superseded to 819131610)

$6.49

$

In Stock, Qty 7

0

5

Poulan 145006

Clip Push-In
(Superseded to 532145006)

$6.49

$

Usually ships in 3-10 days

0

6

Poulan 73800600

Nut Hex w/Ins. 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 124181X

Spring Seat Cprsn 2 250 Blk Zi
(Superseded to 587613301)

$6.99

$

In Stock, only 3 left!

0

8

Poulan 17490616

Screw Thdrol 3/8-16 X 1 Ty-tt
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0

9

Poulan 19131614

Washer 13/32 X 1 X 14 Ga. (AYP part number)
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

10

Poulan 155925

Pan Seat (AYP part number)
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

11

Poulan 166369

Knob Seat Adj. Wingnut
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

12

Poulan 121246X

Bracket Mounting Switch
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

13

Poulan 121248X

Bushing Snap Blk Nyl 50 Id
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

14

Poulan 72050412

Bolt Rdhd Sqnk 1/4-20x1-1/2
(Superseded to 872050412)

$6.49

$

Usually ships in 3-10 days

0

15

Poulan 121249X

Spacer Split 28x 88
(Superseded to 532121249)

$6.49

$

In Stock, only 2 left!

0

16

Poulan 123740X

Spring Cprsn
(Superseded to 532123740)

$6.49

$

Usually ships in 3-10 days

0

17

Poulan 123976X

Nut Lock 1/4 Lge Flg Gr 5 Zinc (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

18

Poulan 124238X

Cap Spring Seat Blk
(Superseded to 532124238)

$

$

Not available

21

Poulan 153236

Bolt Shoulder 5/16-18 Unc (AYP part number)
(Superseded to 532171852)

$4.99

$

In Stock, Qty 8

0

22

Poulan 73800500

Nut Hex Lock W/Ins 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

24

Poulan 19171912

Washer 17/32 X 1-3/16 X 12 Ga.
(Superseded to 819171912)

$7.49

$

In Stock, only 1 left!

0

25

Poulan 127018X

Bolt Shoulder 5/16-18 X 62
(Superseded to 532127018)

$7.49

$

In Stock, only 1 left!

0
