PP 20H46 A - Poulan Pro Lawn Tractor Engine Parts Diagram

Lawn Tractor

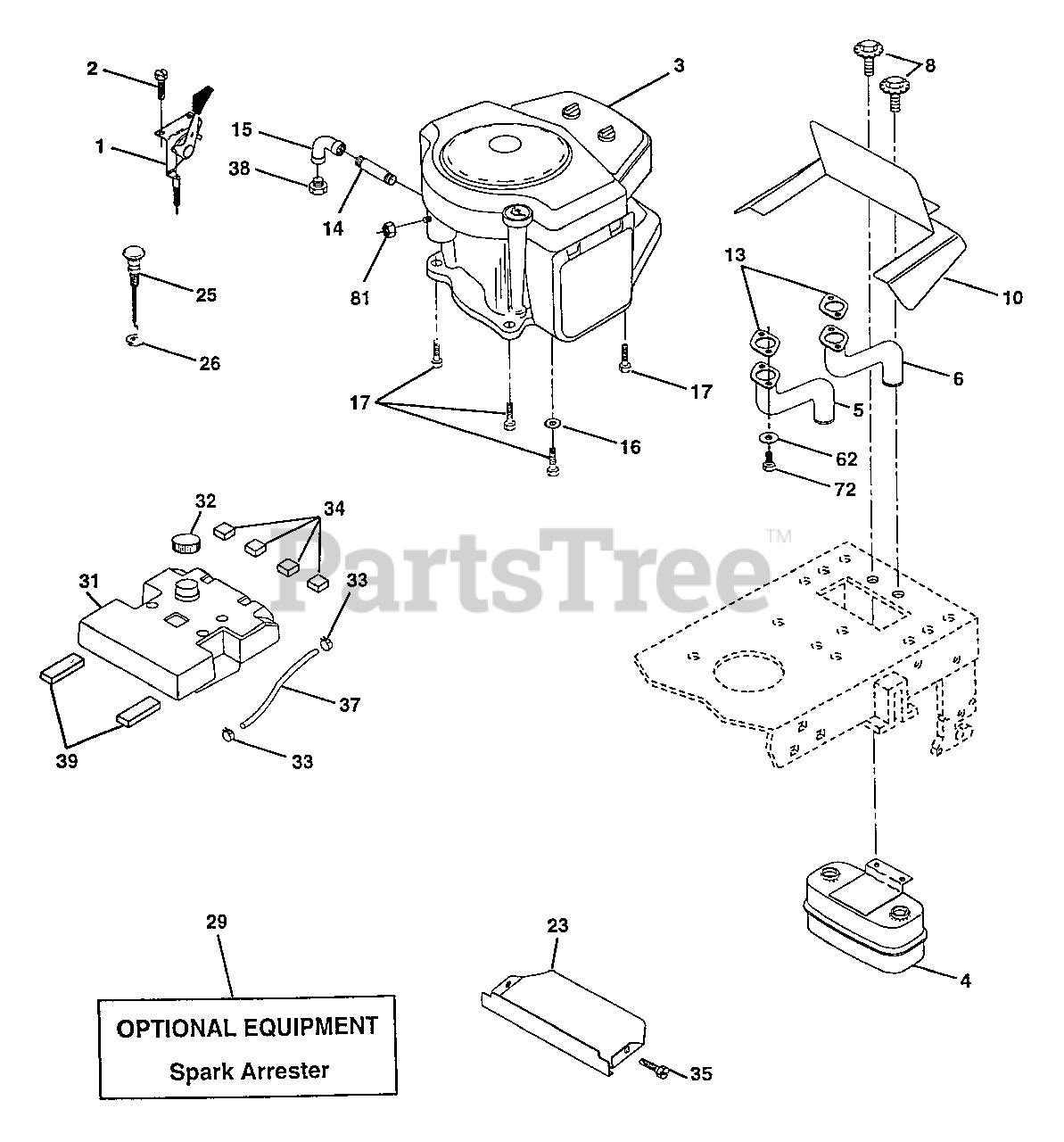

Engine Parts Diagram

  • Title

1

Poulan 148875

Control Th/Flag 180 LH 36" (AYP part number)
(Superseded to 532170771)

$

$

Not available

2

Poulan 17720410

Screw Hex Thd Cut 1/4-20x5/8 T

$2.99

$

Usually ships in 3-10 days

0

3

Engine, B&S Intek II

Note: Order parts from engine manufacturer

$

$

Not available

4

Poulan 149723

Muffler Asm Twin Lo-Tone
(Superseded to 532149723)

$74.99

$

Usually ships in 3-10 days

0

5

Poulan 159955

Pipe Exhaust LH Intek
(Superseded to 581881101)

$44.99

$

In Stock, only 1 left!

0

6

Poulan 160589

Pipe Exhaust RH Intek
(Superseded to 581881001)

$27.99

$

In Stock, only 1 left!

0

8

Poulan 150176

Bolt 5/16-18 UNC x 3/4 w/Sems
(Superseded to 532149741)

$7.49

$

In Stock, Qty 5

0

10

Poulan 162797

Shield Browning Intek II (AYP part number)
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

11

Poulan 10040500

Washer Lock 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

12

Poulan 71070512

Screw Hex Hd Cap 5/16-18 x 3/4
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

13

Poulan 165391

Muffler Gasket
(Superseded to 532165391)

$4.99

$

In Stock, Qty 20+

0

14

Poulan 13280336

Nipple Pipe 3/8 Npt X 4-1/2"
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

15

Poulan 13200300

Elbow Std 90 Degree 3/8-18 Npt
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

16

Poulan 11050600

Washer Lock Ext Tooth 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

17

Poulan 17490624

Screw Thdrol 3/8-16 x 1-1/2
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

23

Poulan 159880

Shield Heat

$

$

Not available

25

Poulan 145996

Choke Control 37"
(Superseded to 532145996)

$

$

Not available

26

Poulan 73920600

Nut, Keps 3/8-24 UNF
(Superseded to 873920600)

$3.99

$

Usually ships in 3-10 days

0

29

Poulan 137180

Kit Spark Arrestor (Flat Scrn)
(Superseded to 532137180)

$182.99

$

In Stock, only 1 left!

0

31

Poulan 157103

Tank Fuel 3 50 STLT w/o Sensor
(Superseded to 532157103)

$

$

Not available

32

Poulan 140527

Cap Asm Fuel W/sym Vented
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Poulan 123487X

Clamp Hose Black
(Superseded to 532123487)

$7.49

$

In Stock, only 4 left!

0

34

Poulan 106082X

Pad, Spacer
(Superseded to 532106082)

$

$

Not available

35

Poulan 17490512

Screw
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

37

Poulan 8543R

Line Fuel
(Superseded to 532008543)

$10.99

$

Usually ships in 3-10 days

0

38

Plug Oil Drain

Note: (Order From Engine Manufacturer)

$

$

Not available

39

Poulan 109227X

Pad, Idler
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

62

UNKNOWN

$

$

Not available

72

UNKNOWN

$

$

Not available

81

Poulan 128861

Nut Flange 1/4-20 Starter Nut
(Superseded to 539128861)

$31.99

$

Usually ships in 3-10 days

0

101

Poulan M73030800

Nut, Flange M8-1.25 (AYP part number)
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0
