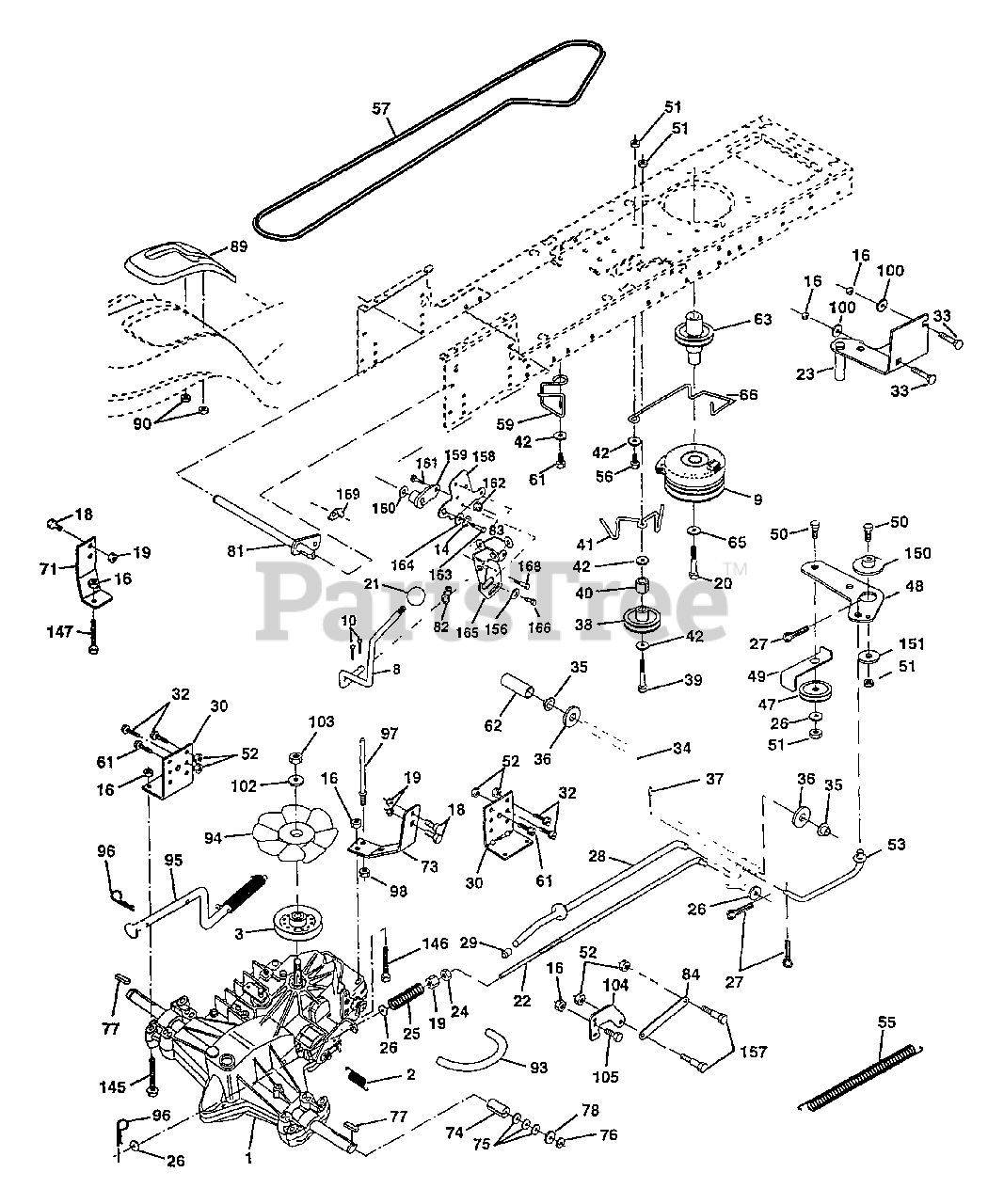

PP 20H46 A - Poulan Lawn Tractor (1999) Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title

1

Transaxle

Note: (See Breakdown); Hydro Gear Model 319-0650

$

$

Not available

2

Electrolux/AYP 142431

Spring, Return, Brake
(Superseded to 532142431)

$8.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 143995

Pulley, Hydro 0650 LT/CRD
(Superseded to 532143995)

$34.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 165866

Rod Shift
(Superseded to 532165866)

$

$

Not available

9

Electrolux/AYP 160889

Clutch Electric
(Superseded to 532160889)

$284.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 76020416

Pin Cotter 1/8 x 1 CAD
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 10040400

Washer Lock Hvy. Helical
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 73800500

Nut Lock Hex W/Ins 5/16-18 Unc P
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

18

Electrolux/AYP 74780616

Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 73800600

Nut Lock Hex W/Wsh 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 150280

Bolt Hex 7/16-20 x 4-1/4 Ga. 5
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

21

Electrolux/AYP 121274X

Knob, Deluxe 1/2-13
(Superseded to 532121274)

$10.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 145627

Rod, Brake Hydro
(Superseded to 532145627)

$193.99

$

In Stock, only 1 left!

0

23

Electrolux/AYP 154978

Bracket Asm Mtg Cl

$

$

Not available

24

Electrolux/AYP 73350600

Nut
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 106888X

Spring, Brake Rod
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 19131316

Washer
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 76020412

Pin Cotter 1/8 x 3/4 CAD.
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 145204

Rod, Parking Brake
(Superseded to 532145204)

$

$

Not available

29

Electrolux/AYP 71673

Cap, Parking Brake
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 130807

Bracket, Transaxle
(Superseded to 532130807)

$3.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 74760512

Bolt Hex Hd 5/16-18 Unc x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 72140506

Bolt 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 155071

Shaft, Foot Pedal
(Superseded to 532155071)

$

$

Not available

35

Electrolux/AYP 120183X

Bearing, Nylon
(Superseded to 532120183)

$6.99

$

In Stock, only 4 left!

0

36

Electrolux/AYP 19211616

Washer
(Superseded to 819211616)

$6.49

$

Usually ships in 3-10 days

0

37

Murray 1572H

Pin, Roll

$

$

Not available

38

Electrolux/AYP 131494

Pulley, Idler, Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

39

Electrolux/AYP 74760644

Bolt
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 4470J

Spacer, Split
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 165838

Keeper, Belt Retainer
(Superseded to 532165838)

$

$

Not available

42

Electrolux/AYP 19131312

Washer 13/32 x 13/16 x 12 Gauge
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

47

Murray 127783

Pulley, idler, V-Groove

$

$

Not available

48

Electrolux/AYP 154407

Bellcrank Clutch Grnd Drv STL
(Superseded to 532154407)

$8.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 123205X

Retainer, Belt
(Superseded to 532123205)

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 74760624

Bolt
(Superseded to 874760624)

$7.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 73680600

Nut Crownlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Murray 73680500

Nut Crownlock 5/16-18 UNC
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 105710X

Link, Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 105709X

Spring, Return, Clutch
(Superseded to 532105709)

$11.99

$

In Stock, only 3 left!

0

56

Electrolux/AYP 74760620

Bolt Fin Hex 3/8-16 UNC x 1-1/4
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 140294

V-Belt, Ground Drive
(Superseded to 532140294)

$39.99

$

In Stock, only 3 left!

0

59

Electrolux/AYP 140312

Keeper, Center Span
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 17490612

Screw Thdrol. 3/8-16 x 3/4 Ty. TT
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 8883R

Cover, Pedal
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 140186

Pulley, Engine
(Superseded to 532140186)

$113.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 71170764

Bolt, Hex
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

65

Electrolux/AYP 10040700

Washer
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

66

Electrolux/AYP 154778

Keeper Belt Engine
(Superseded to 532154778)

$12.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 140158

Strap Torque Lh Hydro
(Superseded to 532140158)

$

$

Not available

73

Electrolux/AYP 156347

Strap Torque Rh Hydro

$2.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 121199X

Spacer, Split
(Superseded to 532121199)

$

$

Not available

75

Electrolux/AYP 121749X

Washer 25/32 x 1-1/4 x 16 Gauge
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 12000001

E-Ring
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 123583X

Key, Square
(Superseded to 532123583)

$4.99

$

In Stock, Qty 7

0

78

Electrolux/AYP 121748X

Washer 25/32 x 1-5/8 x 16 Gauge
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

81

Electrolux/AYP 165591

Shaft Asm. Cross
(Superseded to 583016301)

$30.99

$

Usually ships in 3-10 days

0

82

Electrolux/AYP 165711

Spring Torsion
(Superseded to 532165711)

$7.49

$

In Stock, only 1 left!

0

83

UNKNOWN

$

$

Not available

84

Electrolux/AYP 165815

Link, Transaxle

$5.99

$

Usually ships in 3-10 days

0

89

Electrolux/AYP 164890

Console, Shift
(Superseded to 532164890)

$24.99

$

Usually ships in 3-10 days

0

90

Electrolux/AYP 124346X

Nut Self Thd Wsh-Hd 1/4 Zinc
(Superseded to 532124346)

$7.99

$

In Stock, only 1 left!

0

93

Electrolux/AYP 142564

Line Fuel Hydro 4"
(Superseded to 532142564)

$6.49

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 140462

Fan, Hydro 7"
(Superseded to 532140462)

$12.99

$

Usually ships in 3-10 days

0

95

Electrolux/AYP 144643

Control Asm Bypass Hydro
(Superseded to 532167696)

$

$

Not available

96

Electrolux/AYP 4497H

Retainer Spring 1" Zinc/Cad
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

97

Electrolux/AYP 140469

Keeper Belt Rh Hydro 0750. 18/20"
(Superseded to 532140469)

$

$

Not available

98

Electrolux/AYP 73510600

Nut Keps Hex 3/8-16 Unc
(Superseded to 873510600)

$6.49

$

Usually ships in 3-10 days

0

100

Electrolux/AYP 19111216

Washer 11/32 x 3/4 x 16 Ga.
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

102

Electrolux/AYP 141322

Washer Beliville .501D x 1.50D
(Superseded to 532141322)

$4.99

$

Usually ships in 3-10 days

0

103

Electrolux/AYP 73940800

Nut, Hex, Jam Toplock 1/2-20 UNF
(Superseded to 873940800)

$7.49

$

In Stock, only 4 left!

0

104

Electrolux/AYP 140156

Arm, Control Hydro
(Superseded to 532140156)

$

$

Not available

105

Electrolux/AYP 71070516

Screw Cap Hex 5/16 x 18 x 1
(Superseded to 871070516)

$4.99

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 74490540

Bolt, Hex FLGHD 5/16-18 Gr. 5
(Superseded to 874490540)

$4.99

$

Usually ships in 3-10 days

0

146

Electrolux/AYP 74490536

Bolt Hex Flghd 5/16-18 x 2-1/4
(Superseded to 583613101)

$2.99

$

Usually ships in 3-10 days

0

147

Electrolux/AYP 74490524

Bolt Hex Flghd 5/16-18 x 1-1/2

$

$

Not available

150

Electrolux/AYP 165850

Bushing Bellcrank Grd Drive
(Superseded to 532165850)

$

$

Not available

151

Electrolux/AYP 19133210

Washer 13/32 x 2 x 10 Ga.
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

156

Electrolux/AYP 166002

Washer Srrted 5/16 ID x 1 x .125
(Superseded to 532166002)

$6.49

$

Usually ships in 3-10 days

0

157

Electrolux/AYP 153236

Bolt shoulder 5/16-18 UNC-2a
(Superseded to 532171852)

$4.99

$

In Stock, Qty 8

0

158

Electrolux/AYP 165589

Bracket Shift Mount
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

159

Electrolux/AYP 165494

Hub Tapered Flange Shift LT
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

160

Electrolux/AYP 19292016

Washer 29/32 x 1-1/4 x 16 Ga.
(Superseded to 819292016)

$7.99

$

Usually ships in 3-10 days

0

161

Electrolux/AYP 72140406

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5
(Superseded to 872140406)

$4.99

$

Usually ships in 3-10 days

0

162

Electrolux/AYP 73680400

Nut Crownlock 1/4-20 Unc
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

163

Electrolux/AYP 74780416

Bolt Hex Fin 1/4-20 Unc x 1 Gr. 5
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

164

Electrolux/AYP 19091010

Washer 5/8 x .281 x 10 Ga.
(Superseded to 819091210)

$4.99

$

In Stock, only 2 left!

0

165

UNKNOWN

$

$

Not available

166

Electrolux/AYP 166880

Screw 5/16-18 x 5/8
(Superseded to 532166880)

$6.49

$

Usually ships in 3-10 days

0

167

Electrolux/AYP 19171216

Washer 17/32 x 3/4 x 16 Ga.
(Superseded to 819171216)

$

$

Not available

168

Electrolux/AYP 165492

Bolt Shoulder 5/16-18 x .561
(Superseded to 532165492)

$10.99

$

In Stock, only 3 left!

0

169

Electrolux/AYP 165580

Plate Fastening LT
(Superseded to 532165580)

$6.99

$

Usually ships in 3-10 days

0
