PP 208EPS24 (961980027-01) - Poulan Pro Snow Thrower (2010-07) Drive Parts Diagram

Snow Thrower

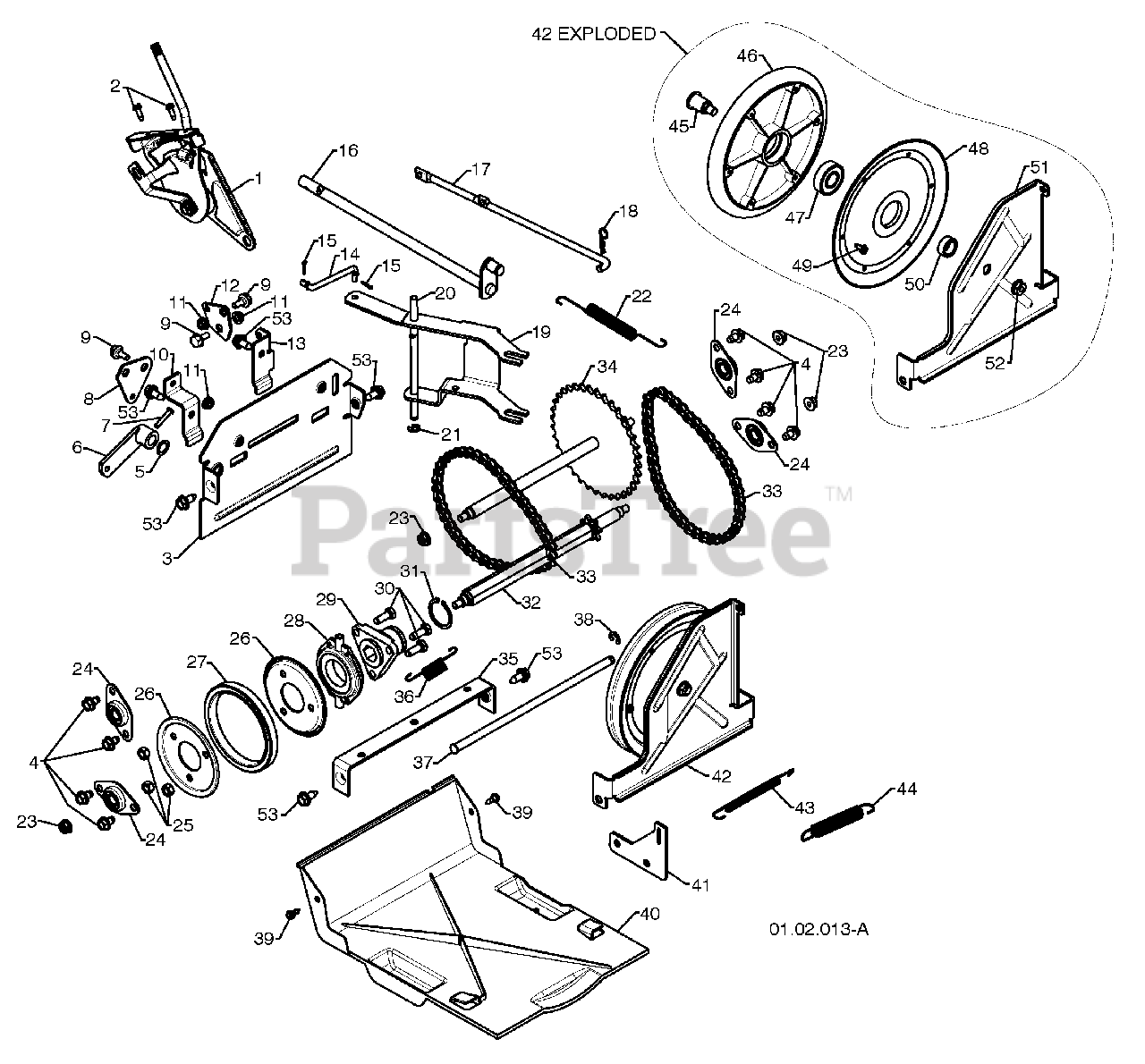

Drive Parts Diagram

  • Title
1

Electrolux/AYP 198875

SPEED SELECTOR ASSEMBLY
(Superseded to 532429667)

$

$

Not available

2

Electrolux/AYP 17501010

SCREW 10-24 X .625
(Superseded to 817501010)

$

$

Not available

3

Electrolux/AYP 402685X428

END PLATE
(Superseded to 532415431)

$18.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 17490508

SCREW 5/16-18 X .50
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 57079

WASHER
(Superseded to 532057079)

$6.49

$

In Stock, Qty 12

0

6

Electrolux/AYP 405485

CONTROL ARM
(Superseded to 532405485)

$9.99

$

In Stock, only 1 left!

0

7

Electrolux/AYP 198580

CLEVIS PIN
(Superseded to 532198580)

$6.49

$

Usually ships in 3-10 days

0

8

$2.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 402881

SHOULDER BOLT
(Superseded to 532402881)

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 403096X431

SHIFTER BRACKET

$2.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 191730

NUT 1/4-20
(Superseded to 532191730)

$7.49

$

In Stock, Qty 5

0

12

Electrolux/AYP 402856X431

CLUTCH PLATE
(Superseded to 532415435)

$2.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 416717X431

CLUTCH BRACKET

$2.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 187101

SHIFTER LINK
(Superseded to 532187101)

$

$

Not available

15

Electrolux/AYP 700279

RETAINER
(Superseded to 532700279)

$6.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 427542

CONTROL SHAFT

$

$

Not available

17

Electrolux/AYP 402568

CLUTCH ROD
(Superseded to 532402568)

$

$

Not available

18

Electrolux/AYP 169675

RETAINER
(Superseded to 532169675)

$7.49

$

In Stock, only 2 left!

0

19

Electrolux/AYP 401732

SHIFTER YOKE

$43.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 402310

PIVOT ROD
(Superseded to 532402310)

$6.49

$

In Stock, only 1 left!

0

21

Electrolux/AYP 12000036

RETAINER
(Superseded to 812000036)

$6.49

$

In Stock, only 1 left!

0

22

Electrolux/AYP 402878

RETURN SPRING
(Superseded to 532402878)

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 751153

NUT 5/16-18
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

24

Electrolux/AYP 408981

BEARING
(Superseded to 532408981)

$9.99

$

In Stock, Qty 10

0

25

Electrolux/AYP 73930500

NUT 5/16-18
(Superseded to 873930500)

$7.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 198176X431

RUBBER WHEEL PLATE
(Superseded to 532435789)

$

$

Not available

27

Electrolux/AYP 179831

RUBBER RING
(Superseded to 532179831)

$26.99

$

In Stock, Qty 5

0

28

Electrolux/AYP 175344

BEARING
(Superseded to 532175377)

$24.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 178613

WHEEL HUB
(Superseded to 532178613)

$30.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 74760514

SCREW 5/16-18-.875
(Superseded to 874760514)

$6.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 12000012

RETAINER RING
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 402187

SPROCKET SHAFT
(Superseded to 532402187)

$

$

Not available

33

Electrolux/AYP 401619

CHAIN
(Superseded to 532401619)

$15.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 417234

SPROCKET WELDMENT
(Superseded to 532437303)

$51.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 401984X431

SHIFTER BRACKET
(Superseded to 401984X479)

$3.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 180135

SPRING
(Superseded to 532180135)

$6.49

$

In Stock, Qty 10

0

37

Electrolux/AYP 402652

PLATE PIVOT ROD
(Superseded to 532402652)

$37.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 428288

E-RING .375
(Superseded to 532428288)

$4.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 184471

SHOULDER SCREW
(Superseded to 532184471)

$4.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 410877

BOTTOM PAN
(Superseded to 532410877)

$31.99

$

In Stock, only 2 left!

0

41

Electrolux/AYP 413429X431

SPRING BRACKET
(Superseded to 532416682)

$3.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 402689

DRIVE PLATE ASSEMBLY
(Superseded to 532402689)

$

$

Not available

43

Electrolux/AYP 414557

IDLER SPRING
(Superseded to 532414557)

$6.49

$

In Stock, only 3 left!

0

44

Electrolux/AYP 178828

IDLER SPRING
(Superseded to 532178828)

$6.49

$

In Stock, Qty 6

0

45

Electrolux/AYP 402504

PULLEY SHAFT
(Superseded to 532402504)

$

$

Not available

46

Electrolux/AYP 401820

DRIVE PLATE
(Superseded to 532402689)

$

$

Not available

47

Electrolux/AYP 198791

BEARING
(Superseded to 532198791)

$18.99

$

In Stock, Qty 9

0

48

Electrolux/AYP 402393

PULLEY HALF
(Superseded to 532402393)

$

$

Not available

49

Electrolux/AYP 17541008

SCREW 10-24 X .50
(Superseded to 817541008)

$4.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 402511

SPACER BEARING
(Superseded to 532402511)

$4.99

$

In Stock, only 1 left!

0

51

$12.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 132010

NUT 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 428867

SCREW 5/16-18 X .750
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0
