PP 208EPS24 (961980027-01) - Poulan Pro Snow Thrower (2009-08) Chassis/Engine/Pulleys Parts Diagram

Snow Thrower

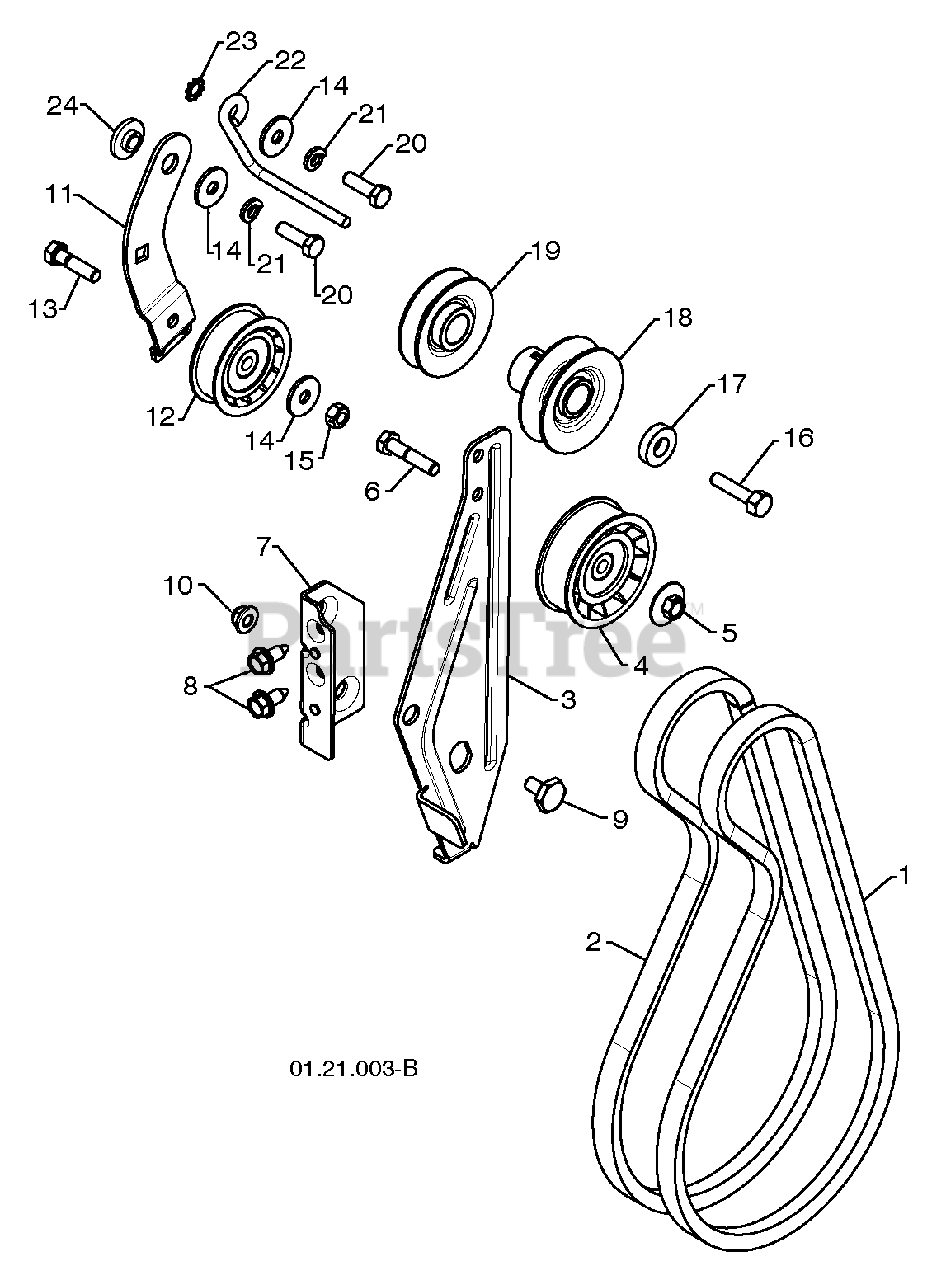

Chassis/Engine/Pulleys Parts Diagram

  • Title
1

Electrolux/AYP 408007

IMPELLER BELT
(Superseded to 532408007)

$43.99

$

In Stock, Qty 5

0

2

Electrolux/AYP 419744

TRACTION BELT

$34.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 423723X479

IDLER ARM BRACKET

$

$

Not available

4

Electrolux/AYP 180523

IDLER PULLEY
(Superseded to 532180523)

$24.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 426589

NUT 5/16-18
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

6

Electrolux/AYP 74780524

SCREW 5/16-18 X 1 .50
(Superseded to 596582201)

$3.99

$

In Stock, Qty 12

0

7

Electrolux/AYP 423990X479

IDLER BRACKET
(Superseded to 532423990)

$6.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 428867

SCREW 5/16-18 X .625
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

9

Electrolux/AYP 424297

SHOULDER BOLT 5/16-18 X .500

$

$

Not available

10

Electrolux/AYP 751153

NUT 5/16-18 NYLOCK
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

11

Electrolux/AYP 187786

TRACTION IDLER ARM
(Superseded to 585238401)

$44.99

$

In Stock, only 2 left!

0

12

Electrolux/AYP 180522

TRACTION PULLEY
(Superseded to 532180522)

$31.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 74780520

SCREW 5/16-18 X 1 .00
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 59289

WASHER
(Superseded to 532059289)

$4.99

$

In Stock, only 3 left!

0

15

Electrolux/AYP 73800500

NUT 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 851084

SCREW 3/8-24 X 1.375
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 400026

WASHER
(Superseded to 532400026)

$9.49

$

In Stock, only 3 left!

0

18

Electrolux/AYP 426491

PULLEY ENG IMPELLER
(Superseded to 532426491)

$26.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 426490

PULLEY ENG TRACTION
(Superseded to 532426490)

$15.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 74610516

SCREW 5/16-18 X 1 .00
(Superseded to 874610516)

$4.99

$

In Stock, only 4 left!

0

21

Electrolux/AYP 10040500

LOCKWASHER 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 155452

BELT GUIDE
(Superseded to 532155452)

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 11050500

LOCKWASHER 5/16
(Superseded to 811050500)

$

$

Not available

24

Electrolux/AYP 175331

IDLER BUSHING
(Superseded to 532175331)

$4.99

$

Usually ships in 3-10 days

0
