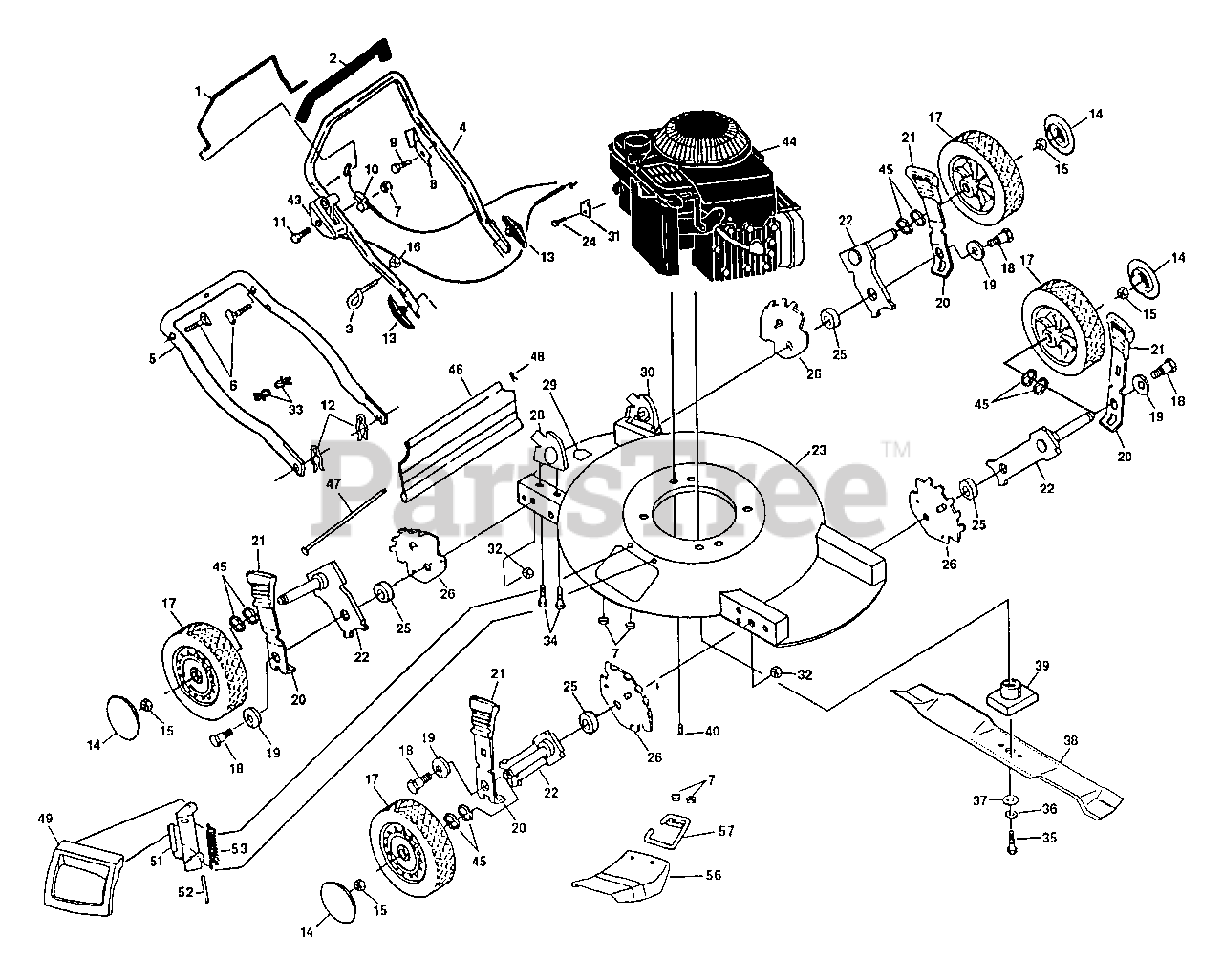

PP 2055 A - Poulan Pro Walk-Behind Mower Assembly Parts Diagram

Walk-Behind Mower

Assembly Parts Diagram

  • Title

1

Poulan 850735

Control Bar

$

$

Not available

2

Poulan 155890

Handle Grip
(Superseded to 585161003)

$

$

Not available

3

Poulan 132001

Rope Guide (AYP part number)
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

4

Poulan 145642X479

Upper Handle
(Superseded to 166268X479)

$

$

Not available

5

Poulan 157081X479

Lower Handle
(Superseded to 532157081)

$

$

Not available

6

Poulan 131959

Handle Bolt 5/16-18 x 1-3/4 (AYP part number)
(Superseded to 532183724)

$

$

Not available

7

Poulan 63601

Locknut 1/4-20

$

$

Not available

8

Poulan 850733X004

Up-Stop Bracket
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

9

Poulan 750097

Hex Washer Head Screw #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

10

Poulan 130861

Engine Zone Control Cable
(Superseded to 532130861)

$

$

Not available

11

Poulan 144929

Hex Washer Head Screw 1/4-20 x 2-1/8
(Superseded to 532183365)

$6.49

$

Usually ships in 3-10 days

0

12

Poulan 51793

Hairpin Cotter
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

13

Poulan 136376

Handle Knob (AYP part number)
(Superseded to 532183724)

$

$

Not available

14

Poulan 77400

Hubcap
(Superseded to 532077400)

$7.49

$

In Stock, only 2 left!

0

15

Poulan 83923

Hex Flange Locknut 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

16

Poulan 63601

Locknut 1/4-20

$

$

Not available

17

Poulan 532801847

Wheel & Tire Assembly

$

$

Not available

18

Poulan 142748

Shoulder Bolt
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

19

Poulan 62335

Belleville Washer
(Superseded to 532062335)

$9.99

$

Usually ships in 3-10 days

0

20

Poulan 700331X004

Selector Spring
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

21

Poulan 701037

Selector Knob
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

22

Poulan 145935X004

Axle Arm Assembly
(Superseded to 532145935)

$

$

Not available

23

Poulan 154403

Lawn Mower Housing

Note: Includes Key No. 29

$142.99

$

Usually ships in 3-10 days

0

24

Poulan 83816

Screw
(Superseded to 532083816)

$6.49

$

Usually ships in 3-10 days

0

25

Poulan 146630

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

26

Poulan 700325X007

Wheel Adjusting Bracket (R.F./L.R.)
(Superseded to 532700325)

$4.99

$

Usually ships in 3-10 days

0

28

Poulan 151665X479

Handle Bracket Assembly (Right) (AYP part number)
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

29

Poulan 107339

Danger Decal (AYP part number)

$

$

Not available

30

Poulan 151667X479

Handle Bracket Assembly (Left) (AYP part number)
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

31

Poulan 532111190

Clamp (AYP part number)

$

$

Not available

32

Poulan 751592

Locknut 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

33

Poulan 151517

Cable Clip
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

34

Poulan 149741

Thread Cutting Screw 5/16-18 x 3/4
(Superseded to 532149741)

$7.49

$

In Stock, only 2 left!

0

35

Poulan 851084

Hex Head Screw 3/8-24 x 1-3/8
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

36

Poulan 850263

Helical Lock Washer 3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

37

Poulan 851074

Hardened Washer
(Superseded to 532851074)

$4.99

$

In Stock, Qty 7

0

38

Poulan 145106

20" Blade
(Superseded to 532145106)

$20.99

$

In Stock, only 1 left!

0

39

Poulan 851514

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

40

Poulan 150406

Hex Head Thread Rolling Screw 3/8-16 x 1
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

43

Poulan 700417

Throttle Control
(Superseded to 532700417)

$24.99

$

Usually ships in 3-10 days

0

44

Engine - B&S 129802

$

$

Not available

45

Poulan 57143

Wave Washer
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

46

Poulan 150985

Rear Skirt

$

$

Not available

47

Poulan 150984

Skirt Rod
(Superseded to 532150984)

$

$

Not available

48

Poulan 700279

Retainer Clip
(Superseded to 532700279)

$6.49

$

Usually ships in 3-10 days

0

49

Poulan 154829

Mulcher Door Assembly (Complete)
(Superseded to 532154829)

$6.99

$

Usually ships in 3-10 days

0

51

Poulan 87593

Hinge Door Bracket Assembly
(Superseded to 532087593)

$6.99

$

Usually ships in 3-10 days

0

52

Poulan 147286

Hinge Rod
(Superseded to 532147286)

$8.99

$

In Stock, Qty 9

0

53

Poulan 152124

Torsion Spring
(Superseded to 532152124)

$7.49

$

In Stock, only 4 left!

0

56

Poulan 752118

Deflector Mulcher

$

$

Not available

57

Poulan 751399

Bracket Grass Catcher Frame
(Superseded to 532751399)

$13.99

$

Usually ships in 3-10 days

0

Poulan 532145665

Operator's Manual (English)

$2.99

$

Usually ships in 3-10 days

0

Poulan 145666

Operator's Manual (French)

$2.99

$

Usually ships in 3-10 days

0

Poulan 159344

Replacement Parts Manual

$2.99

$

Usually ships in 3-10 days

0
