PP 2050D - Poulan Lawn Tractor (1993) STEERING Parts Diagram

Lawn Tractor

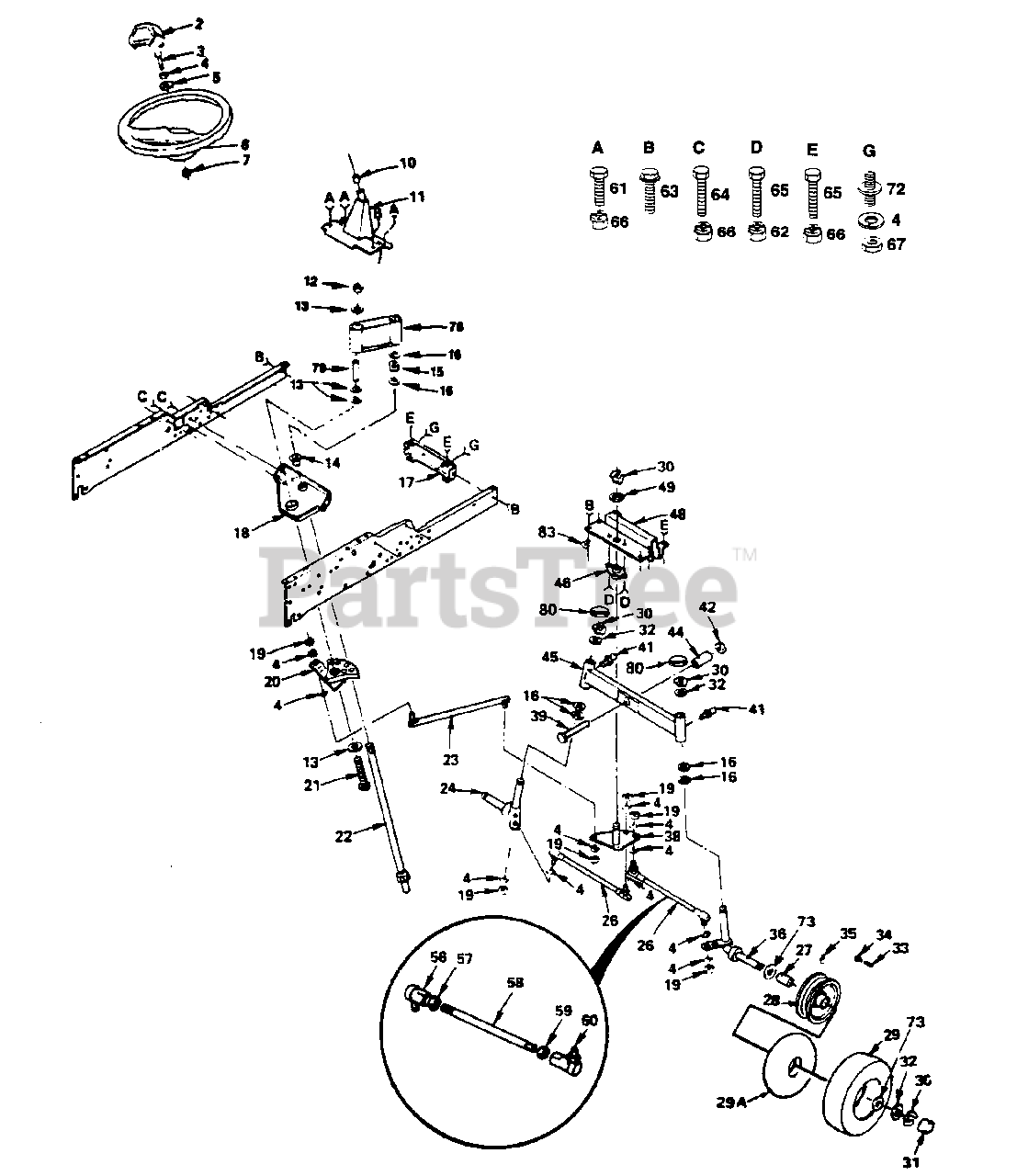

STEERING Parts Diagram

  • Title

2

Electrolux/AYP 532126805

Cap, Steering Wheel
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 874780616

Bolt, Hex 3/8-16 x 1 Grade 5

$6.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 810040600

Washer, Lock 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 819133808

Washer 13/32 x 2-3/8 x 8 Gauge
(Superseded to 583789501)

$

$

Not available

6

Electrolux/AYP 532121472

Wheel, Steering
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532100711

Adapter, Steering
(Superseded to 532186737)

$9.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532009038

Bearing
(Superseded to 9038R)

$

$

Not available

11

Electrolux/AYP 532101274

Support Assembly, Dash

$

$

Not available

12

Electrolux/AYP 873680800

Nut, Crownlock 1/2-13
(Superseded to 596433401)

$3.99

$

In Stock, Qty 18

0

13

Electrolux/AYP 819172610

Washer 17/32 x 1-5/8 x 10 Gauge
(Superseded to 532126881)

$3.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 532104239

Bearing, Flanged

$12.99

$

In Stock, only 2 left!

0

15

Electrolux/AYP 812000034

Klip, Ring

$

$

Not available

16

Electrolux/AYP 532124931

Bearing, Thrust
(Superseded to 532006266)

$7.49

$

In Stock, Qty 14

0

17

Electrolux/AYP 532005213

Bracket, Frame Front

$

$

Not available

18

Electrolux/AYP 532102439

Bracket, Support, Steering
(Superseded to 532104240)

$

$

Not available

19

Electrolux/AYP 873610600

Nut, Hex 3/8-24
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 532120424

Sector Assembly

$

$

Not available

21

Electrolux/AYP 874780880

Bolt, Hex 1/2-13 x 5 Grade 5

$2.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 532104591

Shaft, Steering

$

$

Not available

23

Electrolux/AYP 532110497

Link, Drag
(Superseded to 110497X)

$

$

Not available

24

Electrolux/AYP 532139266

Spindle, L.H.

$

$

Not available

26

Electrolux/AYP 532109849

Rod, Tie (Inc. Key #56-60)

$

$

Not available

27

Electrolux/AYP 532124959

Bearing
(Superseded to 532009040)

$7.99

$

In Stock, Qty 20+

0

28

Electrolux/AYP 532144509

Rim Assembly
(Superseded to 532106228)

$157.99

$

In Stock, only 2 left!

0

29

Electrolux/AYP 532106230

Tire
(Superseded to 532122075)

$87.99

$

Usually ships in 3-10 days

0

29A

Electrolux/AYP 532008134

Tube (Optional, Service Item Only)

$66.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 812000029

Klip, Ring

$4.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 532104757

Cap, Axle

$4.99

$

In Stock, Qty 20+

0

32

Electrolux/AYP 532121748

Washer 25/32 x 1-5/8 x 16 Gauge

$4.99

$

In Stock, Qty 10

0

33

Electrolux/AYP 532059192

Cap, Valve

$7.49

$

In Stock, Qty 9

0

34

Electrolux/AYP 532065139

Stem, Valve

$9.99

$

In Stock, only 1 left!

0

35

Electrolux/AYP 532124957

Fitting, Grease
(Superseded to 532000278)

$6.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532139265

Spindle, R.H.

$

$

Not available

38

Electrolux/AYP 532108137

Bellcrank Assembly

$

$

Not available

39

Electrolux/AYP 874781044

Bolt, Hex 5/8-11 x 2-3/4 Grade 5

$

$

Not available

41

Electrolux/AYP 532124836

Fitting, Grease
(Superseded to 532006855)

$7.49

$

In Stock, only 2 left!

0

42

Electrolux/AYP 873681000

Nut, Crownlock
(Superseded to 583612401)

$3.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 532136518

Spacer Bearing

$9.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 532137094

Axle Assembly, Front
(Superseded to 532178557)

$

$

Not available

46

Electrolux/AYP 532140015

Bushing, Bellcrank

$

$

Not available

48

Electrolux/AYP 532005284

Bracket, Axle

$

$

Not available

49

Electrolux/AYP 819292016

Washer 29/32 x 1-1/4 x 16 Gauge

$7.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 532109851

Joint, Tie Rod, L.H. Thread

$31.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 873700600

Nut, Hex Jam 3/8-24 L.H.

$6.49

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 532007919

Rod, Tie
(Superseded to 532121159)

$

$

Not available

59

Electrolux/AYP 873360600

Nut, Hex Jam 3/8-24

$6.49

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 532109850

Joint, Tie Rod, R.H. Thread
(Superseded to 532121160)

$24.99

$

In Stock, only 1 left!

0

61

Electrolux/AYP 874760612

Bolt, Hex 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

62

Electrolux/AYP 873680600

Nut, Crownlock 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, Qty 8

0

63

Electrolux/AYP 817490612

Screw, Hex Washer Thd. Rolling 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

64

Electrolux/AYP 874780616

Bolt, Hex 3/8-16 x 1 Grade 5

$6.49

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 874760616

Bolt, Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 873800600

Nut, Lock Hex w/Ins 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 873220600

Nut, Hex 3/8-16

$6.49

$

In Stock, only 2 left!

0

72

Electrolux/AYP 532106615

Pin Mounting, Idler Bracket
(Superseded to 532677928)

$6.49

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 532121749

Washer 25/32 x 1-1/4 x 16 Gauge

$3.49

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 532121177

Collar Weld Assembly

$

$

Not available

79

Electrolux/AYP 532120199

Tube

$

$

Not available

80

Electrolux/AYP 532121232

Dust Cap Cover

$4.99

$

In Stock, Qty 8

0

83

Electrolux/AYP 532100207

Clip 3/8

$4.99

$

Usually ships in 3-10 days

0
