PP 2050D - Poulan Lawn Tractor (1993) GROUND DRIVE Parts Diagram

Lawn Tractor

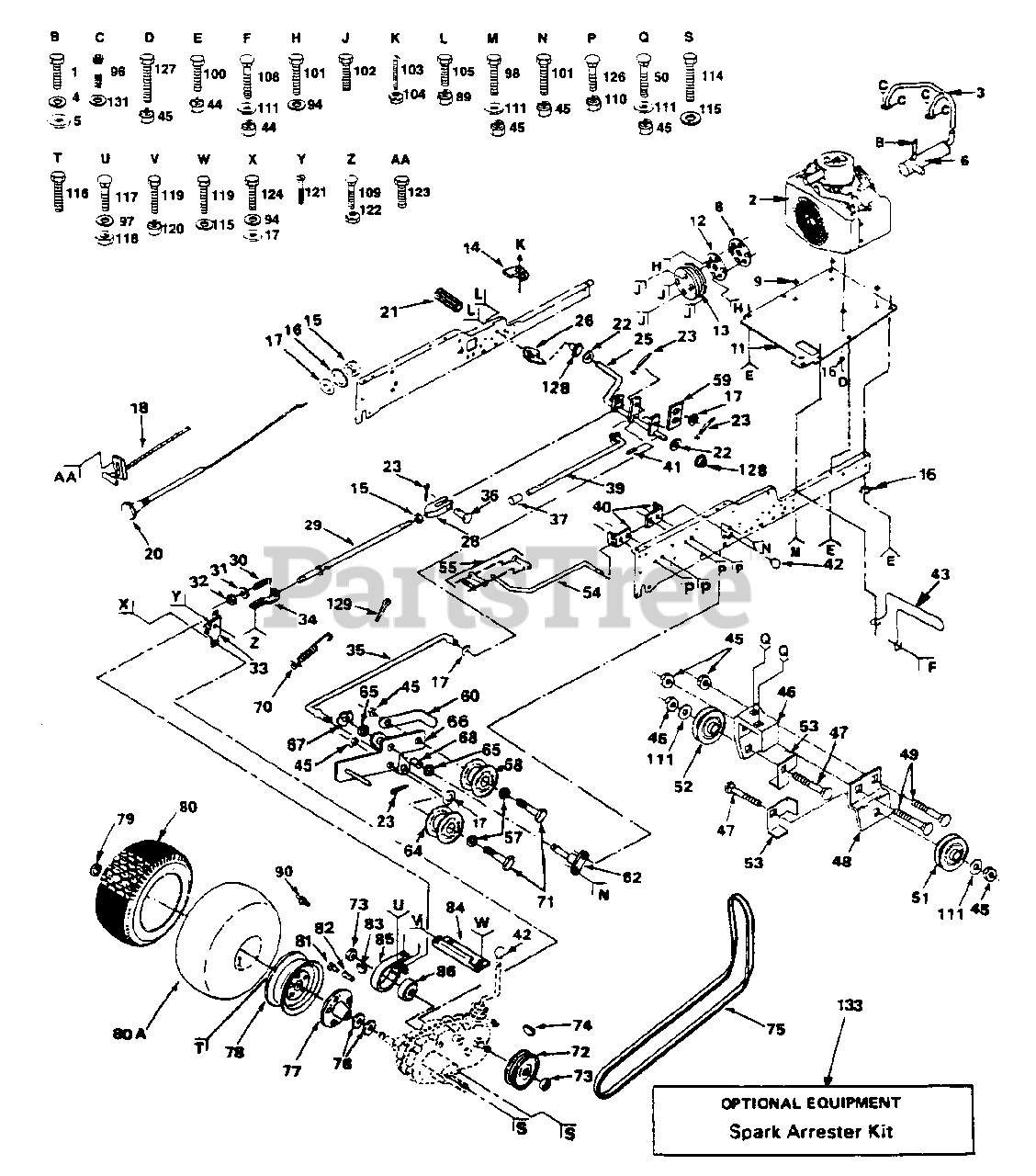

GROUND DRIVE Parts Diagram

  • Title

1

Electrolux/AYP 874780412

Bolt, Hex Fin 1/4-20 x 3/4
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532110891

Tube Assembly, Exhaust

$

$

Not available

4

Electrolux/AYP 810040400

Washer, Lock Hvy Helical 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

5

Electrolux/AYP 819091212

Washer 9/32 x 3/4 x 12 Gauge

$

$

Not available

6

Electrolux/AYP 532127881

Muffler, Exhaust

$

$

Not available

8

Electrolux/AYP 532110947

Chaff Guard

$3.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532133692

Spacer

$

$

Not available

11

Electrolux/AYP 532110867

Base, Engine

$

$

Not available

12

Electrolux/AYP 532104577

Adapter

$27.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532121355

Pulley, Ground Drive

$

$

Not available

14

Electrolux/AYP 532005304

Actuator, Switch, Interlock
(Superseded to 532178575)

$

$

Not available

15

Electrolux/AYP 873610600

Nut, Hex 3/8-24
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 811050600

Washer, Lock Ext. Tooth 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 819131316

Washer 13/32 x 13/16 x 16 Gauge

$4.99

$

In Stock, Qty 5

0

18

Electrolux/AYP 532132746

Control, Throttle
(Superseded to 532121467)

$

$

Not available

20

Electrolux/AYP 532132780

Control, Choke
(Superseded to 532121470)

$

$

Not available

21

Electrolux/AYP 532123533

Cover, Pedal

$6.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 532121749

Washer 25/32 x 1-1/4 x 16 Gauge

$3.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 876020312

Pin, Cotter 3/32 x 3/4
(Superseded to 876020308)

$

$

Not available

25

Electrolux/AYP 532104375

Shaft, Foot Pedal

$

$

Not available

26

Electrolux/AYP 532104601

Bracket, Interlock

$

$

Not available

28

Electrolux/AYP 532100604

Yoke

$

$

Not available

29

Electrolux/AYP 532005308

Rod, Brake

$

$

Not available

30

Electrolux/AYP 532007241

Spring, Compression

$5.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 819131614

Washer 13/32 x 1 x 14 Gauge
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 873530600

Nut, Crownlock 3/8-24
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

33

Electrolux/AYP 532124692

Bracket, Brake
(Superseded to 532677637)

$7.49

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 532007229

Guide, Rod, Brake

$

$

Not available

35

Electrolux/AYP 532101356

Rod, Clutch

$

$

Not available

36

Electrolux/AYP 532005102

Pin, Clevis

$

$

Not available

37

Electrolux/AYP 532071673

Cap, Plunger

$5.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 532136284

Rod, Parking Brake

$

$

Not available

40

Electrolux/AYP 532105598

Bracket, Rod, Shift

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 532005142

Pin, Roll 3/16 x 1-1/4

$

$

Not available

42

Electrolux/AYP 532121466

Knob
(Superseded to 121466X)

$

$

Not available

43

Electrolux/AYP 532108885

Muffler, Guard

$

$

Not available

44

Electrolux/AYP 873800600

Nut, Lock Hex W/Inss. 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 873680600

Nut, Crownlock 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

46

Electrolux/AYP 532139994

Bracket, V-Pulley, Drive, Mule

$

$

Not available

47

Electrolux/AYP 872110614

Bolt, Carriage 3/8-16 x 1-3/4
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0

48

Electrolux/AYP 532139871

Bracket, Idler, Flat

$

$

Not available

49

Electrolux/AYP 872140608

Bolt, Carriage 3/8-16 x 1
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 872140606

Bolt, Carriage 3/8-16 x 3/4

$

$

Not available

51

Electrolux/AYP 532102403

Idler, Flat

$39.99

$

In Stock, only 1 left!

0

52

Electrolux/AYP 532101344

Pulley, Idler

$45.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 532122824

Keeper, Belt

$

$

Not available

54

Electrolux/AYP 532122253

Rod, Shift, Hi - Lo

$14.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 532122268

Clip, Connecting Link, Spring

$6.49

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 819131413

Washer 13/32 x 7/8 x 13 Gauge

$2.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 532104360

Idler, Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

59

Electrolux/AYP 532121358

Retainer, Spring

$

$

Not available

60

Electrolux/AYP 532121360

Retainer, Belt

$2.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 532101358

Bracket Assembly, Clutch

$

$

Not available

64

Electrolux/AYP 532121361

Idler, Grooved
(Superseded to 532139123)

$37.99

$

In Stock, only 1 left!

0

65

Electrolux/AYP 532000207

Washer, Hardened

$6.49

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 532121356

Bracket, Clutch W/Bearing (Incl. Key No. 68)

$

$

Not available

67

Electrolux/AYP 812000039

Ring, Klip

$6.49

$

In Stock, Qty 7

0

68

Electrolux/AYP 532105706

Bearing, Idler

$7.49

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 532121357

Spring, Extension

$

$

Not available

71

Electrolux/AYP 874760628

Bolt, Hex 3/8-16 x 1-3/4
(Superseded to 874780628)

$6.49

$

In Stock, only 2 left!

0

72

Electrolux/AYP 532137524

Pulley, Transaxle

$

$

Not available

73

Electrolux/AYP 532009204

Locknut 1/2-20

$

$

Not available

74

Electrolux/AYP 532124708

Key, Woodruff 3/16 x 5/8
(Superseded to 532009858)

$

$

Not available

75

Electrolux/AYP 532110883

V-Belt

$51.99

$

In Stock, only 2 left!

0

76

Electrolux/AYP 532007563

Washer, Thrust, Axle

$8.99

$

In Stock, only 1 left!

0

77

Electrolux/AYP 532135758

Bushing, Assembly and Wheel Hub
(Superseded to 532149176)

$42.99

$

Usually ships in 3-10 days

0

78

Electrolux/AYP 532144510

Assembly, Rim Rear
(Superseded to 532106277)

$227.99

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 812000034

Ring, Klip

$

$

Not available

80

Electrolux/AYP 532105588

Tire, Rear
(Superseded to 532122077)

$399.99

$

Usually ships in 3-10 days

0

80A

Electrolux/AYP 532007154

Tube, Rear (Optional, Service Item Only)

$80.99

$

Usually ships in 3-10 days

0

81

Electrolux/AYP 532059192

Cap, Valve

$7.49

$

In Stock, Qty 9

0

82

Electrolux/AYP 532065139

Stem, Valve

$9.99

$

In Stock, only 1 left!

0

83

Electrolux/AYP 532125096

Key, Woodruff #9 (3/16 x 3/4)

$9.49

$

In Stock, only 1 left!

0

84

Electrolux/AYP 532120404

Bracket, Support, Transaxle
(Superseded to 532156404)

$

$

Not available

85

Electrolux/AYP 532101122

Band, Brake

$

$

Not available

86

Electrolux/AYP 532000214

Drum, Brake

$

$

Not available

89

Electrolux/AYP 873800400

Nut, Lock w/Ins. 1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

90

Electrolux/AYP 532124860

Fitting, Grease

$6.99

$

In Stock, only 2 left!

0

94

Electrolux/AYP 810040600

Washer, Lock 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

96

Electrolux/AYP 874570512

Screw, Hex Socket Hd. 5/16-16 x 3/4

$3.99

$

In Stock, only 4 left!

0

97

Electrolux/AYP 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

98

Electrolux/AYP 874760620

Bolt, Hex 3/8-16 x 1-1/4 Grade 5

$7.49

$

Usually ships in 3-10 days

0

100

Electrolux/AYP 874760616

Bolt, Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

101

Electrolux/AYP 874780616

Bolt, Hex Head 3/8-16 x 1 Grade 5

$6.49

$

Usually ships in 3-10 days

0

102

Electrolux/AYP 817190516

Screw, Hex 5/16-18 x 1

$

$

Not available

103

Electrolux/AYP 874321016

Screw, Fin #10-24 x 1

$

$

Not available

104

Electrolux/AYP 873631000

Locknut #10-24
(Superseded to 532069180)

$6.49

$

Usually ships in 3-10 days

0

105

Electrolux/AYP 874760412

Bolt, Hex Head 1/4-20 x 3/4

$7.49

$

In Stock, only 1 left!

0

108

Electrolux/AYP 872110608

Bolt, Carriage 3/8-16 x 1 Grade 5

$6.49

$

Usually ships in 3-10 days

0

109

Electrolux/AYP 872110506

Bolt, Carriage 5/16-18 x 3/4

$7.49

$

In Stock, Qty 20+

0

110

Electrolux/AYP 873800500

Nut, Lock Hex W/Ins. 5/16-18
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

111

Electrolux/AYP 819131612

Washer 13/32 x 1 x 12 Gauge

$6.49

$

Usually ships in 3-10 days

0

114

Electrolux/AYP 874760720

Bolt, Hex 7/16-14 x 1-1/4
(Superseded to 874780720)

$6.99

$

Usually ships in 3-10 days

0

115

Electrolux/AYP 810040700

Washer, Lock 7/16
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

116

Electrolux/AYP 532140080

Bolt, Hub

$3.99

$

Usually ships in 3-10 days

0

117

Electrolux/AYP 872140405

Bolt, Carriage 1/4-20 x 5/8

$7.49

$

In Stock, Qty 7

0

118

Electrolux/AYP 873220400

Nut, Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

119

Electrolux/AYP 874760716

Bolt, Hex 7/16-14 x 1
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

120

Electrolux/AYP 873680700

Nut, Crownlock 7/16-14

$2.99

$

Usually ships in 3-10 days

0

121

Electrolux/AYP 874370612

Screw, Mach. Udrcut. Flat Head 3/8-16 x 3/4

$

$

Not available

122

Electrolux/AYP 532124949

Locknut 5/16-18

$3.99

$

Usually ships in 3-10 days

0

123

Electrolux/AYP 817720410

Screw, Hex 1/4-20 x 1/2
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

124

Electrolux/AYP 874760614

Bolt, Hex 3/8-16 x 7/8
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

126

Electrolux/AYP 872140506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

127

Electrolux/AYP 874780624

Bolt, Hex 3/8-16 UNC x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

128

Electrolux/AYP 532110895

Nyliner
(Superseded to 110895X)

$

$

Not available

129

Electrolux/AYP 876020816

Pin, Cotter 1/4 x 1

$6.49

$

Usually ships in 3-10 days

0

131

Electrolux/AYP 810170500

Washer, Lock 5/16

$

$

Not available

133

Electrolux/AYP 532132922

Kit, Arrester, Spark

$

$

Not available
