PP 2050 - Poulan Pro Lawn Tractor STEERING Parts Diagram

Lawn Tractor

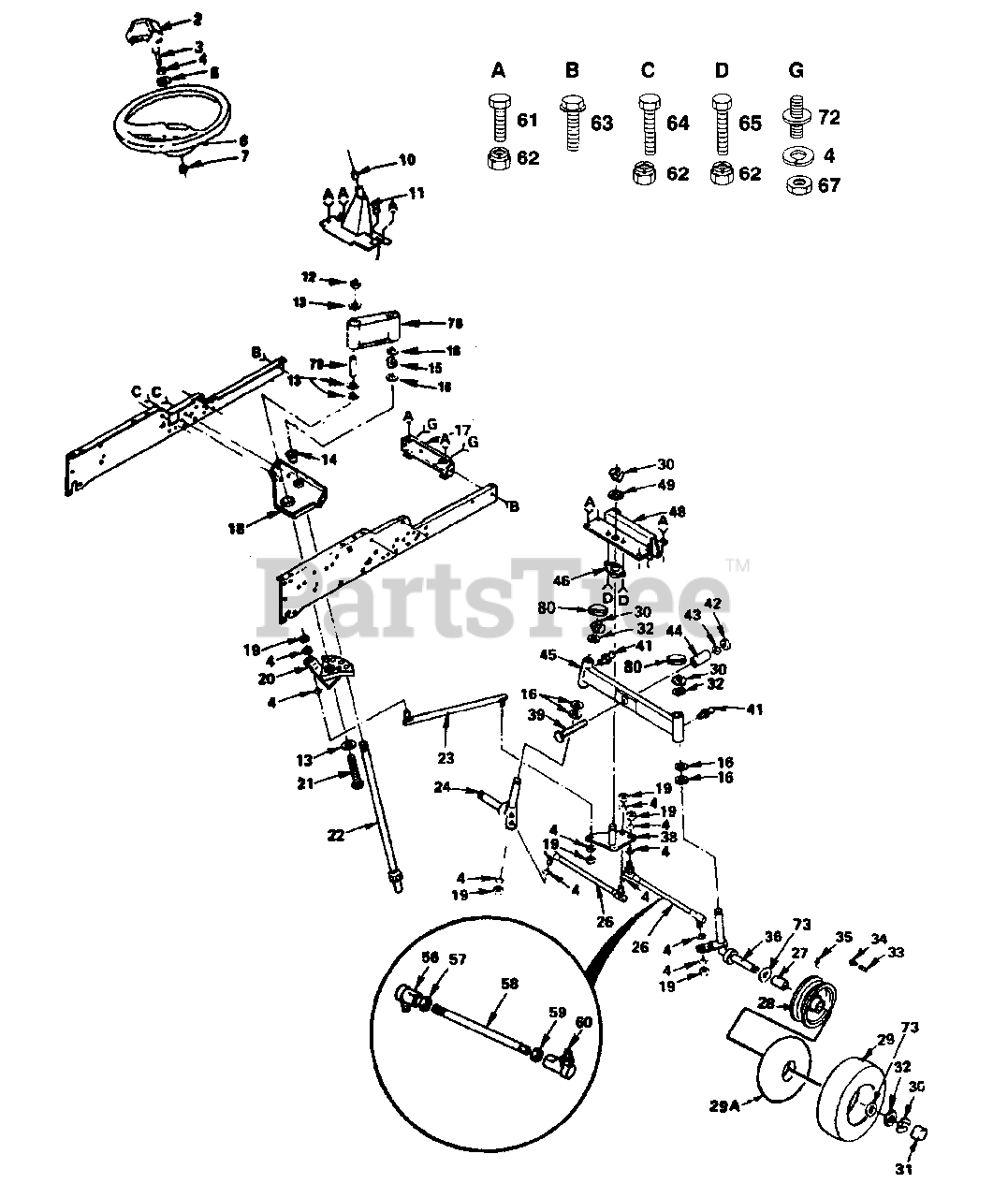

STEERING Parts Diagram

  • Title

2

Poulan 532126805

Cap, Steering Wheel (AYP part number)
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

3

Poulan 874780616

Bolt, Hex 3/8-16 x 1 Grade 5 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

4

Poulan 810040600

Washer, Lock 3/8 (AYP part number)
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

5

Poulan 819133808

Washer 13/32 x 2-3/8 x 8 Gauge (AYP part number)
(Superseded to 583789501)

$

$

Not available

6

Poulan 532121472

Wheel, Steering (AYP part number)
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

7

Poulan 532100711

Adapter, Steering (AYP part number)
(Superseded to 532186737)

$9.49

$

In Stock, Qty 8

0

10

Poulan 532009038

Bearing (AYP part number)
(Superseded to 9038R)

$

$

Not available

11

Poulan 532101274

Support Assembly, Dash (AYP part number)

$

$

Not available

12

Poulan 873680800

Nut, Crownlock 1/2-13 (AYP part number)
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

13

Poulan 819172610

Washer 17/32 x 1-5/8 x 10 Gauge (AYP part number)
(Superseded to 532126881)

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 532104239

Bearing, Flanged (AYP part number)

$12.99

$

In Stock, only 1 left!

0

15

Poulan 812000034

Klip, Ring (AYP part number)

$

$

Not available

16

Poulan 532124931

Bearing, Thrust (AYP part number)
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

17

Poulan 532005213

Bracket, Frame Front (AYP part number)

$

$

Not available

18

Poulan 532102439

Bracket, Support, Steering (AYP part number)
(Superseded to 532104240)

$

$

Not available

19

Poulan 873610600

Nut, Hex 3/8-24 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

20

Poulan 532120424

Sector Assembly (AYP part number)

$

$

Not available

21

Poulan 874780880

Bolt, Hex 1/2-13 x 5 Grade 5 (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

22

Poulan 532104591

Shaft, Steering (AYP part number)

$

$

Not available

23

Poulan 532110497

Link, Drag (AYP part number)
(Superseded to 110497X)

$

$

Not available

24

Poulan 532121168

Spindle, L.H. (AYP part number)

$

$

Not available

26

Poulan 532121159

Rod, Tie (Inc. Key #56-60) (AYP part number)

$

$

Not available

27

Poulan 532124959

Bearing (AYP part number)
(Superseded to 532009040)

$7.99

$

In Stock, Qty 20+

0

28

Poulan 532124751

Rim Assembly (AYP part number)

$

$

Not available

29

Poulan 532106230

Tire (AYP part number)
(Superseded to 532122075)

$87.99

$

In Stock, only 2 left!

0

29A

Poulan 532008134

Tube (Optional, Service Item Only) (AYP part number)

$66.99

$

Usually ships in 3-10 days

0

30

Poulan 812000029

Klip, Ring (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 532104757

Cap, Axle (AYP part number)

$4.99

$

In Stock, Qty 20+

0

32

Poulan 532121748

Washer 25/32 x 1-5/8 x 16 Gauge (AYP part number)

$4.99

$

In Stock, Qty 20+

0

33

Poulan 532059192

Cap, Valve (AYP part number)

$7.49

$

In Stock, Qty 9

0

34

Poulan 532065139

Stem, Valve (AYP part number)

$9.99

$

In Stock, only 3 left!

0

35

Poulan 532124957

Fitting, Grease (AYP part number)
(Superseded to 532000278)

$6.99

$

Usually ships in 3-10 days

0

36

Poulan 532121167

Spindle, R.H. (AYP part number)

$

$

Not available

38

Poulan 532108137

Bellcrank Assembly (AYP part number)

$

$

Not available

39

Poulan 874781044

Bolt, Hex 5/8-11 x 2-3/4 Grade 5 (AYP part number)

$

$

Not available

41

Poulan 532124836

Fitting, Grease (AYP part number)
(Superseded to 532006855)

$7.49

$

In Stock, only 2 left!

0

42

Poulan 873221000

Nut, Hex 5/8-11 (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

43

Poulan 810041000

Washer, Lock 5/8 (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

44

Poulan 532005298

Tube, Pivot, Axle (AYP part number)

$

$

Not available

45

Poulan 532005297

Axle Assembly, Front (AYP part number)
(Superseded to 532677999)

$364.99

$

Usually ships in 3-10 days

0

46

Poulan 532005292

Bushing, Bellcrank (AYP part number)
(Superseded to 532140342)

$

$

Not available

48

Poulan 532005284

Bracket, Axle (AYP part number)

$

$

Not available

49

Poulan 819292016

Washer 29/32 x 1-1/4 x 16 Gauge (AYP part number)

$7.99

$

Usually ships in 3-10 days

0

56

Poulan 532121161

Joint, Tie Rod, L.H. Thread (AYP part number)
(Superseded to 532109851)

$31.99

$

Usually ships in 3-10 days

0

57

Poulan 873700600

Nut, Hex Jam 3/8-24 L.H. (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

58

Poulan 532121162

Rod, Tie (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

59

Poulan 873360600

Nut, Hex Jam 3/8-24 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

60

Poulan 532121160

Joint, Tie Rod, R.H. Thread (AYP part number)

$24.99

$

In Stock, only 1 left!

0

61

Poulan 874760612

Bolt, Hex 3/8-16 x 3/4 (AYP part number)

$4.99

$

In Stock, only 3 left!

0

62

Poulan 873680600

Nut, Crownlock 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

63

Poulan 817490612

Screw, Hex Washer Thd. Rolling 3/8-16 x 3/4 (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

64

Poulan 874780616

Bolt, Hex 3/8-16 x 1 Grade 5 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

65

Poulan 874760616

Bolt, Hex 3/8-16 x 1 (AYP part number)
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

67

Poulan 873220600

Nut, Hex 3/8-16 (AYP part number)

$6.49

$

In Stock, only 2 left!

0

72

Poulan 532106615

Pin Mounting, Idler Bracket (AYP part number)
(Superseded to 532677928)

$6.49

$

Usually ships in 3-10 days

0

73

Poulan 532121749

Washer 25/32 x 1-1/4 x 16 Gauge (AYP part number)

$3.49

$

Usually ships in 3-10 days

0

76

Poulan 532121177

Collar Weld Assembly (AYP part number)

$

$

Not available

79

Poulan 532120199

Tube (AYP part number)

$

$

Not available

80

Poulan 532121232

Dust Cap Cover (AYP part number)

$4.99

$

In Stock, Qty 9

0
