PP 2050 - Poulan Pro Lawn Tractor FRAME, FENDER AND DRAWBAR Parts Diagram

Lawn Tractor

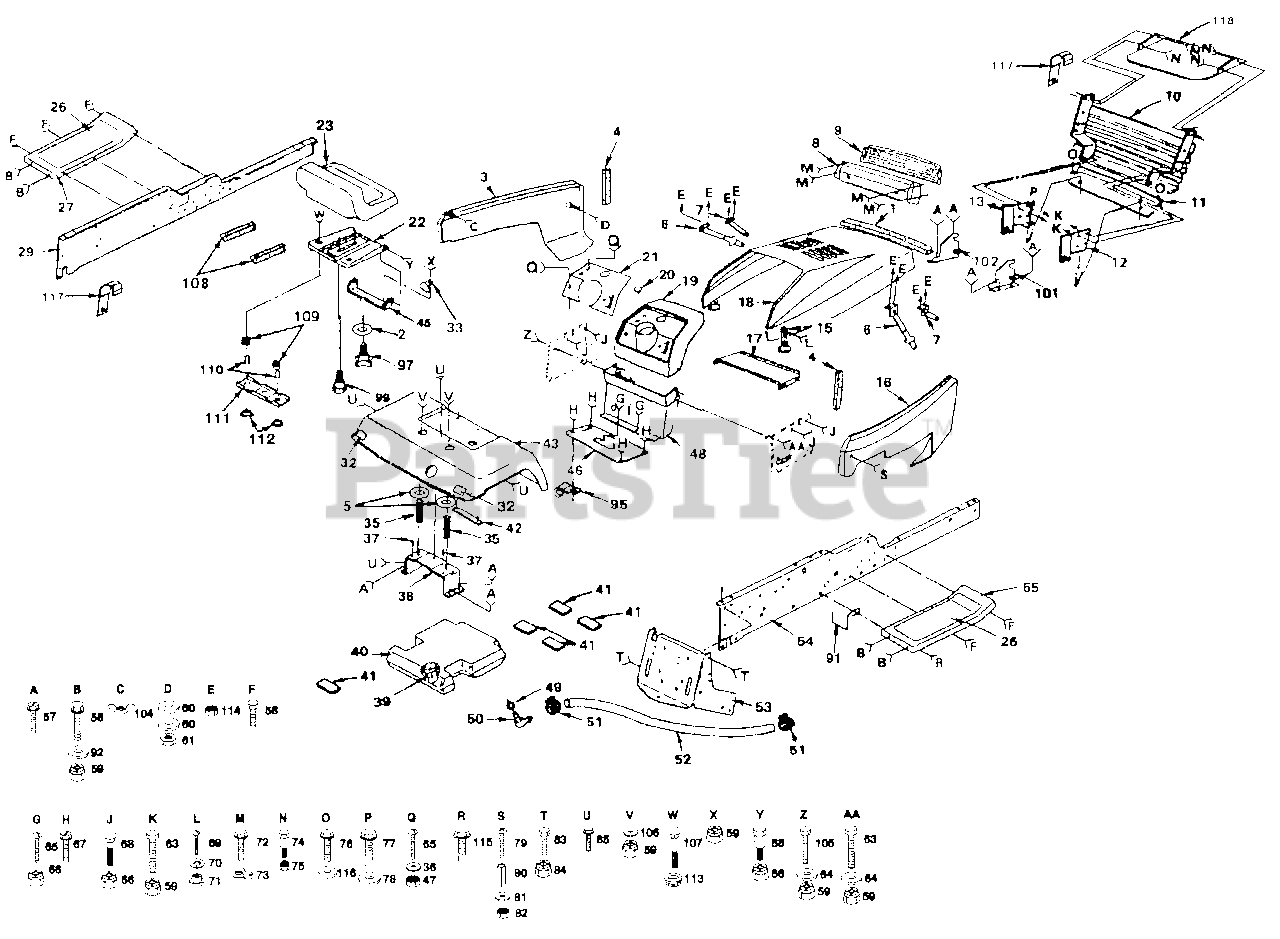

FRAME, FENDER AND DRAWBAR Parts Diagram

  • Title

1

Poulan 532109458

Strip, Foam (AYP part number)

$

$

Not available

2

Poulan 819171912

Washer 17/32 x 1-3/16 x 12 Ga. (AYP part number)

$7.49

$

In Stock, only 1 left!

0

3

Poulan 532125353

Panel-Side, L.H. (AYP part number)

$

$

Not available

4

Poulan 532106088

Strip, Foam (AYP part number)

$

$

Not available

5

Poulan 532124238

Cap, Spring (AYP part number)

$

$

Not available

6

Poulan 532106784

Strap Assembly-Hinge, Rear (AYP part number)

$

$

Not available

7

Poulan 532104618

Strap Assembly-Hinge, Front (AYP part number)

$

$

Not available

8

Poulan 532124939

Bezel Assembly
(Superseded to 583678801)

$

$

Not available

9

Poulan 532106395

Lens (AYP part number)

$

$

Not available

10

Poulan 532122100

Grill Assembly (AYP part number)
(Superseded to 122100X)

$

$

Not available

11

Poulan 532124978

Strap, Grill (AYP part number)

$

$

Not available

12

Poulan 532110854

Support, Grill, R.H. (AYP part number)

$

$

Not available

13

Poulan 532110855

Support, Grill, L.H. (AYP part number)

$

$

Not available

15

Poulan 532109808

Latch, Hood (AYP part number)

$6.99

$

In Stock, Qty 14

0

16

Poulan 532125367

Panel, Side, R.H. (AYP part number)

$

$

Not available

17

Poulan 532007985

Support, Battery (AYP part number)

$

$

Not available

18

Poulan 532124976

Hood (AYP part number)

$

$

Not available

19

Poulan 532124252

Dashboard (AYP part number)
(Superseded to 532140398)

$

$

Not available

20

Poulan 532125085

Plug, Dash (AYP part number)
(Superseded to 8022J)

$

$

Not available

21

Poulan 532125082

Dashplate (AYP part number)

$

$

Not available

22

Poulan 532131451

Pan, Seat (AYP part number)
(Superseded to 532140552)

$21.99

$

Usually ships in 3-10 days

0

23

Poulan 532127440

Seat (AYP part number)
(Superseded to 532140121)

$

$

Not available

26

Poulan 532133671

Pad, Footrest (AYP part number)

$10.99

$

Usually ships in 3-10 days

0

27

Poulan 532124888

Footrest, L.H. (AYP part number)

$

$

Not available

29

Poulan 532110893

Rail, Frame, L.H. (AYP part number)
(Superseded to 532151630)

$

$

Not available

32

Poulan 532106202

Reflector, Taillight (AYP part number)

$

$

Not available

33

Poulan 532124996

Clip, Insulated (AYP part number)
(Superseded to 532002751)

$

$

Not available

35

Poulan 532124181

Spring, Compression (AYP part number)
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

36

Poulan 819111116

Washer 11/32 x 11/16 x 16 Ga. (AYP part number)
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

37

Poulan 532105531

Nut, Push (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

38

Poulan 532105509

Bracket, Fender (AYP part number)
(Superseded to 532137113)

$14.99

$

Usually ships in 3-10 days

0

39

Poulan 532123549

Cap, Fuel (AYP part number)
(Superseded to 532158990)

$26.99

$

Usually ships in 3-10 days

0

40

Poulan 532106020

Tank, Fuel (AYP part number)

$

$

Not available

41

Poulan 532106082

Pad, Spacer (AYP part number)

$

$

Not available

42

Poulan 532105511

Strap, Fender (AYP part number)
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

43

Poulan 532124998

Fender (AYP part number)

$

$

Not available

45

Poulan 532126656

Bracket, Pivot, Seat (AYP part number)

$

$

Not available

46

Poulan 532124837

Cover, Shift-Gate (AYP part number)
(Superseded to 532106042)

$

$

Not available

47

Poulan 873510500

Nut, Keps 5/16-18 (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

48

Poulan 532104608

Dash Assembly (AYP part number)

$

$

Not available

49

Poulan 532124952

Bushing (AYP part number)
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

50

Poulan 532124951

Stem, Tank Fuel (AYP part number)
(Superseded to 532008710)

$

$

Not available

51

Poulan 532123487

Clamp, Hose (AYP part number)

$7.49

$

In Stock, only 1 left!

0

52

Poulan 532124703

Line, Fuel (AYP part number)
(Superseded to 532008542)

$

$

Not available

53

Poulan 532007982

Drawbar (AYP part number)
(Superseded to 532175282)

$

$

Not available

54

Poulan 532110892

Rail, Frame, R.H. (AYP part number)
(Superseded to 532150383)

$121.99

$

Usually ships in 3-10 days

0

55

Poulan 532124889

Footrest, R.H. (AYP part number)

$

$

Not available

57

Poulan 817490612

Screw, Hex Washer Thread Rolling 3/8-16 x 3/4 (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

58

Poulan 874760612

Bolt, Hex 3/8-16 x 3/4 (AYP part number)

$4.99

$

In Stock, only 3 left!

0

59

Poulan 873680600

Nut, Crownlock 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

60

Poulan 819091216

Washer 9/32 x 3/4 x 16 Ga. (AYP part number)
(Superseded to 596204201)

$3.99

$

In Stock, only 1 left!

0

61

Poulan 873220400

Nut, Hex 1/4-20 (AYP part number)
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

63

Poulan 874760616

Bolt, Hex 3/8-16 x 1 (AYP part number)
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

64

Poulan 819131316

Washer 13/32 x 13/16 x 16 Gauge (AYP part number)

$4.99

$

In Stock, Qty 5

0

65

Poulan 874180512

Screw, Mach. Cr., Thd. 5/16-18 x 3/4 (AYP part number)

$

$

Not available

66

Poulan 873680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

67

Poulan 817720408

Screw, Hex Washer Thd. Cutting 1/4-20 x 1/2 (AYP part number)
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

68

Poulan 872140506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

69

Poulan 874191008

Screw, Cr., Pan. Mach. #10-24 x 1/2 (AYP part number)
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

70

Poulan 810071000

Washer, Lock #10 (AYP part number)

$4.99

$

In Stock, Qty 11

0

71

Poulan 532125004

Nut, Weld (AYP part number)
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

72

Poulan 817211010

Screw, Hex Washer Hd Tap #10-16 x 5/8 (AYP part number)

$

$

Not available

73

Poulan 532104755

"J" Fastener (AYP part number)

$

$

Not available

74

Poulan 532123481

Bolt, Shoulder 1/4-20 (AYP part number)
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

75

Poulan 873680400

Nut, Crownlock 1/4-20 (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

76

Poulan 817190412

Screw, Hex Washer Thd. Roll 1/4-20 x 3/4 (AYP part number)
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

77

Poulan 817490512

Screw, Hex Washer Hd. Thd. Roll 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

78

Poulan 819111212

Washer 11/32 x 3/4 x 12 Ga. (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

79

Poulan 874981020

Screw, Mach. Cr. Pan #10-24 x 1-1/4 (AYP part number)
(Superseded to 874981024)

$9.99

$

In Stock, Qty 9

0

80

Poulan 532007206

Spacer, Split #10 x 3/4 (AYP part number)

$7.49

$

In Stock, Qty 6

0

81

Poulan 819070818

Washer 7/32 x 1/2 x 18 Ga. (AYP part number)
(Superseded to 819070816)

$6.99

$

In Stock, only 1 left!

0

82

Poulan 873731000

Nut, Keps #10-24 (AYP part number)
(Superseded to 873271000)

$2.99

$

Usually ships in 3-10 days

0

83

Poulan 874760716

Bolt, Hex 7/16-14 x 1 (AYP part number)
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

84

Poulan 873680700

Nut, Crownlock 7/16-14 (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

85

Poulan 817490608

Screw, Hex Washer Thread Rolling 3/8 x 16 x 1/2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

88

Poulan 532105529

Bolt, Shoulder (AYP part number)
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

91

Poulan 532105500

Retainer, Belt, Lower (AYP part number)

$

$

Not available

92

Poulan 819131312

Washer 13/32 x 13/16 x 17 Gauge (AYP part number)
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

95

Poulan 532128146

Clip, Insulated

$

$

Not available

97

Poulan 532120068

Knob (AYP part number)
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

99

Poulan 532127018

Bolt, Shoulder 5/16-18 x .62 (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

101

Poulan 532110853

Bracket, Assembly Pivot Frame, R.H. (AYP part number)

$

$

Not available

102

Poulan 532110852

Bracket, Assembly Pivot Frame, L.H. (AYP part number)

$

$

Not available

104

Poulan 532123198

Nut, Wing 1/4-20 (AYP part number)
(Superseded to 532146525)

$

$

Not available

105

Poulan 874760620

Bolt, Hex 3/8-16 x I-1/4 (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

106

Poulan 819131614

Washer 13/32 x 1 x 14 Gauge (AYP part number)
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

107

Poulan 872050411

Bolt, Carriage 1/4-20 x 1-3/8

$

$

Not available

108

Poulan 532121251

Foam, Strip (AYP part number)

$

$

Not available

109

Poulan 532123740

Spring, Compression (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

110

Poulan 532121249

Spacer, Split (AYP part number)

$6.49

$

In Stock, only 2 left!

0

111

Poulan 532121246

Bracket, Switch (AYP part number)
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

112

Poulan 532121248

Bushing, Snap (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

113

Poulan 532123976

Locknut, Flange 1/4-20 (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

114

Poulan 873510400

Nut, Hex 1/4-20 (AYP part number)
(Superseded to 873640400)

$

$

Not available

115

Poulan 817490616

Screw, Thrdrol. 3/8-16 x 1 (AYP part number)
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

116

Poulan 819091016

Washer 9/32 x 5/8 x 16 (AYP part number)
(Superseded to 596582301)

$3.99

$

In Stock, Qty 5

0

117

Poulan 532124967

Clip, Insulated (AYP part number)

$

$

Not available

118

Poulan 532127637

Shield, Heat, Front (AYP part number)

$

$

Not available
