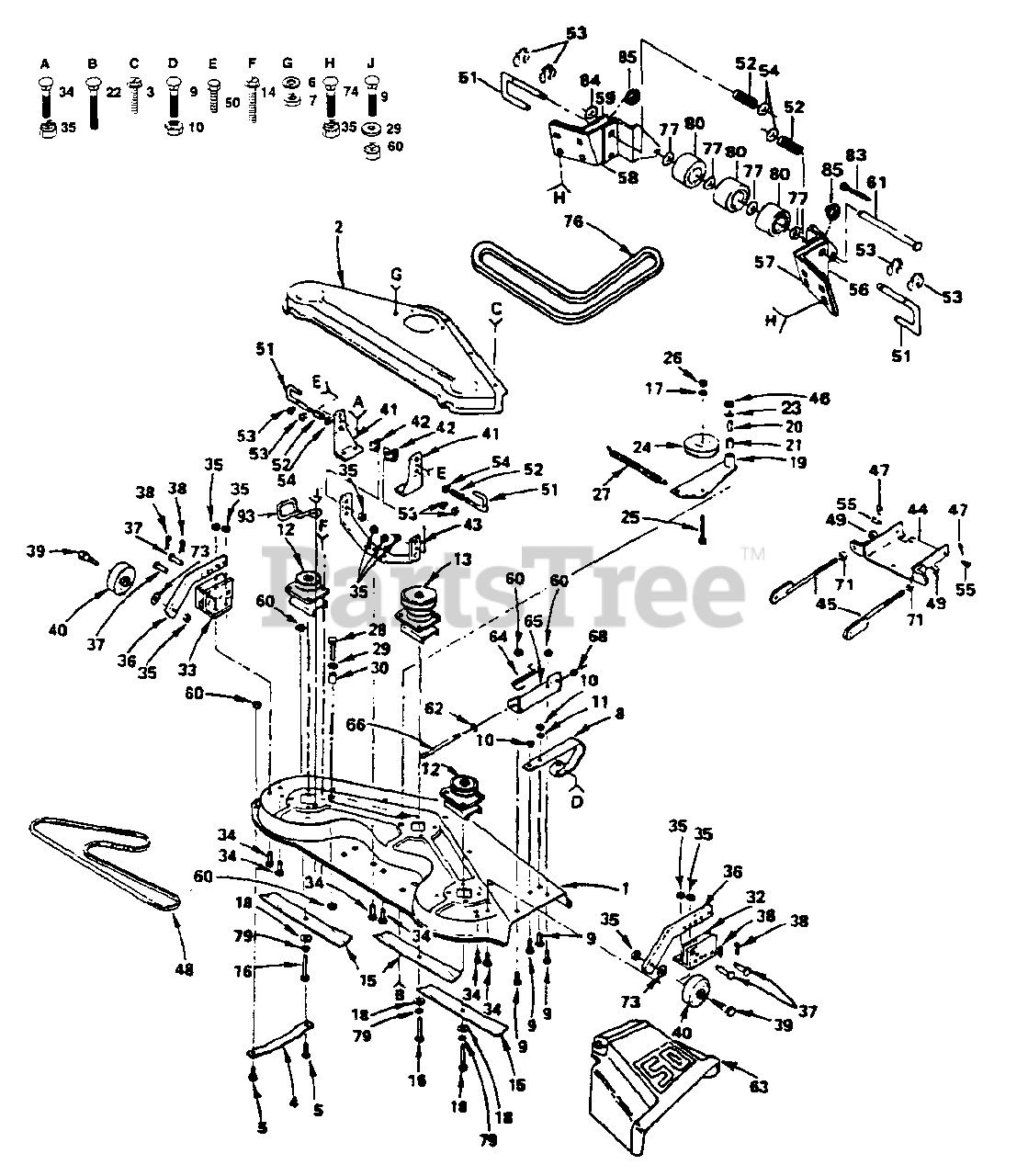

PP 2050 D - Poulan Pro Lawn Tractor MOWER 50" Parts Diagram

Lawn Tractor

MOWER 50" Parts Diagram

  • Title

1

Poulan 532121664

Housing, Mower (AYP part number)
(Superseded to 532123760)

$272.99

$

Usually ships in 3-10 days

0

2

Poulan 532121811

Cover, Drive, Deck (AYP part number)

$70.99

$

Usually ships in 3-10 days

0

3

Poulan 817490508

Screw, Hex Washer Thd. Roll 5/16-18 x 1/2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

4

Poulan 532125074

Runner, L.H. (AYP part number)
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

5

Poulan 872110505

Bolt, Carriage 5/16-18 x 5/8 (AYP part number)
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

6

Poulan 810040500

Washer, Lock 5/16 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

7

Poulan 873220500

Nut, Hex 5/16-18 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

8

Poulan 532120449

Runner, R.H. (AYP part number)
(Superseded to 532136320)

$

$

Not available

9

Poulan 872140506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

10

Poulan 532124949

Locknut 5/16-18 (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 819111116

Washer 11/32 x 11/16 x 16 Gauge (AYP part number)
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

12

Poulan 532136818

Mandrel, Secondary (AYP part number)
(Superseded to 532136819)

$

$

Not available

13

Poulan 532121617

Mandrel, Primary (AYP part number)
(Superseded to 532121657)

$

$

Not available

14

Poulan 817490612

Screw, Hex Washer Thd. Roll 3/8-16 x 3/4 (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

15

Poulan 532121798

Blade

$27.99

$

In Stock, only 2 left!

0

16

Poulan 874610624

Bolt, Hex 3/8-24 x 1-1/2 Grade 5 (AYP part number)

$6.49

$

In Stock, only 1 left!

0

17

Poulan 810040600

Washer, Lock 3/8 (AYP part number)
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

18

Poulan 819132012

Washer 13/32 x 1-1/4 x 12 Gauge (AYP part number)

$1.99

$

Usually ships in 3-10 days

0

19

Poulan 532124685

Arm Assembly, Idler (AYP part number)
(Superseded to 532674213)

$

$

Not available

20

Poulan 532124702

Liner, Bearing (AYP part number)
(Superseded to 532674308)

$

$

Not available

21

Poulan 532007835

Bearing (AYP part number)
(Superseded to 532674308)

$

$

Not available

22

Poulan 872110522

Bolt, Carriage 5/16-18 x 1-1/4 Gr. 5 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

23

Poulan 819111816

Washer 11/32 x 1-1/8 x 16 Gauge (AYP part number)

$

$

Not available

24

Poulan 532102403

Pulley, Idler (AYP part number)

$39.99

$

In Stock, only 1 left!

0

25

Poulan 874760624

Bolt, Hex 3/8-16 x 1-1/2 (AYP part number)
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

26

Poulan 873220600

Nut, Hex 3/8-16 (AYP part number)

$6.49

$

In Stock, only 2 left!

0

27

Poulan 532104361

Spring (AYP part number)

$

$

Not available

28

Poulan 874780520

Bolt, Hex 5/16-18 x 1-1/4 Grade 5 (AYP part number)
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

29

Poulan 819111216

Washer 11/32 x 3/4 x 16 Gauge (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

30

Poulan 532008438

Spacer Split (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

32

Poulan 532105448

Bracket, Ga. Wheel, R.H. (AYP part number)

$

$

Not available

33

Poulan 532105449

Bracket, Ga. Wheel, L.H. (AYP part number)

$

$

Not available

34

Poulan 872240606

Bolt, Carriage 3/8-16 x 3/4 (AYP part number)

$2.99

$

In Stock, only 2 left!

0

35

Poulan 873680600

Nut, Crownlock 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

36

Poulan 532105453

Bar, Ga. Wheel (AYP part number)

$

$

Not available

37

Poulan 532139031

Pin, Clevis (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

38

Poulan 532124670

Retainer, Spring (AYP part number)
(Superseded to 532085902)

$

$

Not available

39

Poulan 532137644

Bolt, Shoulder (AYP part number)
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

40

Poulan 532133957

Wheel, Gauge (AYP part number)

$13.99

$

In Stock, Qty 18

0

41

Poulan 532105433

Bracket, Suspension (AYP part number)

$

$

Not available

42

Poulan 532110237

Spacer (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

43

Poulan 532105434

Brace, Suspension (AYP part number)

$7.99

$

Usually ships in 3-10 days

0

44

Poulan 532140741

Plate Assembly, Mower Suspension (AYP part number)

$46.99

$

Usually ships in 3-10 days

0

45

Poulan 532109771

Bracket, Suspension (AYP part number)

$

$

Not available

46

Poulan 873350500

Nut, Hex 5/16-18 (AYP part number)

$8.99

$

Usually ships in 3-10 days

0

47

Poulan 532124660

Retainer, Spring (AYP part number)
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

48

Poulan 532003703

V-Belt (AYP part number)

$66.99

$

Usually ships in 3-10 days

0

49

Poulan 873680800

Nut, Crownlock 1/2-13 (AYP part number)
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

50

Poulan 874760622

Bolt, Hex 3/8-16 x 1-3/8 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

51

Poulan 532105435

Pin, Release (AYP part number)
(Superseded to 105435X)

$

$

Not available

52

Poulan 532003720

Spring (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

53

Poulan 812000039

Ring, Klip (AYP part number)

$6.49

$

In Stock, Qty 7

0

54

Poulan 819171612

Washer 17/32 x 5/8 x 16 Gauge (AYP part number)
(Superseded to 734117801)

$

$

Not available

55

Poulan 532105440

Pin, Clevis (AYP part number)

$

$

Not available

56

Poulan 532105458

Bracket, Outer, R.H. (AYP part number)

$

$

Not available

57

Poulan 532109773

Bracket, Inner, R.H. (AYP part number)

$

$

Not available

58

Poulan 532110997

Bracket, Inner, L.H. (AYP part number)

$

$

Not available

59

Poulan 532120000

Bracket, Outer, L.H. (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

60

Poulan 873680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

61

Poulan 532109776

Pin, Pivot (AYP part number)

$8.99

$

Usually ships in 3-10 days

0

62

Poulan 819111016

Washer 11/32 x 5/8 x 16 Gauge (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

63

Poulan 532110509

Shield, Deflector (AYP part number)

$

$

Not available

64

Poulan 532106734

Spring, Deflector (AYP part number)
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

65

Poulan 532109743

Bracket, Deflector (AYP part number)
(Superseded to 532137607)

$6.49

$

In Stock, only 2 left!

0

66

Poulan 532106735

Rod, Hinge (AYP part number)

$10.99

$

In Stock, only 1 left!

0

68

Poulan 532110452

Nut, Push (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

71

Poulan 873220800

Nut, Hex 1/2-13 (AYP part number)
(Superseded to 873350800)

$

$

Not available

73

Poulan 819171512

Washer 17/32 x 15/16 x 12 Gauge (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

74

Poulan 872240608

Bolt, Carriage 3/8-16 x 1 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

76

Poulan 532110884

V-Belt (AYP part number)

$45.99

$

In Stock, only 3 left!

0

77

Poulan 819151610

Washer 15/32 x 1 x 10 Gauge (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

79

Poulan 810030600

Washer, Lock 3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

80

Poulan 532109729

Roller, Nose (AYP part number)
(Superseded to 109729X)

$

$

Not available

83

Poulan 876020412

Pin Cotter (AYP part number)
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

84

Poulan 819151616

Washer 15/30 x 1 x 16 Gauge (AYP part number)
(Superseded to 734117801)

$

$

Not available

85

Poulan 532120135

Spacer (AYP part number)

$

$

Not available

93

Poulan 532121352

Keeper, L.H. (AYP part number)

$

$

Not available

Poulan 532138513

Deck, Complete Mower (AYP part number)

Note: Not Shown.

$

$

Not available
