PP 19H42 (960420208-00) - Poulan Pro Lawn Tractor (2017-10) DRIVE Parts Diagram

Lawn Tractor

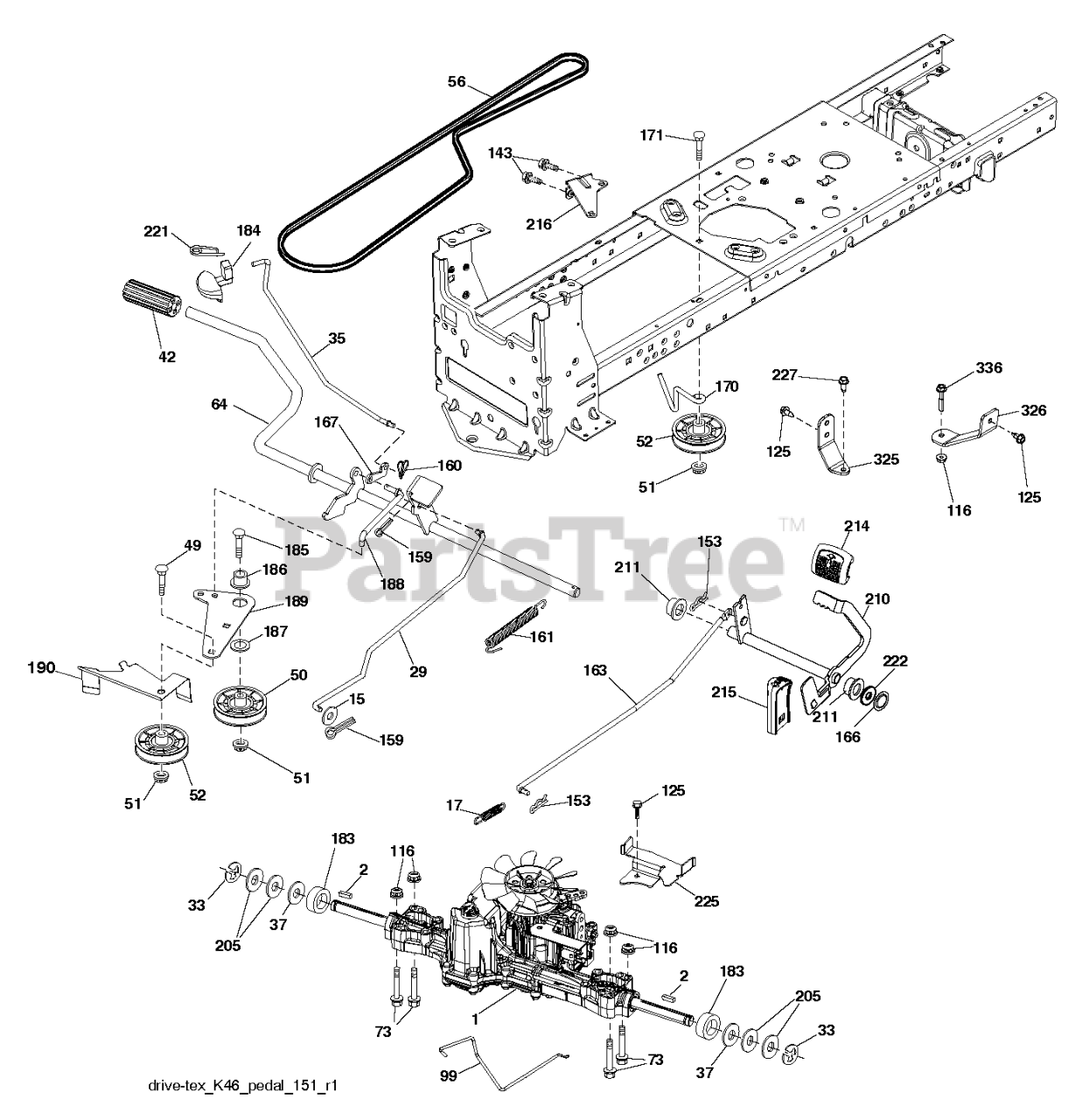

DRIVE Parts Diagram

  • Title

1

Poulan 000000000

Note: TRANSAXLE PEERLESS 206-565 (532197941)

$

$

Not available

2

Poulan 532123583

Key, Square 2.5 x .1845/.1865 (AYP part number)

$4.99

$

In Stock, only 4 left!

0

15

Poulan 819131316

Washer 13/32 x 1-3/16 x 12 Gauge (AYP part number)

Note: LEFT

$4.99

$

In Stock, Qty 5

0

17

Poulan 532413678

SPRING.BRAKE.K46.GREEN

$7.99

$

In Stock, only 1 left!

0

29

Poulan 532403806

ROD.BRAKE.K46

$31.99

$

Usually ships in 3-10 days

0

33

Poulan 812000001

E-ring #5133-75 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

35

Poulan 590605901

ROD ROD.PARKINGBRAKE.GT.HUSQ/P

$

$

Not available

37

Poulan 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

42

Poulan 532124872

Cover Pedal Blk Round (AYP part number)
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

49

Poulan 872110614

Bolt, Carriage 3/8-16 x 1-3/4 Grade 5 (AYP part number)
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0

50

Poulan 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 16

0

51

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Poulan 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

56

Poulan 532130969

V-Belt Mower 42" 92 40 (AYP part number)

$30.99

$

Usually ships in 3-10 days

0

64

Poulan 532197865

SHAFT.ASM.PEDAL.BRK.CNTR

$53.99

$

In Stock, only 1 left!

0

73

Poulan 874490540

BOLT

$4.99

$

Usually ships in 3-10 days

0

99

Poulan 532415742

ROD.SPRING.BYPASS.K46.LT.Z

$10.99

$

In Stock, only 2 left!

0

116

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

125

Poulan 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

143

Poulan 539990858

SCR 5/16-18 X 1/2 SELFTAP ZN

$3.99

$

Usually ships in 3-10 days

0

153

Poulan 532124788

Spring Retainer 1" Zinc/cad (AYP part number)
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

159

Poulan 876020412

Pin Cotter 1/8 x 3/4 CAD. (AYP part number)
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

160

Poulan 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, only 1 left!

0

161

Poulan 532105709

X Spring Return Clutch 6 75 (AYP part number)

$11.99

$

Usually ships in 3-10 days

0

163

Poulan 532448275

ROD.CONTROL.K57R.K46
(Superseded to 593861001)

$26.99

$

In Stock, only 1 left!

0

166

Poulan 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 2 left!

0

167

Poulan 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

170

Poulan 532194322

KEEPER.V-IDLER.CENTER.

$7.49

$

In Stock, only 1 left!

0

171

Poulan 872110616

Bolt, Carr. 3/8-16 x 1-3/4 Gr. 5 (AYP part number)
(Superseded to 596136301)

$3.99

$

Usually ships in 3-10 days

0

183

Poulan 532137057

SPACER AXLE

$7.49

$

In Stock, only 3 left!

0

184

Poulan 587653701

HANDLE.PARKING.BRAKE.H (BLK)
(Superseded to 532196439)

$12.99

$

In Stock, Qty 20+

0

185

Poulan 872110622

Bolt, Carriage 3/8 - 16 x 2-3/4 (AYP part number)

$4.99

$

In Stock, Qty 10

0

186

Poulan 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 9

0

187

Poulan 819133210

Washer 12/32 x 2 x 10 Gauge (AYP part number)
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

188

Poulan 582217001

LINK.CLUTCH.GROUND DRIVE.LONG
(Superseded to 532194323)

$5.99

$

In Stock, Qty 10

0

189

Poulan 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$

$

Not available

190

Poulan 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, only 2 left!

0

205

Poulan 532121748

Washer 25/32 x 1-5/8 x 16 Gauge (AYP part number)

$4.99

$

In Stock, Qty 20+

0

210

Poulan 532400980

ROCKER.ASM.PEDAL.CONTR

$37.99

$

In Stock, only 1 left!

0

211

Poulan 532120183

Bearing Nylon Blk 629 Id (AYP part number)

$6.99

$

In Stock, only 3 left!

0

214

Poulan 532421263

PEDAL.FORWARD.PAD.TEX

$8.99

$

In Stock, only 1 left!

0

215

Poulan 532401723

PEDAL.REVERSE.TEX.GT.4

$14.99

$

Usually ships in 3-10 days

0

216

Poulan 532196131

BRACKET.PULLEY.IDLER.W/TEX

$7.99

$

In Stock, only 1 left!

0

221

Poulan 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 2 left!

0

222

Poulan 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 1 left!

0

225

Poulan 532403319

KEEPER.BELT.TRANSAXLE.K46

$

$

Not available

227

Poulan 817490512

Screw, Hex Washer Head, Threaded, Rolling 5/16-18 x 3/4 Type TT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

325

Poulan 585668502

BRACKET.TRQ.STP.46.20".TIRE.LH

$

$

Not available

326

Poulan 585670802

BRCKT.PNT.TRQ.STP.46.20TIRE.RH

$

$

Not available

336

Poulan 587259601

BOLT.5/16-18X1-3/4.FLANGED.HEX
(Superseded to 587259602)

$4.99

$

In Stock, only 1 left!

0
