PP 19H42 (960420208-00) - Poulan Pro Lawn Tractor (2017-10) CHASSIS & ENCLOSURES Parts Diagram

Lawn Tractor

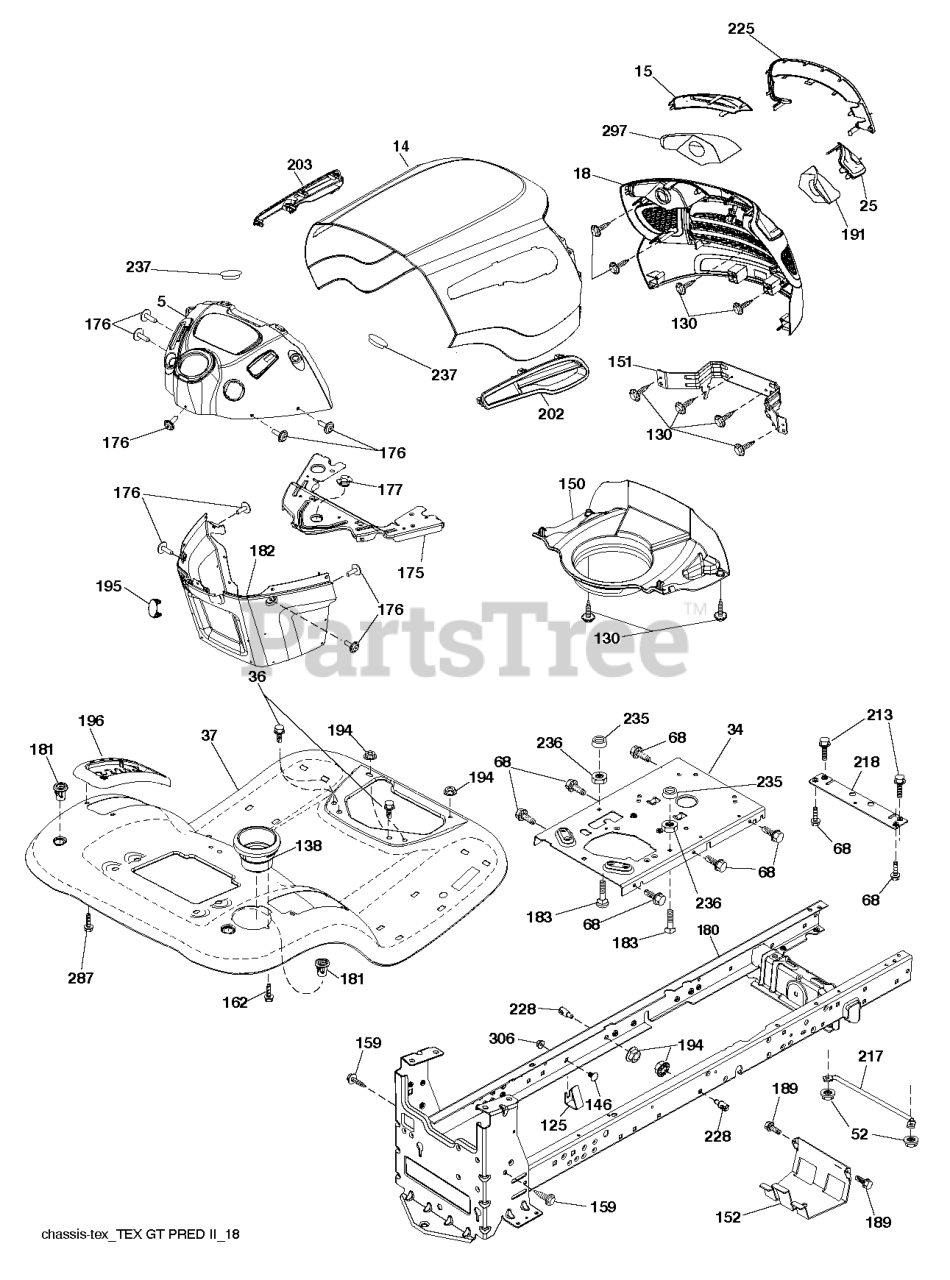

CHASSIS & ENCLOSURES Parts Diagram

  • Title
5

Poulan 532441882

DASH.UPPER.PREDATOR.M/C.BLACK

$

$

Not available

14

Poulan 532448042

HOOD.PNT.PREDATOR.YT/GT.BLACK

$125.99

$

Usually ships in 3-10 days

0

15

Poulan 581103101

LENS.MCCULLOCH.GT.LH

$11.99

$

In Stock, only 1 left!

0

18

Poulan 581102902

GRILLE.PREDGT2.GEN
(Superseded to 581176002)

$96.99

$

In Stock, only 1 left!

0

25

Poulan 581103001

LENS.MCCULLOCH.GT.RH

$13.99

$

In Stock, Qty 11

0

34

Poulan 580910801

PLATE.ENGINE.WELDED.CHASSIS

$68.99

$

In Stock, only 1 left!

0

36

Poulan 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 532420796

FENDER.TLT.W/CPH.428

$205.99

$

Usually ships in 3-10 days

0

52

Poulan 873680500

Locknut, Hex w/Insert 5/16-18 Unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

68

Poulan 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

125

Poulan 581684801

CLIP.FUEL.LINE

$3.99

$

Usually ships in 3-10 days

0

146

Poulan 581857901

BOLT.RDHD.SHT.SQNK.3/8-16X5/8

$6.49

$

Usually ships in 3-10 days

0

130

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

138

Poulan 532409730

CUPHOLDER.TL.TEX.BLACK

$7.99

$

Usually ships in 3-10 days

0

150

Poulan 584862903

AIR DUCT.HOOD.PRED YT/GT(2 2)

$31.99

$

Usually ships in 3-10 days

0

151

Poulan 532445494

BRACKET.PIVOT.PREDATOR

$34.99

$

Usually ships in 3-10 days

0

152

Poulan 532199535

SHIELD.BROWNING.W/TEX

$

$

Not available

159

Poulan 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

162

Poulan 532142432

Screw, Hex Wsh Hi-Lo 1/4-1/2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

175

Poulan 590607702

PLATE.PNT.CROSSMEMBER.HUSQ/PRE

$37.99

$

Usually ships in 3-10 days

0

176

Poulan 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

177

Poulan 532195228

BUSHING STEERING

$5.99

$

Usually ships in 3-10 days

0

180

Poulan 532195457

CHASSIS
(Superseded to 579841501)

$250.99

$

Usually ships in 3-10 days

0

181

Poulan 532404796

FEND/FTRST.PCH.CPH.NFW
(Superseded to 532403025)

$

$

Not available

182

Poulan 586738602

DASH LOWER.HUSQ.PRED NO CRUISE

$68.99

$

Usually ships in 3-10 days

0

183

Poulan 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

189

Poulan 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

191

Poulan 581223501

REFLECTOR.MCCULLOCH.GT.RH

$15.99

$

Usually ships in 3-10 days

0

194

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

195

Poulan 532404137

PLUG.HOLE.DASH.LOWER.12V.BLK

$6.49

$

Usually ships in 3-10 days

0

196

Poulan 532414581

CONSOLE.ASM.DECKLFT.BL/YBT.TLT
(Superseded to 583351401)

$37.99

$

Usually ships in 3-10 days

0

202

Poulan 581859201

VENT.SIDE.HOOD.LH.PREDATOR.BLK

$

$

Not available

203

Poulan 501510102

VENT.SIDE.HOOD.LH.PREDATOR

$20.99

$

Usually ships in 3-10 days

0

213

Poulan 874760512

Bolt, Hex Head 5/16-18 UNC x 3/4 (AYP part number)
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

217

Poulan 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

218

Poulan 532196395

X-PIECE.HOOD.STOP.NON/

$7.99

$

Usually ships in 3-10 days

0

225

Poulan 581103201

TRIM.RING.MCCULLOCH.GT
(Superseded to 581176002)

$96.99

$

In Stock, only 1 left!

0

228

Poulan 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

235

Poulan 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Poulan 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

237

Poulan 532403704

PLUG.MOUNT.CARGO.BLK

$4.99

$

Usually ships in 3-10 days

0

287

Poulan 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

0

297

Poulan 581223601

REFLECTOR.MCCULLOCH.GT.LH

$3.99

$

Usually ships in 3-10 days

0

306

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

- -

Poulan 532441126

PLUG.DASH.SRVMNDR.TEX.PRED/HUS

$6.99

$

Usually ships in 3-10 days

0
