PP 19A42 (960480091-01) - Poulan Pro Lawn Tractor (2016-09) SEAT Parts Diagram

Lawn Tractor

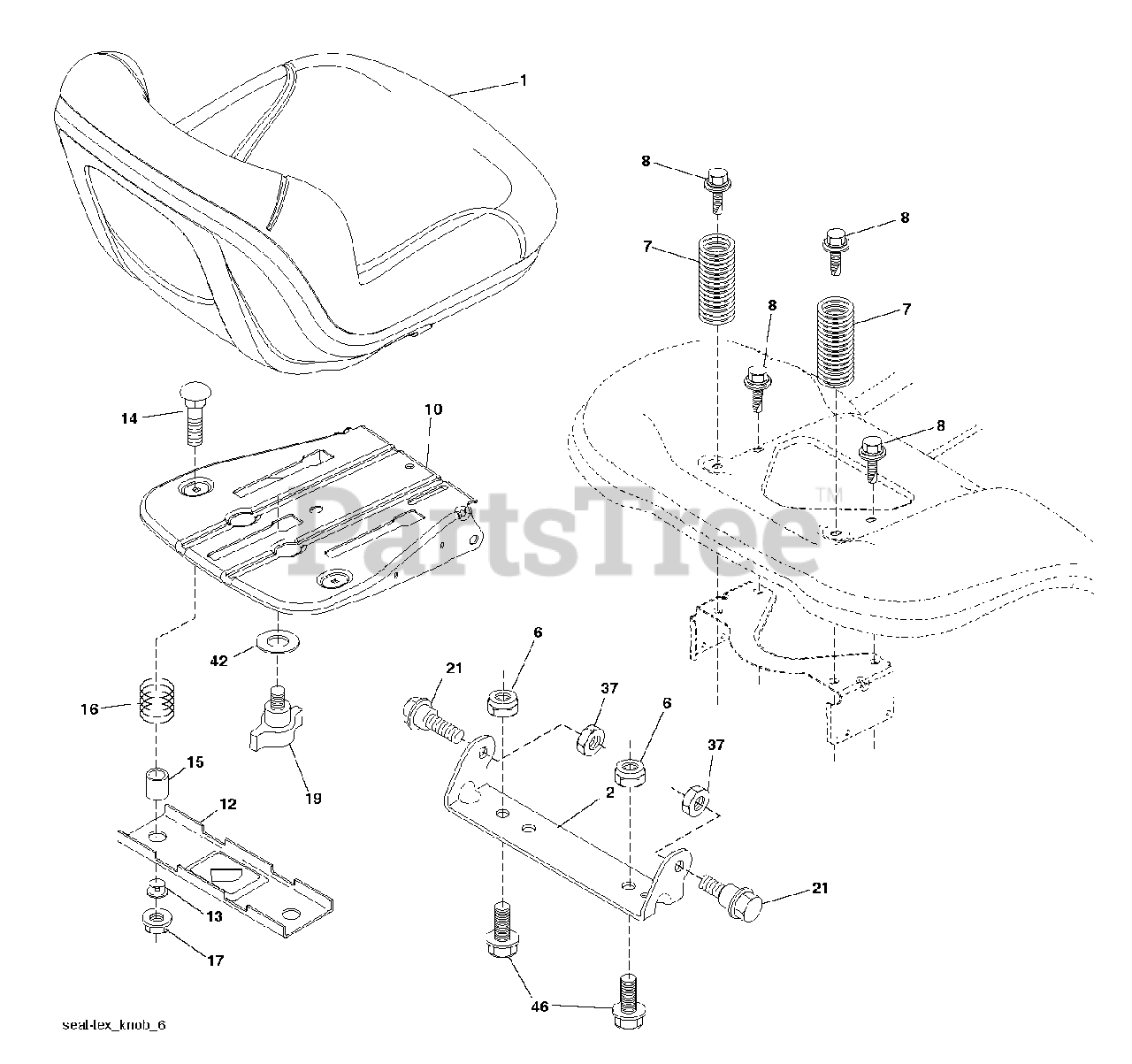

SEAT Parts Diagram

  • Title

1

Poulan 532197514

(Superseded to 583239201)

$250.99

$

Usually ships in 3-10 days

0

2

Poulan 532180166

BRKT.PIVOT.FENDER

$13.99

$

In Stock, only 1 left!

0

6

Poulan 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 587613301

Compression Spring, Seat Black

$6.99

$

In Stock, only 3 left!

0

8

Poulan 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 6

0

10

Poulan 532441805

PAN.ASM.SEAT.SHORT.SLD.ADJ.TEX

$56.99

$

Usually ships in 3-10 days

0

12

Poulan 532199370

BRKT.MNT.OPC.SW.SEAT.

$11.99

$

Usually ships in 3-10 days

0

13

Poulan 532121248

BUSHING

$6.49

$

Usually ships in 3-10 days

0

14

Poulan 872050412

BOLT.ROUND.HEAD.SQUARE.NECK

$6.49

$

Usually ships in 3-10 days

0

15

Poulan 532134300

SPACER SPLIT 28X.96

$7.49

$

Usually ships in 3-10 days

0

16

Poulan 532123740

SPRING COMPRESSED

$6.49

$

Usually ships in 3-10 days

0

17

Poulan 532123976

NUT T
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

19

Poulan 532199372

KNOB.SEAT.ADJ.

$8.99

$

In Stock, only 2 left!

0

21

Poulan 587907801

Shoulder Bolt, 5/16-18 X 5/8

$4.99

$

In Stock, Qty 8

0

37

Poulan 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

42

Poulan 532199371

WASHER.CUP.SEAT.

$4.99

$

Usually ships in 3-10 days

0

46

Poulan 588090401

BOLT.3/8-16X1;1.25OD.WSHR.SEMS

$6.99

$

Usually ships in 3-10 days

0
